Product Description
Greenlee Dvi-100T/K02 Dvi-100T Kit W/Hp-Dvi-2, Iep-Dvi-5, Pt 783310054924/52074188
Greenlee Dvi-100T/K02
Dvi-100T Kit W/Hp-Dvi-2, Iep-Dvi-5, Pt 783310054924/52074188
Digital Voltage Indicator W/Test Point 100Kv, Oh/Ug Kit 2
Measures Voltage Up To 99Kv Line-To-Ground
Voltage Readout Distinguishes Between Nominal And Induced Voltages
Audible Indication When Voltage Is Detected
Test Point Mode
Auto-Shutoff And Low Battery Indication Features
Versatile For Overhead And Underground Applications
Specifications
Sub Brand Hde
Type Digital Voltage Indicator
Model Dvi-100T
Voltage Rating 100V - 99Kv Line-To-Ground
Accuracy Laboratory Calibrated To +/-3%. Typical Overhead Line In Compact Overhead Three Phase +/-10%. Other Applications Up To +/-25%
Display Led Display
Operating Temperature -20�F To +140�F (-29�C To +60�C)
Dimensions 4.25"H X 7"W X 4.5"D (11 Cm X 18 Cm X 11 Cm)
Frequency Rating Ac 60Hz (50Hz Model Available)

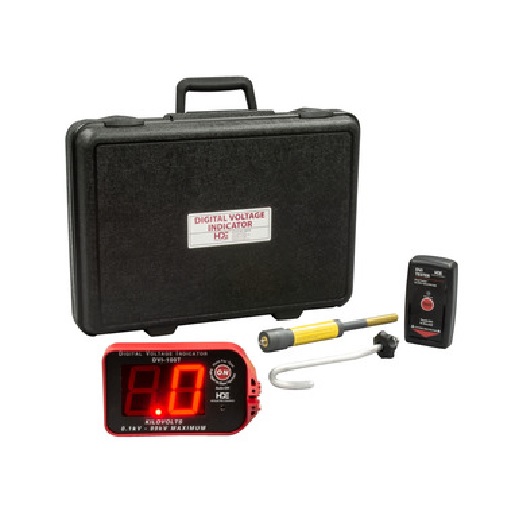

Included Dvi-100T, Hp-Dvi-2 2" Overhead Hook Probe, Iep-Dvi-5 Underground Bushing Probe, Pt-Dvi Proof Tester Proof Tester, Cs-Dvi Plastic CaseRead More
