GREENLEE CTF-EXTKIT EXTENDED MOUNT ACCESSORY KIT 783310052111/52075795
Available*
Item # 79990418
Model # 783310052111
$1,123.94
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

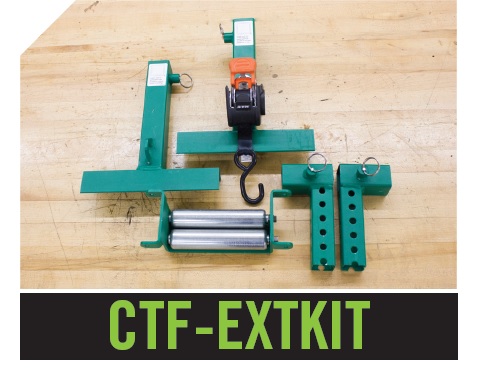

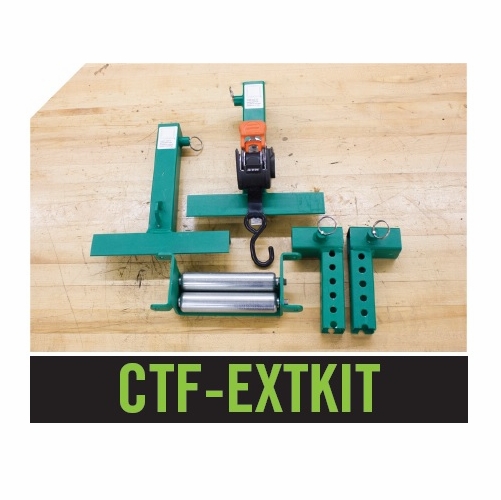

GREENLEE CTF-EXTKIT EXTENDED MOUNT ACCESSORY KIT 783310052111/52075795
GREENLEE CTF-EXTKIT EXTENDED MOUNT ACCESSORY KIT 783310052111/52075795
Quick attachment of adjustable legs and extended idler roller frame to CTF-200 using detained pins Height of legs are adjustable by 1" (25.4 mm) increments 2" (50.8 mm) - 4" (101.6mm) idler roller frame comes with 2 heavy duty conveyer rollers Adjustable legs to fit onto tray width sizes of 18" (457.2 mm) to 36" (914.4 mm) Over-Tray mounting systems allows cable to be placed in tray without taking up space Quick release system utilizes 360° swivel and no loose pieces to easily remove cable Designed and assembled in USA
Specifications Application Used to provide a larger idler roller frame and to make the mounting legs adjustable of Cable Tray Feeder (CTF-200). Using this kit will allow the CTF-200 to feed cable in outer diameter size of 2'' (50.8 mm) up to 4'' (101.6 mm). The adjustable legs allow the feeder to be seated an additional 2'' (50.8 mm) above the tray compared to the standard legs of the CTF-200. Cable Capacity From 2'' (50.8 mm) up to 4'' (101.6 mm) in outer diameter Height Legs: 16-1/2'' (419.1 mm) Idler Roller: 3-1/2'' (88.9 mm) Length Legs: 10'' (254 mm) Idler Roller: 9-5/8'' (244.4 mm) Overall Height Legs: 16-1/2'' (419.1 mm) Idler Roller: 3-1/2'' (88.9 MM) Overall Length Legs: 10'' (254 mm) Idler Roller: 9-5/8 '' (244.4 mm) Pulling Force Attached to CTF-200 the kit will allow the user to feed up to 200 lb (90 kg) Roller Opening Size 2'' - 4'' (50.8 mm - 101.6 mm) Weight Legs: 9.7 lbs (4.4 kg) Weight Idler Roller: 4.25 lbs (1.9 kg) Width Legs: 5-3/4'' (146.1 mm) Idler Roller: 3-7/8 '' (98.4 mm)
GREENLEE CTF-EXTKIT EXTENDED MOUNT ACCESSORY KIT 783310052111/52075795
Quick attachment of adjustable legs and extended idler roller frame to CTF-200 using detained pins Height of legs are adjustable by 1" (25.4 mm) increments 2" (50.8 mm) - 4" (101.6mm) idler roller frame comes with 2 heavy duty conveyer rollers Adjustable legs to fit onto tray width sizes of 18" (457.2 mm) to 36" (914.4 mm) Over-Tray mounting systems allows cable to be placed in tray without taking up space Quick release system utilizes 360° swivel and no loose pieces to easily remove cable Designed and assembled in USA
Specifications Application Used to provide a larger idler roller frame and to make the mounting legs adjustable of Cable Tray Feeder (CTF-200). Using this kit will allow the CTF-200 to feed cable in outer diameter size of 2'' (50.8 mm) up to 4'' (101.6 mm). The adjustable legs allow the feeder to be seated an additional 2'' (50.8 mm) above the tray compared to the standard legs of the CTF-200. Cable Capacity From 2'' (50.8 mm) up to 4'' (101.6 mm) in outer diameter Height Legs: 16-1/2'' (419.1 mm) Idler Roller: 3-1/2'' (88.9 mm) Length Legs: 10'' (254 mm) Idler Roller: 9-5/8'' (244.4 mm) Overall Height Legs: 16-1/2'' (419.1 mm) Idler Roller: 3-1/2'' (88.9 MM) Overall Length Legs: 10'' (254 mm) Idler Roller: 9-5/8 '' (244.4 mm) Pulling Force Attached to CTF-200 the kit will allow the user to feed up to 200 lb (90 kg) Roller Opening Size 2'' - 4'' (50.8 mm - 101.6 mm) Weight Legs: 9.7 lbs (4.4 kg) Weight Idler Roller: 4.25 lbs (1.9 kg) Width Legs: 5-3/4'' (146.1 mm) Idler Roller: 3-7/8 '' (98.4 mm)
