GREENLEE 08280 CART COMPONENTS KIT 783310082804/52084468
Available*
Item # 79989952
Model # 783310082804
$296.92
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE 08280 CART COMPONENTS KIT 783310082804/52084468
GREENLEE 08280 CART COMPONENTS KIT 783310082804/52084468

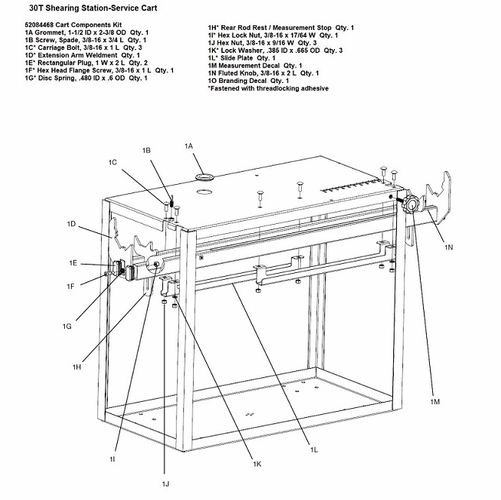

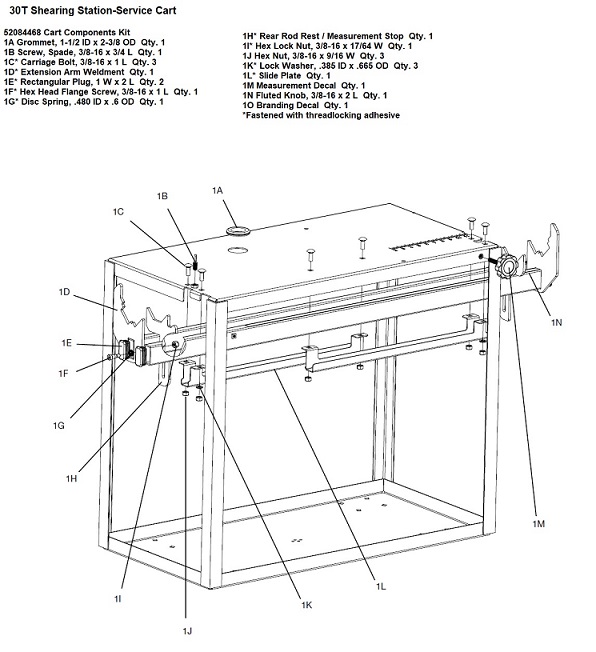

52084468 Cart Components Kit 1A Grommet, 1-1/2 ID x 2-3/8 OD Qty. 1 1B Screw, Spade, 3/8-16 x 3/4 L Qty. 1 1C* Carriage Bolt, 3/8-16 x 1 L Qty. 3 1D* Extension Arm Weldment Qty. 1 1E* Rectangular Plug, 1 W x 2 L Qty. 2 1F* Hex Head Flange Screw, 3/8-16 x 1 L Qty. 1 1G* Disc Spring, .480 ID x .6 OD Qty. 1 1H* Rear Rod Rest / Measurement Stop Qty. 1 1I* Hex Lock Nut, 3/8-16 x 17/64 W Qty. 1 1J Hex Nut, 3/8-16 x 9/16 W Qty. 3 1K* Lock Washer, .385 ID x .665 OD Qty. 3 1L* Slide Plate Qty. 1 1M Measurement Decal Qty. 1 1N Fluted Knob, 3/8-16 x 2 L Qty. 1 1O Branding Decal Qty. 1 *Fastened with threadlocking adhesive
Used with Shear 30T Shearing Station-Service Cart
GREENLEE 08280 CART COMPONENTS KIT 783310082804/52084468
52084468 Cart Components Kit 1A Grommet, 1-1/2 ID x 2-3/8 OD Qty. 1 1B Screw, Spade, 3/8-16 x 3/4 L Qty. 1 1C* Carriage Bolt, 3/8-16 x 1 L Qty. 3 1D* Extension Arm Weldment Qty. 1 1E* Rectangular Plug, 1 W x 2 L Qty. 2 1F* Hex Head Flange Screw, 3/8-16 x 1 L Qty. 1 1G* Disc Spring, .480 ID x .6 OD Qty. 1 1H* Rear Rod Rest / Measurement Stop Qty. 1 1I* Hex Lock Nut, 3/8-16 x 17/64 W Qty. 1 1J Hex Nut, 3/8-16 x 9/16 W Qty. 3 1K* Lock Washer, .385 ID x .665 OD Qty. 3 1L* Slide Plate Qty. 1 1M Measurement Decal Qty. 1 1N Fluted Knob, 3/8-16 x 2 L Qty. 1 1O Branding Decal Qty. 1 *Fastened with threadlocking adhesive
Used with Shear 30T Shearing Station-Service Cart
