RENT 3M DYNATEL 965 RENTAL PER MONTH
Available*
Item # 621800000
Model # 965
$210.01
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
965 Dspa
Rental Equipment
Subscriber Loop Tester
Combination
3M
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

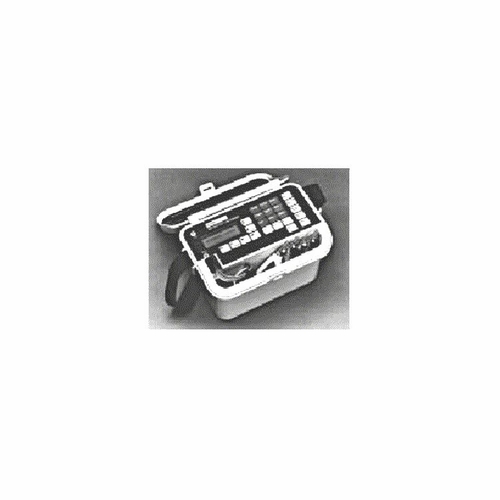

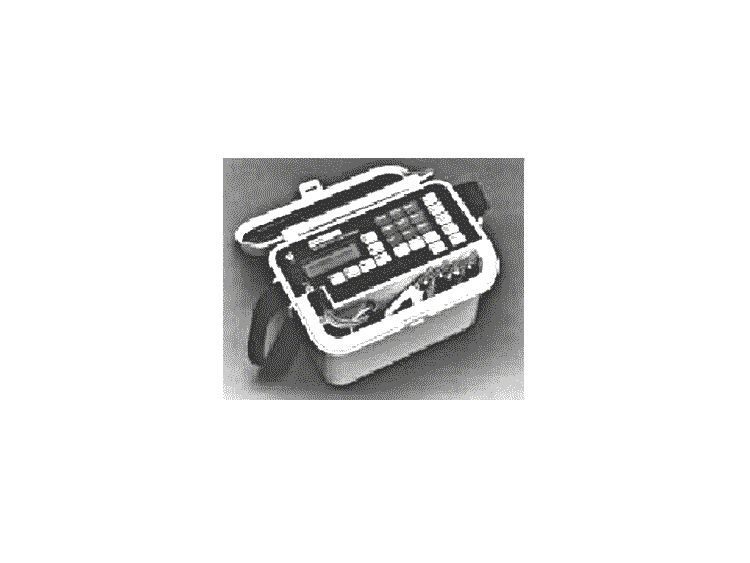

RENT 3M DYNATEL 965 RENTAL PER MONTH The Dynatel 965 subscriber loop analyzer performs all the tests needed to analyze and troubleshoot the subscriber loop, as well as cable plant in a single, portable unit. In addition, the 965 uses combinations of its test measurements in automatic functions called DC Line Test and AC Line Test, which interpret results and lead the operator toward possible solutions to complex cable problems.
Specifications for 965 Subscriber Loop Analyzer Measures opens 0-100k feet, Counts loads up 0-5, voltage 0-250 VAC, 0-350 VDC, current 0-110 mA DC, Resistance 0-100 Mega o hms ohms, Noise metallic 10-50 dBrnC, Noise to ground 40-100 dBrnC, Frequency counter 20-20000 Hz, Ground resistance 0-500 ohms, Loop and CO resistance 0-5k ohms, Resistance fault locate 0-30 Megohms, Temperature sensor 0°-140°F, Noise immunity 7 Vac , Precision tones 404, 1004, 2804 Hz Tracing tone 577.5 Hz, Harmonic distortion <45 dB (up to 10th harmonic), Variable source 50 Hz to 10 kHz, operates on 5 C cell alkaline or rechargeable NiCd batteries. Typical battery life No backlight 40 hrs NiCd -120 hrs alkaline, With backlight 12 hrs NiCd- 35 hrs alkaline, Size H x W x D 7.0 x 10.5 x 7.5 , 5 ft cord, Net weight lbs.7.5, Operating temperature 0° to 140°F , Relative humidity 0-100% condensing, Operating altitude 0-15,000 ft.
5 "C" cell batteries
Specifications for 965 Subscriber Loop Analyzer Measures opens 0-100k feet, Counts loads up 0-5, voltage 0-250 VAC, 0-350 VDC, current 0-110 mA DC, Resistance 0-100 Mega o hms ohms, Noise metallic 10-50 dBrnC, Noise to ground 40-100 dBrnC, Frequency counter 20-20000 Hz, Ground resistance 0-500 ohms, Loop and CO resistance 0-5k ohms, Resistance fault locate 0-30 Megohms, Temperature sensor 0°-140°F, Noise immunity 7 Vac , Precision tones 404, 1004, 2804 Hz Tracing tone 577.5 Hz, Harmonic distortion <45 dB (up to 10th harmonic), Variable source 50 Hz to 10 kHz, operates on 5 C cell alkaline or rechargeable NiCd batteries. Typical battery life No backlight 40 hrs NiCd -120 hrs alkaline, With backlight 12 hrs NiCd- 35 hrs alkaline, Size H x W x D 7.0 x 10.5 x 7.5 , 5 ft cord, Net weight lbs.7.5, Operating temperature 0° to 140°F , Relative humidity 0-100% condensing, Operating altitude 0-15,000 ft.
5 "C" cell batteries
