Item# 58990000

CONNECTORSMaterial and SuppliesConnectors-TerminatorsPica Bonds- AmpsTYCO TELECOMMUNICATIONS
CA Prop 65 Warning Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to

Product Description

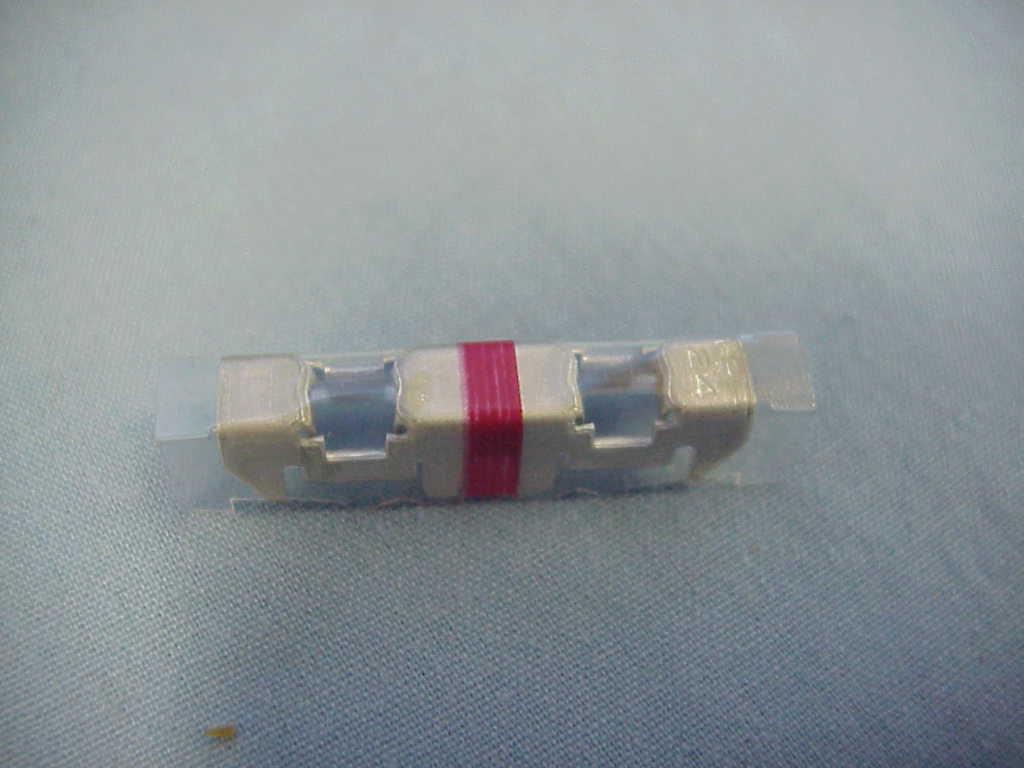

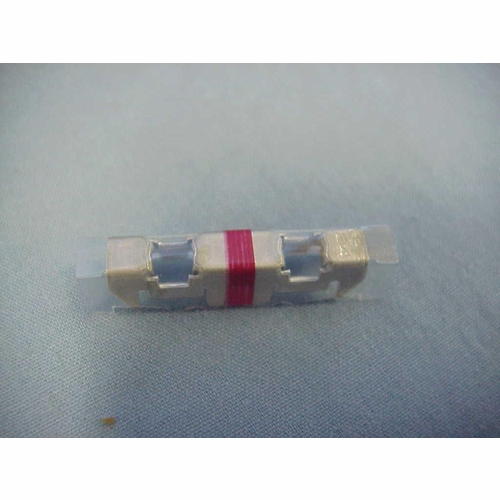

AMP 60947-3 RED PICABONDS CONNECTOR pack of 1000 NEW AMP PICABOND Connectors provide an economical and reliable means of splicing multi-conductors telephone cable. The bodies are manufactured from tin-plated phosphor bronze with bonded polyester insulation. Color coding of the insulation is provided to denote wire size and weather-resistant type. Any solid colored wire, 19 to 26 AWG [.9-.3mm], with pulp, paper or plastic insulation can be spliced. Lightweight and compact, PICABOND Splices reduce the space required overother splicing techniques by up to 33%. Straight, butt, tap and bridge splices can be made with these connectors. Tapping may even be accomplished without interrupting service, thereby eliminating costly turndowns. In addition to the regular PICABOND Connectors, Mini-Connectors, Weather Resistant Connectors and Load Coil Connectors are available. PICABOND Mini- Connectors have the same basic features as the regular connectors and are designed for straight splicing only of wire sizes 19 to 26 AWG [.9-.3]. Regular and Mini-Connectors are available With a water-resistant feature which prevents degradation of the electrical contact area caused by environmental contamination. PICABOND Load Coil Connectors are designed primarily to simplify the termination of load coil stub cables with the transmission line. This connector will terminate both in and the out line which previously required two connectors. AMP PICABOND Connectors and application tooling incorporate the insulation displacement termination technique which uses a slotted, tin-plated contact to displace the insulation on the conductor, providing four redundant electrical contact points. A minimal amount of training is required to apply all PICABOND Connectors. Time is kept to a minimum by eliminating the need for prestripping or cutting wire. The final termination is a gas-tight, compact splice -all with maximum applied cost savings. A variety of tools and accessories are available to meet your specific splicing needs in underground, buried and aerial spicing applications, as well as pedestals and ready access closures, Further applications for PICABOND connectors and tools can be found for many types of jelly-filled cables -- consult AMP incorporated. Dimensioning:Dimensions are in inches and millimeters. Values below bold type are metric equivalents, Metric symbols used: mm (millimeter) mm2 (square millimeter) Specifications subject to change. Consult AMP Incorporated for latest design specifications. Dry connectors for 24-19 ga wire.

If items is in stock it will ship same day- Images may not be of the actual item being sold.
