Gmp 17078 Plug Modular 2X6 100/Pk

General Machine Products 17078 Plug Modular 2X6 100/Pk Modular Plugs

These Rugged, Dependable Plugs Are Specially Manufactured To Exacting General Machine Products Standards For Highest Possible Quality And Performance.

Each Ul-Listed Plug Is Molded From Fire-Resistant, Translucent Polycarbonate That'S Either Clear Or Color Tinted For Fast Application Identification

The Phosphor-Bronze Contacts Are Plated With 50 Micro Inches (2 Microns) Of Pure Gold, Then Polished To A High Luster. This Is The Highest Gold Content Currently Available In Modular Plugs.

Note: High Gold Content In A Modular Plug Is Key To Corrosion Resistance.

The Gold, Extra-Conductive, Corrosion-Resistant Mating Surface Helps Minimize Contact Abrasion During Insertion And Removal

For Tinsel/Stranded Cordage: Insulated Conductor Diameter: .038 In. (.96 Mm) Clear Plugs, Weight: 1 Lb. (454 G)

Plug Ordering Information (Stranded Cordage)

P/N Configuration

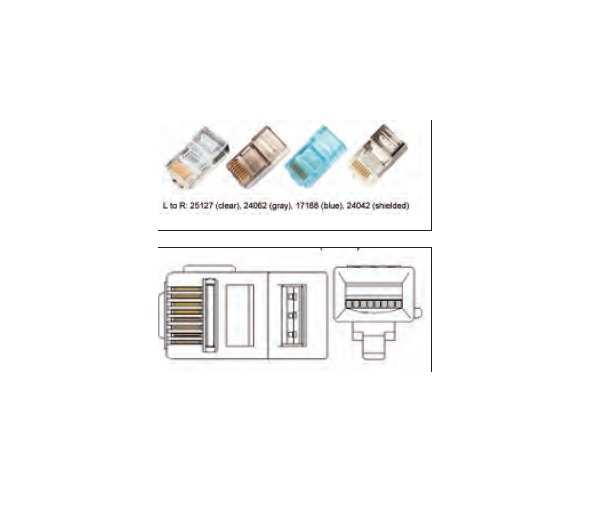

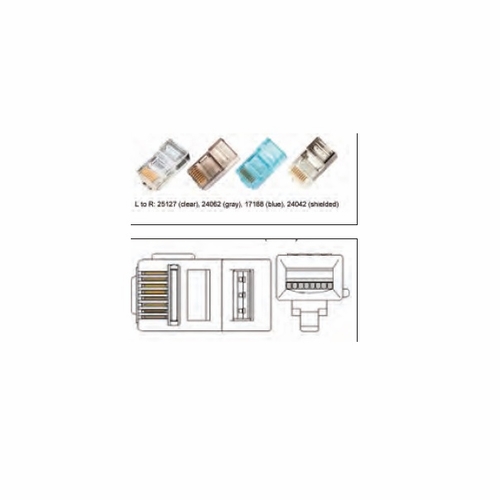

17074 4-Contact X 4-Position (4 X 4) Handset Plugs 100/Pkg. 17078 2-Contact X 6-Position (2 X 6) Rj11 Line Cord Plugs 100/Pkg. 17075 4-Contact X 6-Position (4 X 6) Rj11 Line Cord Plugs 100/Pkg. 17076 6-Contact X 6-Position (6 X 6) Rj11 Line Cord Plugs 100/Pkg. 17077 8-Contact X 8-Position (8 X 8) Rj45 Non-Keyed Line Cord Plugs 100/Pkg. 17043 8-Contact X 8-Position (8 X 8) Rj45 Keyed Line Cord Plugs 100/Pkg. 25125 10-Contact X 10-Position (10 X 10) Rj45 Keyed Left Line Cord Plugs 25/Pkg. 25126 10-Contact X 10-Position (10 X 10) Rj45 Keyed Right Line Cord Plugs 25/Pkg. 25127 10-Contact X 10-Position (10 X 10) Rj45 Non-Keyed Line Cord Plugs 25/Pkg.

--------------------------------------------------------------------------------

For Solid Wire: Insulated Conductor Diameter: .038 In. (.96 Mm) Grey Plugs, 100/Pkg. Weight: 1 Lb. (454 G)

24061 3-Pair 22/24 Awg Rj11 Plugs 24062 4-Pair 22/24 Awg Rj45 Plugs

For D Inside Wire & Plenum: Insulated Conductor Diameter: .033 In. (.84 Mm) Blue Plugs, 100/Pkg. Weight: 1 Lb. (454 G)

17188 4-Pair 24 Awg Rj45 Plugs

For Shielded Twisted Pair (Stp): Insulated Conductor Diameter: .038 In. (.96 Mm) Clear/Metallic Plugs, 25/Pkg. Weight: 4 Oz. (113G)

24042 4-Pair Rj45 Stp Plugs (Cat 5, 5E Or 6) (Use With S8 Die)

For Category 5, 5E & 6 Unshielded Twisted Pair (Utp): Insulated Conductor Diameter .042 In. (1.06 Mm) Clear Plugs, 100/Pkg. Weight: 1 Lb. (454 G)

24065 8-Contact Cat. 6 Plug With Separate Conductor Alignment Bar For Precise Wire Loading (Use With B8 Die)

For Dec Data Cable: Insulated Conductor Diameter: .040 In. (1.00 Mm) Clear Plugs, 100/Pkg. Weight: 1 Lb. (454 G)

17090 6-Contact X 6-Position Mmj PlugRead More
