TYCO 1-737707-2 AMP STACK III MODULAR CONNECTOR CASE/120 ***LIKE 4005DPM/TR MS2***
Available*
Item # 58420100
Model # 1-737707-2
$68.25
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Connectors
Material and Supplies
Connectors-Terminators
MS2 25 Pair Modular
Tyco Telecommunications
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

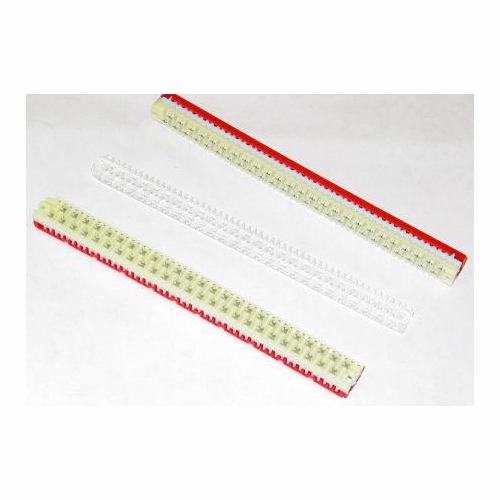

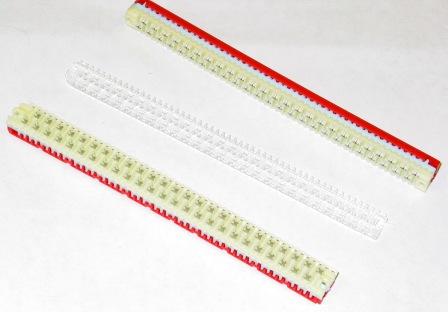

TYCO TELECOMMUNICATIONS (COMMSCOPE)Connector Amp Stack Mark III 25 Pair Dry Pluggable/Bridge Copper Transparent Cover
The AMP STACK MARK III 25 pair connectors are designed to mass terminate communication cables of solid copper or aluminum conductor wires ranging from 0.32 to 0.8 mm of diameter, (28 to 20 AWG). The connectors are equipped with insulation displacement tin plated contacts that provide a gas-tight termination and cover different insulation types like pulp, paper or plastic up to 1.65 mm. external diameter. The product line includes dry testing and pre-ealed versions.
Product Features Connectors for straight splicing and tapping of communication cables Pluggable/bridge module to connect/disconnect modules Dry testing versions available for simultaneous electrical testing during application Pre-sealed versions with sealing gel for environmentally protected connections Plastic adapter to correctly place the connector in the crimping tool is included in the packaging.
Materials Housing, cover and base: polycarbonate Contacts: phosphor bronze, tin plated Cut-of blade: stainless steel Application tooling plastic adapter: ABS
Standard package 12 modules per bag 120 modules per box
Technical documents Product specifications Straight splicing and half-tap modules: 108-22038 (25 pair connectors) 108-22079 (25 pair sealant box)
Pluggable/bridge module: 108-22047 Pre-sealed modules:108-22068 (25 pair connectors)
Application specification AMP STACK MARK III 25 pair: 114-22006 (25 pair connectors) 114-22005 (20 pair connectors) 114-22004 (10 pair connectors) 114-22010 (25 pair sealant box) 411-22020 (25 pair sealant box) 411-22044 (25 pair connectors tooling kit)
Product Type Features: Product Type = Connector Connector Type = Plug Insulation Diameter (mm [in]) = 1.65 [.065] Max. Proprietary Name = AMP STACK Mark III Comment = Components consist of Protector, Body Assembly and Cover.
Mechanical Attachment: Number of Pairs = 25
Body Related Features: Wire Range (mm [AWG]) = 0.08-0.60; [28-20] Connector Module Color = Red/ Light Blue-Ivory/ Transparent Cutoff Blade Material = Stainless Steel
Contact Related Features: Contact Material = Phosphor Bronze Contact Mating Area Plating Material = Tin
Housing Related Features: Housing Material = Polycarbonate
Industry Standards: RoHS/ELV Compliance = RoHS compliant, ELV compliant Lead Free Solder Processes = Not reviewed for lead free solder process RoHS/ELV Compliance History = Always was RoHS compliant
Conditions for Usage: Connector Module Type = Dry/Test
Packaging Related Features: Packaging Quantity = 12 Packaging Method = Bag
Other: Brand = TYCO TELECOMMUNICATIONS (COMMSCOPE)Electronics
The AMP STACK MARK III 25 pair connectors are designed to mass terminate communication cables of solid copper or aluminum conductor wires ranging from 0.32 to 0.8 mm of diameter, (28 to 20 AWG). The connectors are equipped with insulation displacement tin plated contacts that provide a gas-tight termination and cover different insulation types like pulp, paper or plastic up to 1.65 mm. external diameter. The product line includes dry testing and pre-ealed versions.
Product Features Connectors for straight splicing and tapping of communication cables Pluggable/bridge module to connect/disconnect modules Dry testing versions available for simultaneous electrical testing during application Pre-sealed versions with sealing gel for environmentally protected connections Plastic adapter to correctly place the connector in the crimping tool is included in the packaging.
Materials Housing, cover and base: polycarbonate Contacts: phosphor bronze, tin plated Cut-of blade: stainless steel Application tooling plastic adapter: ABS
Standard package 12 modules per bag 120 modules per box
Technical documents Product specifications Straight splicing and half-tap modules: 108-22038 (25 pair connectors) 108-22079 (25 pair sealant box)
Pluggable/bridge module: 108-22047 Pre-sealed modules:108-22068 (25 pair connectors)
Application specification AMP STACK MARK III 25 pair: 114-22006 (25 pair connectors) 114-22005 (20 pair connectors) 114-22004 (10 pair connectors) 114-22010 (25 pair sealant box) 411-22020 (25 pair sealant box) 411-22044 (25 pair connectors tooling kit)
Product Type Features: Product Type = Connector Connector Type = Plug Insulation Diameter (mm [in]) = 1.65 [.065] Max. Proprietary Name = AMP STACK Mark III Comment = Components consist of Protector, Body Assembly and Cover.
Mechanical Attachment: Number of Pairs = 25
Body Related Features: Wire Range (mm [AWG]) = 0.08-0.60; [28-20] Connector Module Color = Red/ Light Blue-Ivory/ Transparent Cutoff Blade Material = Stainless Steel
Contact Related Features: Contact Material = Phosphor Bronze Contact Mating Area Plating Material = Tin
Housing Related Features: Housing Material = Polycarbonate
Industry Standards: RoHS/ELV Compliance = RoHS compliant, ELV compliant Lead Free Solder Processes = Not reviewed for lead free solder process RoHS/ELV Compliance History = Always was RoHS compliant
Conditions for Usage: Connector Module Type = Dry/Test
Packaging Related Features: Packaging Quantity = 12 Packaging Method = Bag
Other: Brand = TYCO TELECOMMUNICATIONS (COMMSCOPE)Electronics
