TYCO/RAYCHEM GS3-1650-A2 COLD-APPLIED BURIED SPLICE CLOSURE 944912-000 ( )
Available*
Item # 57906000
Model # GS3-1650-A2
$75.78
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Closure
Material and Supplies
Closures
Closures Sheath Repair Sleeves
Tyco Telecommunications
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
TYCO TELECOMMUNICATIONS (COMMSCOPE)GS3-1650-A2 COLD-APPLIED BURIED SPLICE CLOSURE 944912-000 Fast and simple installation
Protects against impact and abrasion
Uses less than half the encapsulant of other closures
Fast and easy re-entry
Accommodates a wide range of cable diameters

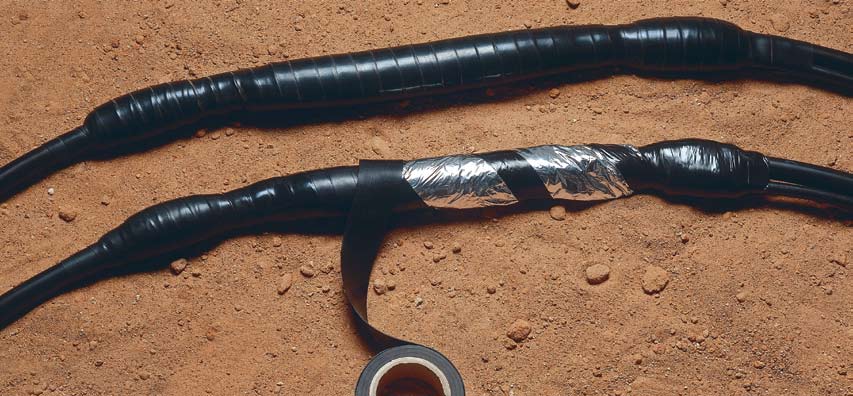

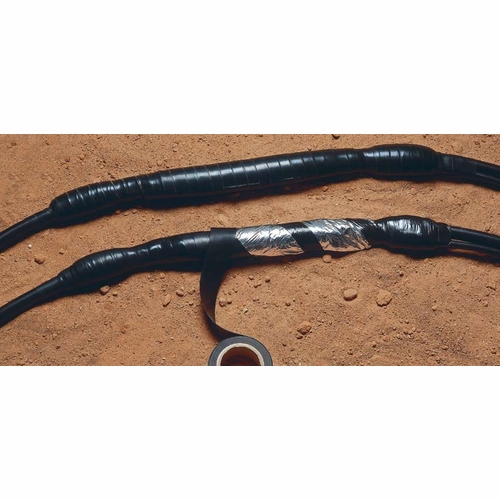

The GS3 1650 wrap-around splice closure system provides a fast, simple way to seal and encapsulate telephone cable splices in nonpressurized, buried cable.
GS3 1650 closure sealing sheet material is composed of several layers of specially blended polymers and gels and an aluminum moisture vapor barrier layer. The outer compression wrap provides excellent mechanical strength and provides superior protection from forces such as impact and abrasion.
The innovative Urethane Delivery System drives encapsulant into the core of the cable, providing protection superior to that of traditional poured urethane systems. The compact shape requires less than half the encapsulant of other closures. Filling is simple: no funnel is required. Re-entry is fast and easy.
No special splice supporting procedures are needed for installation. Furthermore, up to three cables can enter each end. No special endplates or complicated cutting is required. The GS3 1650 splice closure system accommodates a wide range of cable diameters; no minimum cable diameter is required.
The GS3 1650 splice closure system is available in diameters for cable sizes up to 2400 pair. Extended length closures are also available to accommodate sheath openings up to 37 inches and for cable sizes up to 3600 pair.
Product Splice Max. Splice Approx. Cable Encapsulant Part # Descriptor Opening Diameter Range (pairs)* Required (grams)* 303056 GS3 1650 S 12 1.10 6 - 25 500 635612 GS3 1650 AA 9 2.20 25 - 100 500 498010 GS3 1650 A 12 2.20 25 - 100 750 873354 GS3 1650 B 12 3.75 100 - 300 2,250 944912 GS3 1650 A2 21 2.20 25 - 200 1,500 869708 GS3 1650 B2 21 3.75 200 - 400 3,000 091754 GS3 1650 C2 21 5.30 600 - 900 5,000 544526 GS3 1650 D2 24 7.10 900 - 2400 10,000 733702 GS3 1650 A4 37 2.20 25 - 400 2,250 725704 GS3 1650 B4 37 3.75 200 - 600 4,500 982798 GS3 1650 C4 37 5.30 600 - 1800 9,000 717128 GS3 1650 D4 37 7.10 900 - 3600 15,000
A86654 Maintenance Kit Unlimited 8.5 6 - 3600 *Cable range and encapsulant required will vary depending upon cable, type of connector, and splice configuration. RUS Listed, RUS Customers Please Note: Customers who purchase the GS3 1650 splice closure system from TYCO TELECOMMUNICATIONS (COMMSCOPE)Electronics are not supplied with any encapsulant. The approved encapsulant for use is Re-enterable Encapsulant 165 from Vertellus Performance Materials, Inc., 2110 High Point Road, Greensboro, NC 27403, Phone: 336-292-1781, Fax: 336-854-4058 Consult your TYCO TELECOMMUNICATIONS (COMMSCOPE)Electronics sales representative for pressurized applications.
GS3 1650 closure sealing sheet material is composed of several layers of specially blended polymers and gels and an aluminum moisture vapor barrier layer. The outer compression wrap provides excellent mechanical strength and provides superior protection from forces such as impact and abrasion.
The innovative Urethane Delivery System drives encapsulant into the core of the cable, providing protection superior to that of traditional poured urethane systems. The compact shape requires less than half the encapsulant of other closures. Filling is simple: no funnel is required. Re-entry is fast and easy.
No special splice supporting procedures are needed for installation. Furthermore, up to three cables can enter each end. No special endplates or complicated cutting is required. The GS3 1650 splice closure system accommodates a wide range of cable diameters; no minimum cable diameter is required.
The GS3 1650 splice closure system is available in diameters for cable sizes up to 2400 pair. Extended length closures are also available to accommodate sheath openings up to 37 inches and for cable sizes up to 3600 pair.
Product Splice Max. Splice Approx. Cable Encapsulant Part # Descriptor Opening Diameter Range (pairs)* Required (grams)* 303056 GS3 1650 S 12 1.10 6 - 25 500 635612 GS3 1650 AA 9 2.20 25 - 100 500 498010 GS3 1650 A 12 2.20 25 - 100 750 873354 GS3 1650 B 12 3.75 100 - 300 2,250 944912 GS3 1650 A2 21 2.20 25 - 200 1,500 869708 GS3 1650 B2 21 3.75 200 - 400 3,000 091754 GS3 1650 C2 21 5.30 600 - 900 5,000 544526 GS3 1650 D2 24 7.10 900 - 2400 10,000 733702 GS3 1650 A4 37 2.20 25 - 400 2,250 725704 GS3 1650 B4 37 3.75 200 - 600 4,500 982798 GS3 1650 C4 37 5.30 600 - 1800 9,000 717128 GS3 1650 D4 37 7.10 900 - 3600 15,000
A86654 Maintenance Kit Unlimited 8.5 6 - 3600 *Cable range and encapsulant required will vary depending upon cable, type of connector, and splice configuration. RUS Listed, RUS Customers Please Note: Customers who purchase the GS3 1650 splice closure system from TYCO TELECOMMUNICATIONS (COMMSCOPE)Electronics are not supplied with any encapsulant. The approved encapsulant for use is Re-enterable Encapsulant 165 from Vertellus Performance Materials, Inc., 2110 High Point Road, Greensboro, NC 27403, Phone: 336-292-1781, Fax: 336-854-4058 Consult your TYCO TELECOMMUNICATIONS (COMMSCOPE)Electronics sales representative for pressurized applications.
