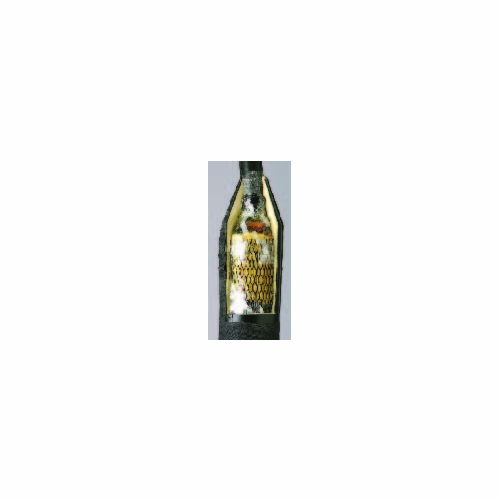

3M FSC2X12S/CC W/SHIELD BOND W/O HIGH GEL NEW FSC 2x12 1.3 inches diameter splice bundle, 9 inch splice opening, overall closure 15.3 inches, REQUIRES 165 g (sold seperately) reenterable
3M™ Foam Sealed Closure with Compound Compression encloses cable
plant splices in direct buried, hand hole and manhole applications. They
also protect cable splices from environmental elements found in these
applications and enclose a variety of cable configurations. The foam
sealed closures are also used to easily accommodate distribution drops
from the main cable.
The foam filled closures range from 25 to 2,700 pair and are designed
for enclosing spliced connections of communication cables in buried
and underground applications. The foam sealed closures are used in the
construction and maintenance of buried and underground PIC- or PIC-filled
cables in conjunction with the compound compression method of
encapsulating a splice joint.
UNSURPASSED RELIABILITY WITHOUT THE FLAME
Foam sealed closures utilize a compound compression method to apply
pressure to the re-enterable encapsulant, which minimizes core water
intrusion. The foam sealed closure consists of a compound compression
filled splice with a polyethylene body over wrapped with 3M™ Armorcast™
Structural Material for structural strength and splice protection.
3M™ Scotchcast™ Expandable Sealant 4411 is used to fill the void between
the closure body and the compound compressed splice. The expandable
foam adheres to the closure body, the E-Z overwrap and the cable sheath,
providing a watertight barrier around the splice and cables entering the closure.
Foam sealed closures deliver unsurpassed reliability without the need
for a torch or any special tool. The closure material and components
are resistant to acid base, kerosene and other cable filling compounds.
All foam sealed closures accommodate multiple cables as well as single
cables IN and OUT.
LESS TIME, LESS SPACE, LESS MONEY
Foam sealed closures can be assembled with a minimal number of parts
and come in a complete kit, reducing both training and installation times.
And because the foam sealed closures do not require a heat source,
they can be used in restricted areas and confined spaces.
