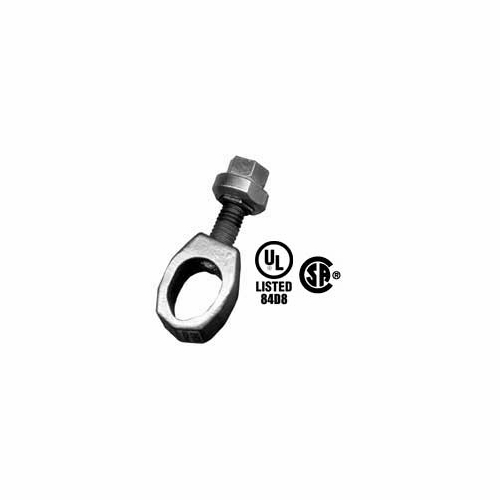

EMC EM6DB GROUND ROD CLAMPS FOR 5/8 AND 1/2 inch RODS, BRONZE EACH
Available*
Item # 55760080
Model # EM6DB
$5.24
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Clamp
Material and Supplies
Bonding- Grounding
Clamps
EMC Electric Motion Company
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
ELECTRIC MOTION COMPANY EM6DB GROUND ROD CLAMPS FOR 5/8 AND 1/2" RODS, BRONZE EACH NEW Ground Rod Clamps
Cast bronze, accommodates #12—1/0 AWG (unless otherwise noted).
Features
Two diameters allow for placement before or after the ground rod has been driven. (A peened-over ground rod is passed through the larger opening and secured in the smaller diameter.) A locking device prevents the bolt from loosening. Bronze material keeps corrosion to a minimum. Optional breakaway feature provides for foolproof installation.
Clamps marked UL listed, and with a ground wire range of #12–1/0 solid or stranded, are listed as suitable for direct burial and the following ground wire combinations:
Single wire - #12–#1/0 AWG Two like wires - #6, #10, #12 AWG Three like wires - #6, #10, #12 AWG
Unlike wire combinations:
Two #2 AWG with one #6 AWG One or two #10 AWG with one #12 AWG One or two #12 AWG with one #10 AWG
EM 6DB
5/8" and 1/2" ground rod clamp 1" long bolt anti-loosening device zinc breakaway cap at proper installation torque (removable with adjustable wrench) accommodates #12–2 AWG solid or stranded
No minimum order
Cast bronze, accommodates #12—1/0 AWG (unless otherwise noted).
Features
Two diameters allow for placement before or after the ground rod has been driven. (A peened-over ground rod is passed through the larger opening and secured in the smaller diameter.) A locking device prevents the bolt from loosening. Bronze material keeps corrosion to a minimum. Optional breakaway feature provides for foolproof installation.
Clamps marked UL listed, and with a ground wire range of #12–1/0 solid or stranded, are listed as suitable for direct burial and the following ground wire combinations:
Single wire - #12–#1/0 AWG Two like wires - #6, #10, #12 AWG Three like wires - #6, #10, #12 AWG
Unlike wire combinations:
Two #2 AWG with one #6 AWG One or two #10 AWG with one #12 AWG One or two #12 AWG with one #10 AWG
EM 6DB
5/8" and 1/2" ground rod clamp 1" long bolt anti-loosening device zinc breakaway cap at proper installation torque (removable with adjustable wrench) accommodates #12–2 AWG solid or stranded
No minimum order
