THOMAS AND BETTS E6-14 STA-KON RING TERMINAL FOR Number 6 WIRE 1.4 INCH STUD PACKS OF 20
Available*
Item # 55730240
Model # E6-14
$3.47
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Grounding
Material and Supplies
Hardware- Screws- Bolts
Wire Terminal Rings-Spades
T&B Thomas And Betts
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

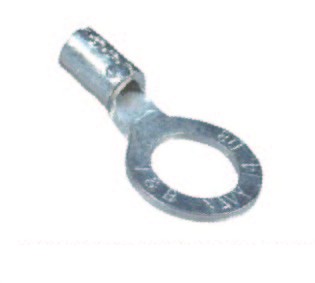

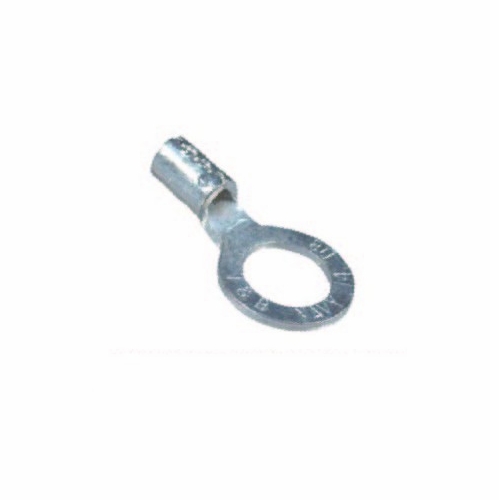

THOMAS & BETTS E6-14 STA-KON RING TERMINAL FOR #6 WIRE 1.4 INCH STUD PACKS OF 20 NEW E6-14
UPC Number: 78621080358
Description: Non-Insulated - Brazed Seam Ring Terminal For Wire Range 6 Stud Size 1/4, Metallic
Status: Active
Features These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
General Insulation Type Non-Insulated - Brazed Seam
Terminal Series E
Material Copper
Finish Electro -Tin Plated
Color Metallic
Wire Range 6
Stud Size 1/4
Specifications Temperature Rating 150°C
Flammability Rating UL 94 V-0
Dimension Information A (inches) 1.13
B (inches) .48
C (inches) .36
M (inches) .90
Stock Thickness .06
Packaging Order Multiple 20
Inner Package 20
Outer Package 1000
Package Type Standard
Package Height 8.8
Package Length 10.5
Package Width 7.3
THOMAS & BETTS Sold in UOM Each
THOMAS & BETTS Weight Per UOM 1.58 lbs. per 100
Features These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
General Insulation Type Non-Insulated - Brazed Seam
Terminal Series E
Material Copper
Finish Electro -Tin Plated
Color Metallic
Wire Range 6
Stud Size 1/4
Specifications Temperature Rating 150°C
Flammability Rating UL 94 V-0
Dimension Information A (inches) 1.13
B (inches) .48
C (inches) .36
M (inches) .90
Stock Thickness .06
Packaging Order Multiple 20
Inner Package 20
Outer Package 1000
Package Type Standard
Package Height 8.8
Package Length 10.5
Package Width 7.3
THOMAS & BETTS Sold in UOM Each
THOMAS & BETTS Weight Per UOM 1.58 lbs. per 100
