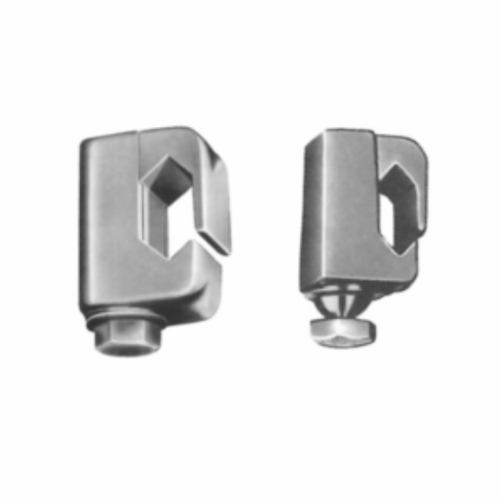

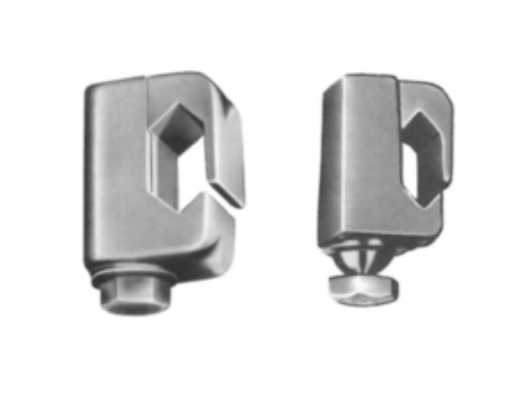

HUBBELL GC-5002 Vise-Type Distribution Ground Connector Clamp each 096359307372
Available*
Item # 55730125
Model # GC5002
$8.75
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Clamp
Material and Supplies
Hardware- Screws- Bolts
Clamps
Hubbell Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HUBBELL GC5002 Vise-Type Distribution Ground Connector Clamp each 096359307372 NEW
HUBBELL GC5002 Vise-Type Distribution Ground Connector Clamp each 096359307372 NEW
Item # GC5002 HUBBELL Vise-Type Distribution Ground Connector Clamp each UPC: 096359307372
Grounding Clamp, Copper Cable to Cable, Vice Type.
For copper connections-splice, loop deadend or service entrance tap. One piece design for easier, faster installation.
For copper connections One piece design for easier, faster installation Vise design achieves high connector pressure with low wrench force
Product details General Bolt Head Type Hex Bolt Installation Torque (Recommended) 180 in-lbs Catalog Number GC5002 Inhibitor Loaded No Material Bronze Material - Body Bronze Material - Bolt Stainless Steel Material - Hardware Stainless Steel Material - Keeper Bronze Plating No Product Category Vise Type Connectors UPC 096359307372
Dimensions Bolt Diameter 0.313 in 0.313 in Diameter - Bolt 0.3125 in Diameter - Bolt Head 0.375 in Dimensions 1.000 in x 0.750 in x 1.375 in Height 1.375 in Length 1 in Weight 0.164 lb Width 0.75 in
Conductor Related Conductor Diameter (Main) - Maximum 0.286 in Conductor Diameter (Main) - Minimum 0.162 in Conductor Diameter (Tap) - Maximum 0.286 in Conductor Diameter (Tap) - Minimum 0.162 in Conductor Type Copper
Certifications And Compliance Buy American Compliant Contact Manufacturer
Logistics Pallet Quantity 9000
HUBBELL GC5002 Vise-Type Distribution Ground Connector Clamp each 096359307372 NEW
Item # GC5002 HUBBELL Vise-Type Distribution Ground Connector Clamp each UPC: 096359307372
Grounding Clamp, Copper Cable to Cable, Vice Type.
For copper connections-splice, loop deadend or service entrance tap. One piece design for easier, faster installation.
For copper connections One piece design for easier, faster installation Vise design achieves high connector pressure with low wrench force
Product details General Bolt Head Type Hex Bolt Installation Torque (Recommended) 180 in-lbs Catalog Number GC5002 Inhibitor Loaded No Material Bronze Material - Body Bronze Material - Bolt Stainless Steel Material - Hardware Stainless Steel Material - Keeper Bronze Plating No Product Category Vise Type Connectors UPC 096359307372
Dimensions Bolt Diameter 0.313 in 0.313 in Diameter - Bolt 0.3125 in Diameter - Bolt Head 0.375 in Dimensions 1.000 in x 0.750 in x 1.375 in Height 1.375 in Length 1 in Weight 0.164 lb Width 0.75 in
Conductor Related Conductor Diameter (Main) - Maximum 0.286 in Conductor Diameter (Main) - Minimum 0.162 in Conductor Diameter (Tap) - Maximum 0.286 in Conductor Diameter (Tap) - Minimum 0.162 in Conductor Type Copper
Certifications And Compliance Buy American Compliant Contact Manufacturer
Logistics Pallet Quantity 9000
