HUBBELL GH5ILS Guy Hook Attachment Rams Head 096359036739
Available*
Item # 55722980
Model # GH5ILS
$4.35
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Clamp
Material and Supplies
Hardware- Screws- Bolts
Clamps
Hubbell Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HUBBELL GH5ILS Guy Hook Attachment Ram's Head 096359036739 NEW
HUBBELL GH5ILS Guy Hook Attachment Ram's Head 096359036739 NEW

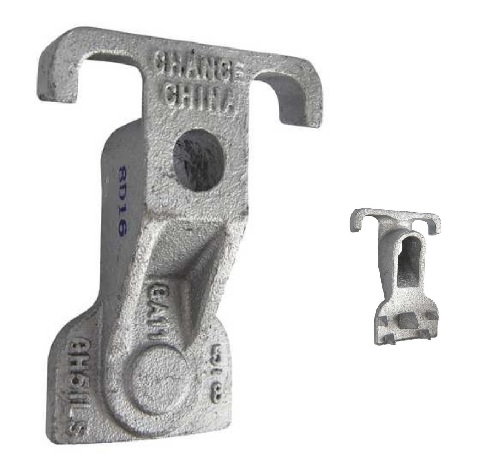

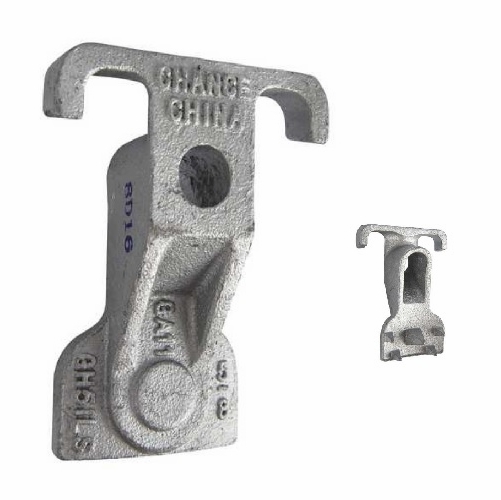

Item # GH5ILS HUBBELL Guy Hook Attachment Ram's Head UPC: 096359036739
Guy-Hook Attachment, 12,400 lbs. Strength, 5/8in Bolt Size with Integral Lag Spur
Cast ductile iron guy-hook attachment for deadending guy or messenger wire.Industry slang is Ram's Head.
Hardware for deadending conductor and guy wires, offered by the Hubbell-Chance brand, consist of Thimbleye® and ovaleye bolts, banding, eyenuts and eyelets, guy attachments and guy markers. All products are designed and manufactured in compliance with applicable electric utility and communications industry standards.
Features Maximum strand size is 7/16" Backside surface cleats increase stability in wood pole installations 2-1/2" base width x 4-3/4" length Rating increases to 13,550 lbs. with ASTM A-307 thru-bolts Ductile Iron per ASTM A-536 Galvanized per ASTM A-153 Manufactured to specificaiton IEEE C135.90
General Catalog Number GH5ILS Coating Galvanized, ASTM A-153 Material Ductile Iron, ASTM A-536 Tensile Strength 12400 lb. UPC 096359036739
Dimensions Dimensions 4.750 in x 3.600 in x 2.150 in Distance From Pole N/A Height 2.15 in Length 4.75 in Weight 1.43 lb Width 3.6 in
Logistics Pallet Quantity 1200
HUBBELL GH5ILS Guy Hook Attachment Ram's Head 096359036739 NEW
Item # GH5ILS HUBBELL Guy Hook Attachment Ram's Head UPC: 096359036739
Guy-Hook Attachment, 12,400 lbs. Strength, 5/8in Bolt Size with Integral Lag Spur
Cast ductile iron guy-hook attachment for deadending guy or messenger wire.Industry slang is Ram's Head.
Hardware for deadending conductor and guy wires, offered by the Hubbell-Chance brand, consist of Thimbleye® and ovaleye bolts, banding, eyenuts and eyelets, guy attachments and guy markers. All products are designed and manufactured in compliance with applicable electric utility and communications industry standards.
Features Maximum strand size is 7/16" Backside surface cleats increase stability in wood pole installations 2-1/2" base width x 4-3/4" length Rating increases to 13,550 lbs. with ASTM A-307 thru-bolts Ductile Iron per ASTM A-536 Galvanized per ASTM A-153 Manufactured to specificaiton IEEE C135.90
General Catalog Number GH5ILS Coating Galvanized, ASTM A-153 Material Ductile Iron, ASTM A-536 Tensile Strength 12400 lb. UPC 096359036739
Dimensions Dimensions 4.750 in x 3.600 in x 2.150 in Distance From Pole N/A Height 2.15 in Length 4.75 in Weight 1.43 lb Width 3.6 in
Logistics Pallet Quantity 1200
