P/N 70606 Sidewinder with external hydraulic ports

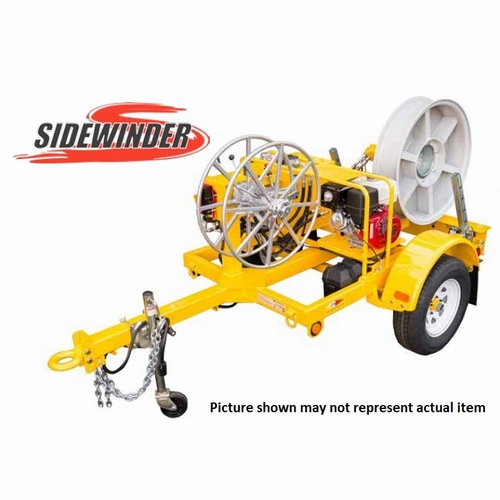

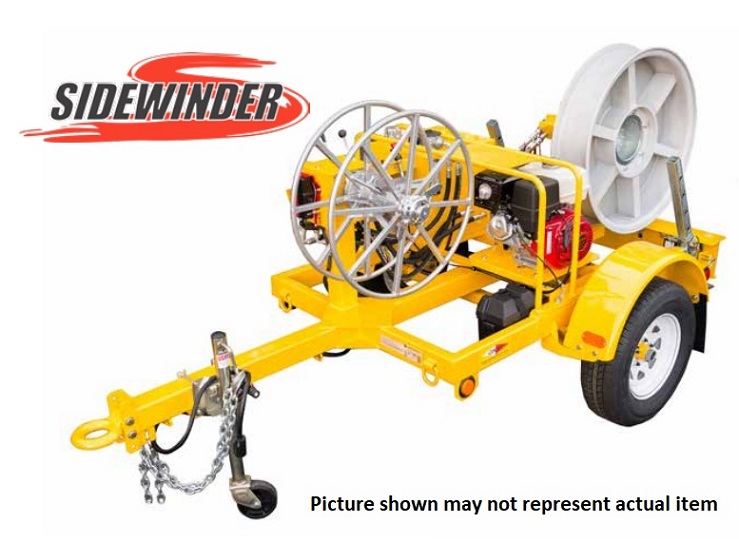

The GMP SideWinder, Trailer Mounted Fiber Optic Puller has been designed to exceed the requirements of installing underground telecommunication cables, employing a 32" diameter single capstan to provide a controlled force to the pulling rope or tape. The single capstan allows the winch to be placed at the mid point of a section to assist in the pull, thus achieving longer pulls. At 1400 lbs., the unit is easily pulled by a standard pickup truck. The power source is a commercial grade Honda GX390� gasoline engine which drives the fixed displacement tandem mounted hydraulic pumps. The rope take-up drum is removable and can be split to enable removal of rope. The capstan can be rotated through 90� on a swivel bracket from the in-line working position to the transverse transit position when in tow. When the winch is in the working mode the rear props are extended out of the chassis to provide greater stability.

Specifications: Max. Pulling Capacity: 1100 lbs. (500kg) Max. Rope Speed: 200 ft/min (60m/min) Capstan Diameter: 32" (813mm)

Length: 123" (3124mm) Overall Width: torque motors. 69" (1753mm) Height: 57" (1450mm) Weight: 1400 lbs. (635kg)

Track: 60" (1676mm) Tire Size: F78-14 205/75D14

Hitch Coupling: Lunette Ring (ball coupler available) Lighting Adapter: 7-Pole RV Blade Power Supply: Honda GX390� 12 HP, Recoil Start, Overhead Valve, Cast Iron

Cylinder Sleeve, 1.5 Gallon tank Load indication: Calibrated gauge bezel Main Drive: Fixed displacement tandem pumps to fixed displacement high torque motors. Gear Box: In-line planetary gearbox (capstan drive)Read More
