Product Description

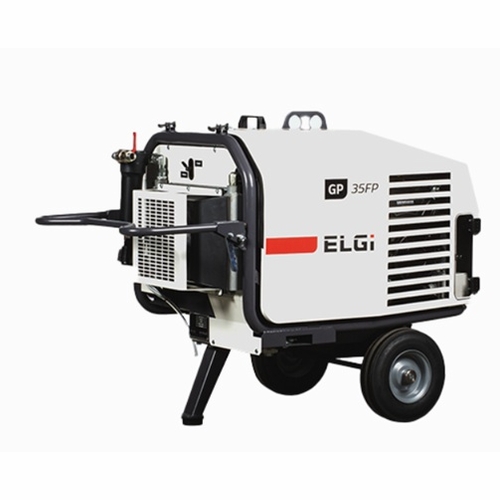

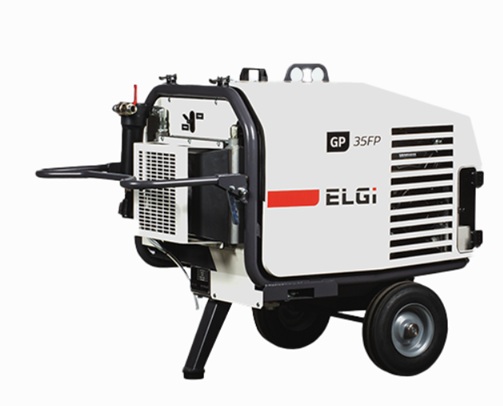

GMP General Machine Products 90200 ELGI 35 CFM Portable Air Compressor
GMP General Machine Products 90200 ELGI 35 CFM
Portable Air Compressor
GMP P/N 90200
ELGI 35 CFM Portable Air Compressor
The GP35FP is specifically designed to meet the needs of fiber optic cable blowing professionals.
Two integrated aftercoolers and moisture separator to reduce service air temperature to ambient + 3.6 F
Vanguard 23 HP gas engine with electric start and recoil starter
Produces 35 cfm at 218 psi, perfect for fiber optic cable installation
The compressor package includes a 50 foot 3/4 in. diameter air hose for connection to the microFiber cable blowing machine
A skid option is available for installation on a utility truck or trailer
Compatible with our Hurricane, AirStream, Whisper, Accelair, GentleAir and MicroDrive blowers
GP35FP TECHNICAL DATA
Compressor
Operating Pressure 218 psi
Free Air Delivery 35 cfm
Minimum Working Pressure 73 psi
Drive System Engine-Airend Belt-drive
Air Outlet Temperature Ambient +3.6�F
Oil Cooling Capacity 1.33 gal
Outlet Valves 1 x 3/4"
Battery Capacity 12V 45Ah 330A
Fuel Tank Capacity 3.9 gal
Fuel Consumption 1.7 gph
Dimensions with Running Gear L-47" W-31" H-38"
Dimensions with Skid Configuration L-47" W-31" H-36"
Dry Weight with Running Gear 563 lbs
Dry Weight with Skid Configuration 563 lbs
GASOLINE ENGINE
Engine Make VANGUARD
Engine Type 3864
Engine System 4 stroke
Displacement 627 cc
No. Cylinders 2
Aspiration Natural
Max Engine Power @ 3600 RPM 23 HP
Max Engine Speed 3600 RPM
Min Engine Speed 2000 RPM
Cooling System Air
Cooling System Capacity 0.38 gal
Lubrication System Oil
Lubrication System Capacity 0.375 gal
Max Ambient Temperature 115�F
Min Working Temperature 14�FRead More
