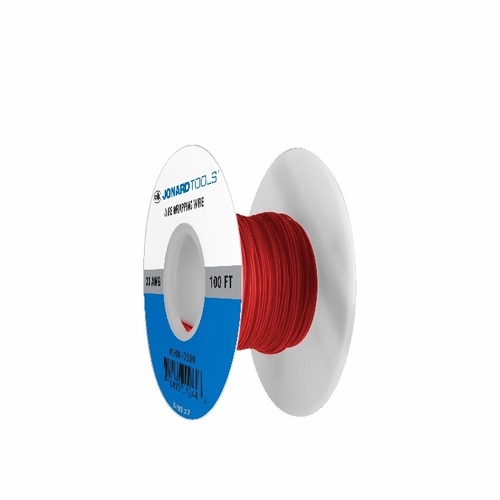

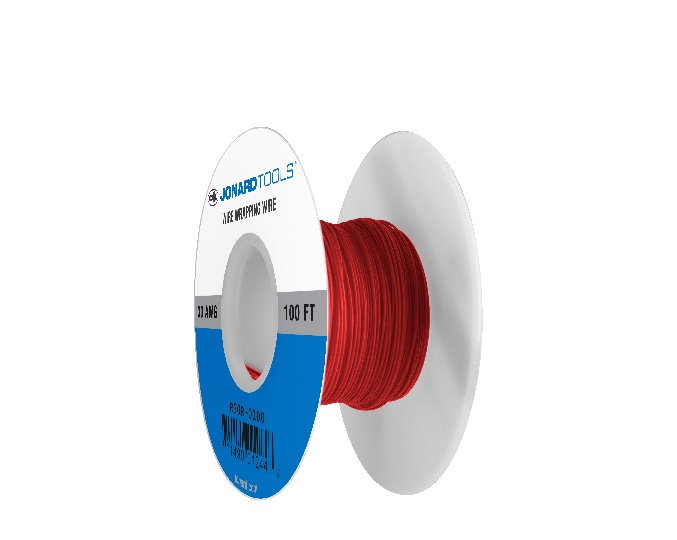

JONARD R30R-0100 Wire 30 Awg Red 100 Ft 811490012448
Available*
Item # 55405215
Model # R30R-0100
$16.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Wire Ccx
Material and Supplies
Wire- Inside Wiring
Wire- Crossconnect- Jumper
Jonard Industries Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
JONARD R30R-0100 Wire 30 Awg Red 100 Ft 811490012448
Typically used where flexibility, strength, and low weight is required, KynarŪ wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. It is also commonly used for circuit board prototyping because of its lighter weight and smaller overall diameter. Additionally, Kynar insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons. These properties make KynarŪ wire an excellent choice when working in even the harshest environmental applications. This wire also features the following:
OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility KynarŪ insulation provides high temperature resistance (up to 105°C) and excellent abrasion resistance Meets or exceeds UL 1423 standards
Specifications Color Red
Wire Gauge 30 AWG (0.25 mm)
Insulation Type KynarŪ
Insulation Thickness 0.005" (0.127 mm)
Overall Diameter 0.020" (0.50 mm)
Material Silver Plated Copper Conductor
Standards UL 1423
Voltage Not Rated
Length 100 ft. (30.4 meters)
Weight 0.085 lb (38.56 g)
UPC No. 811490012448
Typically used where flexibility, strength, and low weight is required, KynarŪ wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. It is also commonly used for circuit board prototyping because of its lighter weight and smaller overall diameter. Additionally, Kynar insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons. These properties make KynarŪ wire an excellent choice when working in even the harshest environmental applications. This wire also features the following:
OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility KynarŪ insulation provides high temperature resistance (up to 105°C) and excellent abrasion resistance Meets or exceeds UL 1423 standards
Specifications Color Red
Wire Gauge 30 AWG (0.25 mm)
Insulation Type KynarŪ
Insulation Thickness 0.005" (0.127 mm)
Overall Diameter 0.020" (0.50 mm)
Material Silver Plated Copper Conductor
Standards UL 1423
Voltage Not Rated
Length 100 ft. (30.4 meters)
Weight 0.085 lb (38.56 g)
UPC No. 811490012448
