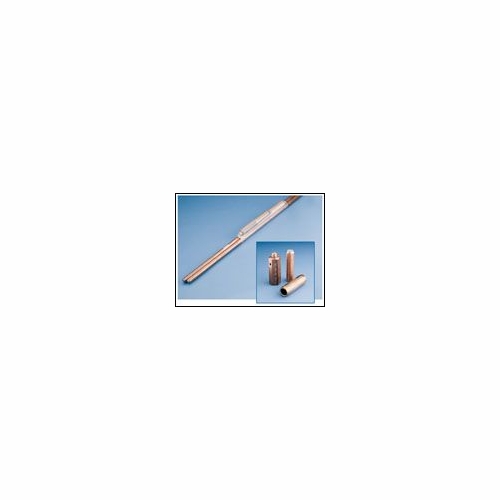

ERICO CGE51G CONVENIENTGROUND ELECTRODE KIT (2X) 5/8 INCH X 4 FOOT COPPER GROUND ROD, COUPLER
Available*
Item # 55090900
Model # CGE51G
$46.56
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Ground Rod
Material and Supplies
Bonding- Grounding
Ground Rods
Generic Manufacturer
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
ERICO CGE51G CONVENIENTGROUND ELECTRODE KIT (2X) 5/8 INCH X 4 FOOT COPPER GROUND ROD, COUPLER NEW CGE51G kit contents (2) 615840 4ft ground rods, EHL58C1G Drive Bolt, EDS58 Hammerlock clamps for #6 Solid - 10 mm2 Stranded
ERITECH® Convenient Ground Electrode (CGE) Kits Installing eight-foot-long ground rods can be challenging if purpose-designed driving equipment is not available. Installers stand on ladders, truck beds or use other difficult methods to drive ground rods into the earth. Others cut eight-foot rods into four-foot lengths for installation safety. To alleviate these challenges, ERICO® offers the new ERITECH® Convenient Ground Electrode (CGE) Kit. The kit contains two four-foot, 5/8-in.-diameter, ERITECH copperbonded, steel-pointed and chamfered ground rods; a drive sleeve; an ERITECH compression coupling and an ERITECH® HAMMERLOCK or CP58 grounding connector. The UL®-Listed NEC®-Compliant kit allows for installation from the ground level and is much easier to transport than eight-foot ground rods.
Features
Kit contains two 4-ft (1.2 m) copperbonded ground rods, a coupling, a drive sleeve and a connector
Easier to install than 8-ft-long (2.4 m) ground rods; allows installation from ground level. Easier to transport. It can be shipped via small parcel carrier. Available with ERITECH HAMMERLOCK for #4 and #6 solid conductors or with CP58 for #8 solid to #2 stranded conductor Contractors only need a length of copper conductor to complete the installation
Applications The ERITECH CGE kits are designed for #6 and #4 solid copper conductor applications with ERITECH HAMMERLOCK and #8 solid to #2 stranded conductors with the CP58 connector. Additional wire size applications may be available upon request.
More Information ERITECH copperbonded steel ground rods resist corrosion and provide for a service life of more than 40 years in most soils. They are manufactured using ERICO’s unique copperbonding process which produces a reliable, long-lasting and extremely durable rod. ERITECH rods exceed the requirements of ANSI®/UL 467-2001, CSA® and ANSI/NEMA® GR-1.
The ERITECH HAMMERLOCK taper-fit compression connector included in the kit joins the grounding conductor to the ground rod with the strike of a hammer. No torque wrench is required for proper installation. Machined from electrolytic copper, the connection is highly conductive and designed to withstand ground fault currents and lightning transients. The rugged, irreversible UL-Listed connector exceeds the mechanical strength requirements of IEEE® 837 and maintains the highest level of electrical performance for many years after being buried in the harsh underground environment.
Kits are also available with a CP58 grounding connector. A coupling and drive sleeve complete the CGE kit. A length of conductor is the only thing needed to finish the installation.
ERITECH® Convenient Ground Electrode (CGE) Kits Installing eight-foot-long ground rods can be challenging if purpose-designed driving equipment is not available. Installers stand on ladders, truck beds or use other difficult methods to drive ground rods into the earth. Others cut eight-foot rods into four-foot lengths for installation safety. To alleviate these challenges, ERICO® offers the new ERITECH® Convenient Ground Electrode (CGE) Kit. The kit contains two four-foot, 5/8-in.-diameter, ERITECH copperbonded, steel-pointed and chamfered ground rods; a drive sleeve; an ERITECH compression coupling and an ERITECH® HAMMERLOCK or CP58 grounding connector. The UL®-Listed NEC®-Compliant kit allows for installation from the ground level and is much easier to transport than eight-foot ground rods.
Features
Kit contains two 4-ft (1.2 m) copperbonded ground rods, a coupling, a drive sleeve and a connector
Easier to install than 8-ft-long (2.4 m) ground rods; allows installation from ground level. Easier to transport. It can be shipped via small parcel carrier. Available with ERITECH HAMMERLOCK for #4 and #6 solid conductors or with CP58 for #8 solid to #2 stranded conductor Contractors only need a length of copper conductor to complete the installation
Applications The ERITECH CGE kits are designed for #6 and #4 solid copper conductor applications with ERITECH HAMMERLOCK and #8 solid to #2 stranded conductors with the CP58 connector. Additional wire size applications may be available upon request.
More Information ERITECH copperbonded steel ground rods resist corrosion and provide for a service life of more than 40 years in most soils. They are manufactured using ERICO’s unique copperbonding process which produces a reliable, long-lasting and extremely durable rod. ERITECH rods exceed the requirements of ANSI®/UL 467-2001, CSA® and ANSI/NEMA® GR-1.
The ERITECH HAMMERLOCK taper-fit compression connector included in the kit joins the grounding conductor to the ground rod with the strike of a hammer. No torque wrench is required for proper installation. Machined from electrolytic copper, the connection is highly conductive and designed to withstand ground fault currents and lightning transients. The rugged, irreversible UL-Listed connector exceeds the mechanical strength requirements of IEEE® 837 and maintains the highest level of electrical performance for many years after being buried in the harsh underground environment.
Kits are also available with a CP58 grounding connector. A coupling and drive sleeve complete the CGE kit. A length of conductor is the only thing needed to finish the installation.
