RELIABLE R66MOD204 F015443 20PR MODULAR
Available*
Item # 54821200
Model # R66MOD204
$109.89
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Block 66
Material and Supplies
Blocks Customer Premise
66 Type
Emerson Network Power
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

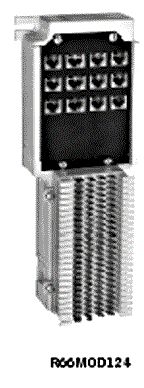

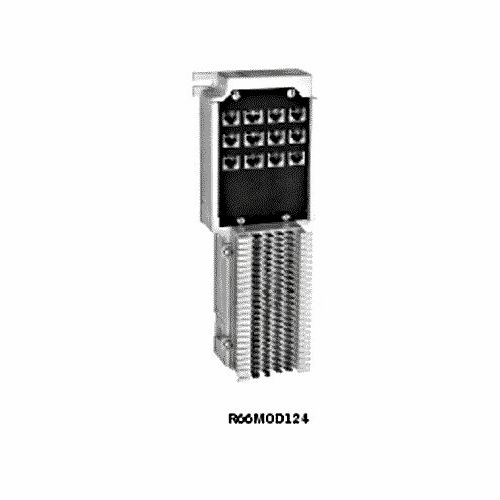

EMERSON NETWORK POWER R66MOD204 F015443 20PR MODULAR NEW R66MOD204BS (F015449) 20 port RJ11, position/contacts 6/2
R66MOD Series With Modular Jacks
R66MOD series are quck-clip blocks with modular jacks that provide the user with a flexible interconnect for the distribution of voice or data pairs to RJ11 modular jacks. These compact blocks mount in the same footprint as the R66M150X block. The R66MOD can be wall, backboard, or frame mounted, or it may be mounted on a standard 89-type bracket (Marconi R891 and R89B). Unstripped 20- to 26-gauge (.4 to .8 mm) conductors can be easily terminated using an industry standard 714-type punch-down tool (Marconi R714B). Each block is supplied with integral fanning strips molded on each side of the base. The block is constructed of UL 94 V-0 rated plastic, and the RJ11 jacks are made of impact-resistant plastic with 50 micro-inch gold plated contacts.
R66MOD units can be used anywhere throughout a network where raw-ended solid copper wire must be converted to modular jacks. R66MOD units are available in a variety of configurations: 2- and/or 4-contact modular jacks can have 8, 12, 16 or 20 ports; 6-contact is available in 8, 12, or 16 ports. Punch-down quick-clip interconnect modular design for application flexibility and ease of use. 2-, 4-, or 6-wire modular jack provides flexible distribution of voice or data pairs. Mounts on a standard 89-type bracket for dynamic allocation of wires through quick-clips. Same dimensions as industry standard R66M150 block accommodates high density
All connections are made on the front of the unit for easy install on backboards or cable runways
Catalog-----------Part------Number--Type------Jack Position--ship Number--------Number---of ports-----------------Contacts------weight R66MOD82---F015447---8---------RJ11---------6/2-------------1.05 R66MOD84---F015448---8---------RJ11---------6/4-------------1.05 R66MOD86---F015446---8---------RJ11---------6/6-------------1.05 R66MOD122---F015453---12-----RJ11---------6/2-------------1.05 R66MOD124---F015441---12-----RJ11---------6/4-------------1.05 R66MOD126---F015454---12-----RJ11---------6/6-------------1.05 R66MOD162---F015445---16-----RJ11---------6/2-------------1.05 R66MOD164---F015449---16-----RJ11---------6/4-------------1.05 R66MOD166---F015059---16-----RJ11---------6/6-------------1.05 R66MOD202---F015444---20-----RJ11---------6/2-------------1.05 R66MOD204---F015443---20-----RJ11---------6/4-------------1.05
R66MOD Series With Modular Jacks
R66MOD series are quck-clip blocks with modular jacks that provide the user with a flexible interconnect for the distribution of voice or data pairs to RJ11 modular jacks. These compact blocks mount in the same footprint as the R66M150X block. The R66MOD can be wall, backboard, or frame mounted, or it may be mounted on a standard 89-type bracket (Marconi R891 and R89B). Unstripped 20- to 26-gauge (.4 to .8 mm) conductors can be easily terminated using an industry standard 714-type punch-down tool (Marconi R714B). Each block is supplied with integral fanning strips molded on each side of the base. The block is constructed of UL 94 V-0 rated plastic, and the RJ11 jacks are made of impact-resistant plastic with 50 micro-inch gold plated contacts.
R66MOD units can be used anywhere throughout a network where raw-ended solid copper wire must be converted to modular jacks. R66MOD units are available in a variety of configurations: 2- and/or 4-contact modular jacks can have 8, 12, 16 or 20 ports; 6-contact is available in 8, 12, or 16 ports. Punch-down quick-clip interconnect modular design for application flexibility and ease of use. 2-, 4-, or 6-wire modular jack provides flexible distribution of voice or data pairs. Mounts on a standard 89-type bracket for dynamic allocation of wires through quick-clips. Same dimensions as industry standard R66M150 block accommodates high density
All connections are made on the front of the unit for easy install on backboards or cable runways
Catalog-----------Part------Number--Type------Jack Position--ship Number--------Number---of ports-----------------Contacts------weight R66MOD82---F015447---8---------RJ11---------6/2-------------1.05 R66MOD84---F015448---8---------RJ11---------6/4-------------1.05 R66MOD86---F015446---8---------RJ11---------6/6-------------1.05 R66MOD122---F015453---12-----RJ11---------6/2-------------1.05 R66MOD124---F015441---12-----RJ11---------6/4-------------1.05 R66MOD126---F015454---12-----RJ11---------6/6-------------1.05 R66MOD162---F015445---16-----RJ11---------6/2-------------1.05 R66MOD164---F015449---16-----RJ11---------6/4-------------1.05 R66MOD166---F015059---16-----RJ11---------6/6-------------1.05 R66MOD202---F015444---20-----RJ11---------6/2-------------1.05 R66MOD204---F015443---20-----RJ11---------6/4-------------1.05
