HUBBELL 5315 THIMBLEYE 5/8 X 5 FT Threaded Expanding/Cross-Plate Anchor Rod
Available*
Item # 54382100
Model # 5315
$31.14
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Anchors
Material and Supplies
Hardware- Screws- Bolts
Anchors- Pole Line
Hubbell Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HUBBELL 5315 THIMBLEYE 5/8 X 5 FT Threaded Expanding/Cross-Plate Anchor Rod New
HUBBELL 5315 THIMBLEYE 5/8 X 5 FT Threaded Expanding/Cross-Plate Anchor Rod New
Item # 5315 HUBBELL THIMBLEYE 5/8 X 5 FT Threaded Expanding/Cross-Plate Anchor Rod UPC: 096359072348
Dimensions Dimensions 60.000 in x 0.650 in x 1.250 in Height 1.25 in Length 60 in Rod Diameter 0.625 in Weight 5.625 lb Width 0.65 in

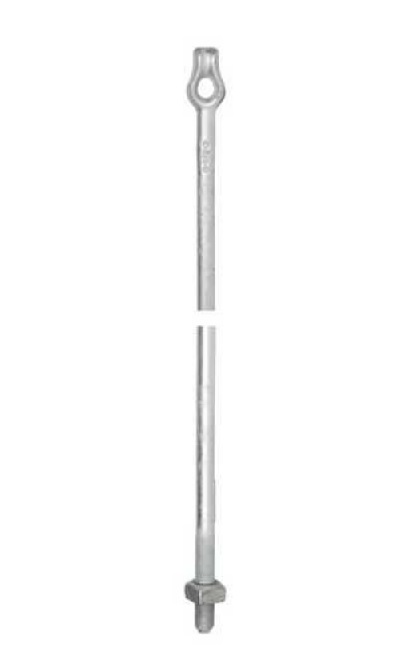

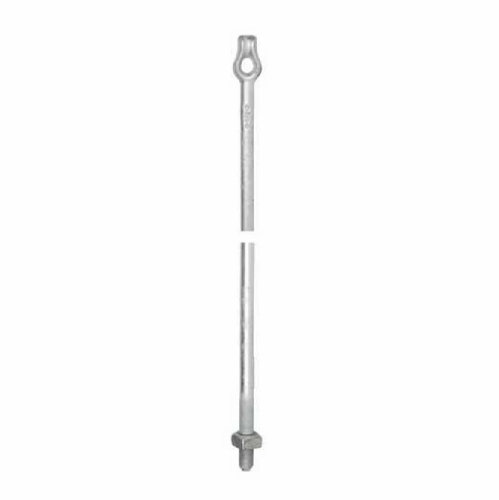

Expanding/Cross-Plate Anchor Rod 0.625" (15.9 mm) Diameter Rod, 5' (1524 mm) long with Thimbleye.
Anchor rod used with Expanding and Cross-plate anchors are available for one, two, or three guys. Thimbleye, Twineye and Tripleye eye design distribute pulling stresses uniformly over individual strands of guy wire and keep the guy wire from spreading, kinking, or bending. The drop-forged eye of each anchor rod is stronger than the rod itself. Rod length and diameter are stamped below each rod eye. Each rod is threaded 3-1/2" minimum length. Heavy square nut included.
ThimbleyeŽ, TwineyeŽ and TripleyeŽ drop forged eye distribute pulling stresses uniformly over individual strands of guy wire and keep the guy wire from spreading,kinking, or bending. Hot dipped galvanized per ASTM A153 Square nut assembled to rod Rods used with Cross-plate and Expanding anchors
HUBBELL 5315 THIMBLEYE 5/8 X 5 FT Threaded Expanding/Cross-Plate Anchor Rod New
Item # 5315 HUBBELL THIMBLEYE 5/8 X 5 FT Threaded Expanding/Cross-Plate Anchor Rod UPC: 096359072348
Dimensions Dimensions 60.000 in x 0.650 in x 1.250 in Height 1.25 in Length 60 in Rod Diameter 0.625 in Weight 5.625 lb Width 0.65 in
Expanding/Cross-Plate Anchor Rod 0.625" (15.9 mm) Diameter Rod, 5' (1524 mm) long with Thimbleye.
Anchor rod used with Expanding and Cross-plate anchors are available for one, two, or three guys. Thimbleye, Twineye and Tripleye eye design distribute pulling stresses uniformly over individual strands of guy wire and keep the guy wire from spreading, kinking, or bending. The drop-forged eye of each anchor rod is stronger than the rod itself. Rod length and diameter are stamped below each rod eye. Each rod is threaded 3-1/2" minimum length. Heavy square nut included.
ThimbleyeŽ, TwineyeŽ and TripleyeŽ drop forged eye distribute pulling stresses uniformly over individual strands of guy wire and keep the guy wire from spreading,kinking, or bending. Hot dipped galvanized per ASTM A153 Square nut assembled to rod Rods used with Cross-plate and Expanding anchors
