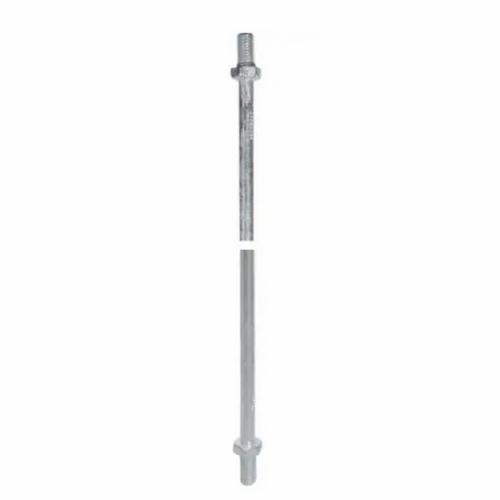

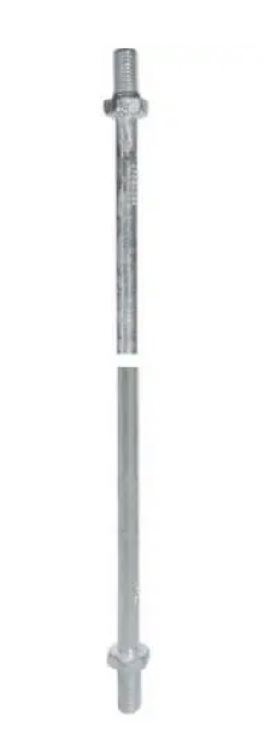

HUBBELL POWER SYSTEMS 12632P 3/4 inch x 7 ft. Anchor PISA Rod 096359068440
Available*
Item # 54378750
Model # 12632P
$26.45
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Anchors
Material and Supplies
Hardware- Screws- Bolts
Anchors- Pole Line
Hubbell Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HUBBELL POWER SYSTEMS 12632P 3/4 inch x 7 ft. Anchor PISA Rod 096359068440 NEW
HUBBELL POWER SYSTEMS 12632P 3/4 inch x 7 ft. Anchor PISA Rod 096359068440 NEW
Item # 12632P HUBBELL POWER SYSTEMS Brand: Chance
Pisa anchor rod 0.75" (19.1 mm) diameter, 7' (2134 mm) long.
Chance PISA rods are designed to be used with Tough One and PISA screw anchors. Both ends have a forged hex to allow the rod to be tightened to the anchor and the eyenut. The 5/8" diameter rods have 5/8" diameter threads; 3/4" and 1" diameter rods have 1" threads. Anchors and eyenuts have either 5/8" threads or 1" threads. Rods are galvanized in accordance with ASTM A153. Anchor rods are available without the eyenut or with various styles of eyenuts assembled to the rod at the factory.
Hot forged hex collar provides strong connection to anchor and eye Hot dipped galvanized per ASTM A153 Rods used with PISA® Power Installed Screw Anchors Cannot be used with Expanding and Plate Anchors
General Application Helical Anchoring Catalog Number 12632P Coating Galvanized, ASTM A-153 Strength Note Ultimate strength ratings apply to properly installed anchors only. Failure to install within 5 ° of alignment with the guy load may significantly lower strength. Tensile Strength 23000 lb. Type Power Installed Screw Anchor (PISA) UPC 096359068440
Dimensions Dimensions 84.000 in x 1.360 in x 1.360 in Height 1.36 in Length 84 in Rod Diameter 0.75 in Weight 9.506 lb Width 1.36 in
Certifications And Compliance RUS Listed Reference z – Anchors, screw, power installed
Logistics Pallet Quantity 50 Standard Package 5
