PLP 11622015 WITH RIDGID SLOTS 36-FIBER SPLICE TRAY FOR COYOTE SAME AS 80805110
Available*
Item # 54060000
Model # 11622015
$51.21
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.

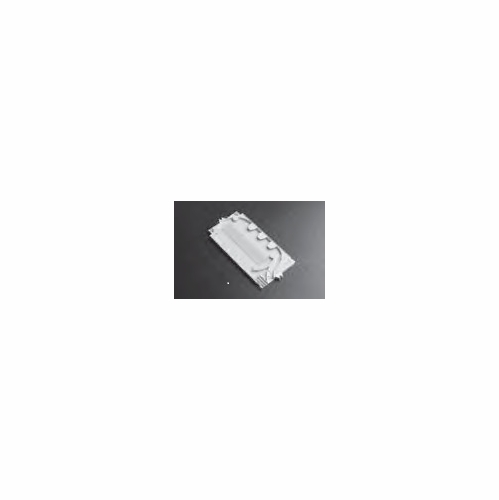

(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Tray
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Splice Trays - Organizers
Preformed Line Products
Fiber Splice Trays
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Preformed Line Products 11622015 36-FIBER SPLICE TRAY FOR COYOTE SAME AS 80805110 NEW
identical tray to 80805110
The COYOTE Closure Family features durable high-density thermoplastic shells that weigh less than their stainless steel counterparts. For loose tube buffer type fiber, the 6.5" x 22.0" COYOTE Closure handles up to 144 splices and the 8.5" x 22.0" COYOTE Closure handles up to 288 splices. The smaller 6.0" x 17.0" COYOTE PUP Closure can manage up to 48 fiber splices. The compact COYOTE RUNT Closure can manage up to 24 fiber splices. The COYOTE PUP Closure allows future expansion or "growth" into a COYOTE Closure with minimal cost or disruption to the existing fibers.
Features of the COYOTE Closure and COYOTE PUP Closure: -For either dielectric or OPGW cables. -High strength, low weight, low cost, non-metallic shells. -Permanent neoprene gasket and LOCK-TAPE -Sealing System allow re-entry without re-entry kits/ supplies. -Roomy buffer tube storage system and fiber management trays allowing large bend radii. -Fiber management system for loose tube buffer. Other versions are readily available . -End Plate System for butt splicing: - one Blank End Plate at one end - one Three-Section End Plate with six premolded cable entry ports; four ports for up to 7/8" OD dielectric cables (.785" max. OPGW OD) and two ports for up to 3/4" OD dielectric cables (.660" max. OPGW OD). Drilling not required. Optional Three-Section Four Port End Plate is available for cables up to 1-1/4" (See next page). -Optional Future Cable Port Kits allow for adding cables in the future without disasasembling the End Plate. Kits must be ordered and installed during initial assembly. - Future cable port for 7/8" ports will accept cables up to .56" - Future cable port for 1" ports will accept cables up to .81" - Future cable port for 1-1/4" ports will accept cables up to 1" - When adding future OPGW cables, order additional OPGW Strain Relief Bracket Kits. -Closures are available that can accommodate other types of fiber optic cable. -OPGW Strain Relief Bracket Kit provides brackets, clamps and moisture sealing tape required for installing two OPGW cables in End Plate. -Splice Case Kits are available for OPGW with stainless steel loose-tube fiber bundles,consult factory for details.
The COYOTE Closure Family features durable high-density thermoplastic shells that weigh less than their stainless steel counterparts. For loose tube buffer type fiber, the 6.5" x 22.0" COYOTE Closure handles up to 144 splices and the 8.5" x 22.0" COYOTE Closure handles up to 288 splices. The smaller 6.0" x 17.0" COYOTE PUP Closure can manage up to 48 fiber splices. The compact COYOTE RUNT Closure can manage up to 24 fiber splices. The COYOTE PUP Closure allows future expansion or "growth" into a COYOTE Closure with minimal cost or disruption to the existing fibers.
Features of the COYOTE Closure and COYOTE PUP Closure: -For either dielectric or OPGW cables. -High strength, low weight, low cost, non-metallic shells. -Permanent neoprene gasket and LOCK-TAPE -Sealing System allow re-entry without re-entry kits/ supplies. -Roomy buffer tube storage system and fiber management trays allowing large bend radii. -Fiber management system for loose tube buffer. Other versions are readily available . -End Plate System for butt splicing: - one Blank End Plate at one end - one Three-Section End Plate with six premolded cable entry ports; four ports for up to 7/8" OD dielectric cables (.785" max. OPGW OD) and two ports for up to 3/4" OD dielectric cables (.660" max. OPGW OD). Drilling not required. Optional Three-Section Four Port End Plate is available for cables up to 1-1/4" (See next page). -Optional Future Cable Port Kits allow for adding cables in the future without disasasembling the End Plate. Kits must be ordered and installed during initial assembly. - Future cable port for 7/8" ports will accept cables up to .56" - Future cable port for 1" ports will accept cables up to .81" - Future cable port for 1-1/4" ports will accept cables up to 1" - When adding future OPGW cables, order additional OPGW Strain Relief Bracket Kits. -Closures are available that can accommodate other types of fiber optic cable. -OPGW Strain Relief Bracket Kit provides brackets, clamps and moisture sealing tape required for installing two OPGW cables in End Plate. -Splice Case Kits are available for OPGW with stainless steel loose-tube fiber bundles,consult factory for details.
