INNO VIEW 5 CORE ALIGNMENT(DACAS) FUSION SPLICER REPAIRED
Available*
Item # 53960802
Model # VIEW 5 REPAIRED
$5,000.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Fusion Spl
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Fusion Splicer
INNO Instrument
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
INNO VIEW 5 CORE ALIGNMENT(DACAS) FUSION SPLICER REPAIRED
INNO VIEW 5 CORE ALIGNMENT(DACAS) FUSION SPLICER REPAIRED
INNO VIEW 5 CORE ALIGNMENT(DACAS) FUSION SPLICER REPAIRED

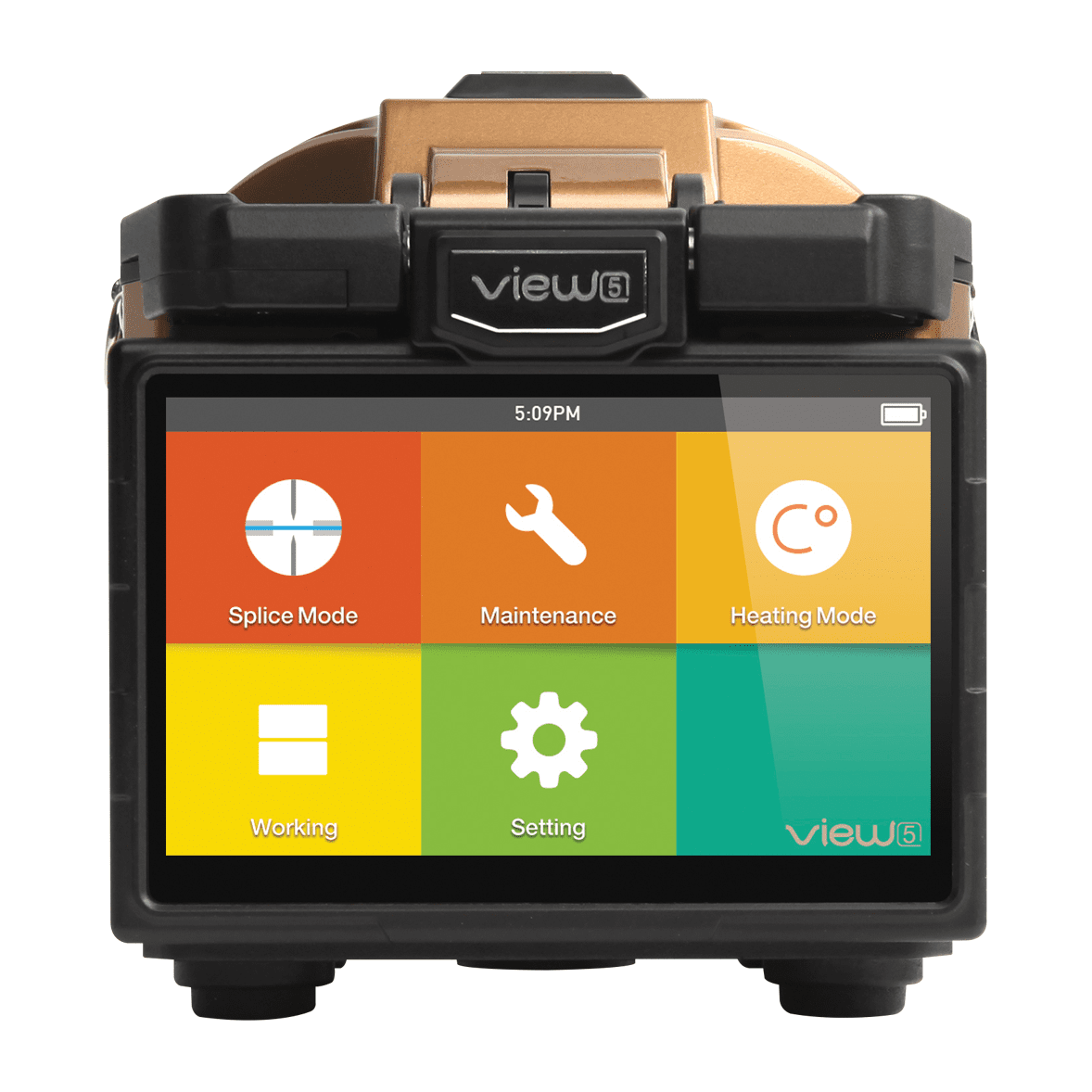

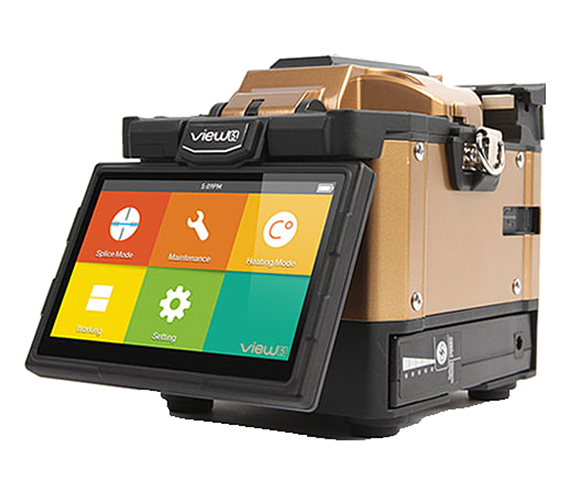

View 5, a core-alignment splicer with the world’s highest fiber image magnification rate, is the most dependable fusion splicer in the market. View 5’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world’s highest magnification of 520x. Also View 5’s compatibility with SOC (Splice-On-Connectors) will bring satisfactory experiences to users in FTTx field. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments.
Specifications
Model View 5 Dimension 147H x 130W x 155D mm Weight 2.21KG (with battery) / 1.85KG (without battery) Number of Fiber Single Applicable Fibers SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) Compatible Fiber / Cable 0.25~3.0 mm / Indoor Cable Cleaved Length Diameter: 0.125~1 mm / Cleave Length: 8~16 mm Cladding Diameter 80~150 µm Splicing Mode Preset 17 modes / Max 128 modes Heating Mode Preset 6 modes / Max 32 modes Typical Splice Loss SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB / G.657: 0.02dB(ITU-T Standard) Return Loss >>60dB Lighting 3 White LEDs Splicing Time Auto mode : 9 sec / Quick mode : 7 sec Estimated Splice Loss Available Protection Sleeve Length 20~60 mm Heating Time FP-03 typical heating time: 30 sec Results Storage The last 2000 results Tension Test 1.96~2.25N Operating Condition Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50°C, Max Wind 15m/s Storage Condition 0~95% relative humidity, -40~80°C Display 90° bi-directional view, 5.0” Color High Resolution Display Fiber View & Magnification X, Y, XY, X/Y : 520X Magnification Power Supply AC Input 100-240V, DC Input 9-14V No. of Splice / Heating with Battery 4200mAh Battery Capacity, Typical 170 times (Splice+Heat) Operating Methods Button / Touch screen Automatic Calibration Automatic arc calibration by air pressure and temperature Electrode Life 3500 arcs, can be extended by using an electrode grinder Terminal USB2.0 / MINI USB
