Inno View 5 Core Alignment(Dacas) Fusion Splicer Kit New
| Generic | Class | Group | Type | Manufacturer | LOT |
| FUSION SPL | Fiber Optic Products | Fusion And Mechanical Splicing | Fiber Fusion Splicer | INNO INSTRUMENT | Fusion Splicers |
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

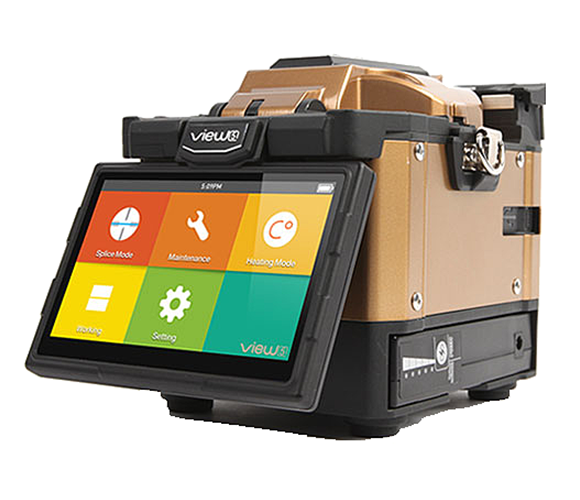

Inno View 5 Fusion Splicer
New Industry Standard For Core-Alignment Fusion Splicer
Core Alignment Splicing Method With Dacas (Digital Analysis Core Alignment System)
The Highest Magnification And Resolution
5" Color Lcd Touch Screen
Double Tapping (Zoom In & Out)
Detachable Soc Holder And Heating Oven
3 Bright Leds For Dark Environment
Ceramic Clamp For Improved Durability
Description View 5, A Core-Alignment Splicer With The World’S Highest Fiber Image Magnification Rate, Is The Most Dependable Fusion Splicer In The Market. View 5’S 5 Inch High-Resolution Color Lcd Touch Screen With User-Friendly Intuitive Gui (Graphic User Interface) Offers Large And Clear Fiber Images To Users. By Double-Tapping The Screen, Users Can Zoom In & Out The Image To The World’S Highest Magnification Of 520X. Also View 5’S Compatibility With Soc (Splice-On-Connectors) Will Bring Satisfactory Experiences To Users In Fttx Field. Moreover, The 3 Led Lights Provide Bright Splice Condition To The Users Working Under Dark Environments. View 5 Is The New Industry Standard Of Core-Alignment Splicer In The Telecommunications Industry.
Specifications Model View 5 Dimension 147H X 130W X 155D Mm Weight 2.21Kg (With Battery) / 1.85Kg (Without Battery) Number Of Fiber Single Applicable Fibers Sm(Itu-T G.652&G.657) / Mm(Itu-T G.651) / Ds(Itu-T G.653) / Nzds(Itu-T G.655) Compatible Fiber / Cable 0.25~.0 Mm / Indoor Cable Cleaved Length Diameter: 0.125~ Mm / Cleave Length: 8~6 Mm Cladding Diameter 80~50 Ìm Splicing Mode Preset 17 Modes / Max 128 Modes Heating Mode Preset 6 Modes / Max 32 Modes Typical Splice Loss Sm: 0.02Db / Mm:0.01Db / Ds:0.04Db / Nzds: 0.04Db / G.657: 0.02Db(Itu-T Standard) Return Loss >>60Db Lighting 3 White Leds Splicing Time Auto Mode : 9 Sec / Quick Mode : 7 Sec Estimated Splice Loss Available Protection Sleeve Length 20~0 Mm Heating Time Fp-03 Typical Heating Time: 30 Sec Results Storage The Last 2000 Results Tension Test 1.96~.25N Operating Condition Operating Altitude: 0~000M Above Sea Level, 0~5% Relative Humidity, -10~0°C, Max Wind 15M/S Storage Condition 0~5% Relative Humidity, -40~0°C Display 90° Bi-Directional View, 5.0” Color High Resolution Display Fiber View & Magnification X, Y, Xy, X/Y : 520X Magnification Power Supply Ac Input 100-240V, Dc Input 9-14V No. Of Splice / Heating With Battery 4200Mah Battery Capacity, Typical 170 Times (Splice+Heat) Operating Methods Button / Touch Screen Automatic Calibration Automatic Arc Calibration By Air Pressure And Temperature Electrode Life 3500 Arcs, Can Be Extended By Using An Electrode Grinder Terminal Usb2.0 / Mini Usb
Package Fusion Splicer View 5 High Precision Cleaver Vf-15H Fiber Holder Vfh-40 / Fh-Soc Ac Adapter Js-180300 Cooling Tray Cg-22 Electrode E-50 Manual Cd Cd Battery Pack Lbt-40 Power Cable Acc-25 Carrying Case Nbx-35 Stripper Cfs-2
Shipping Dimensions 23"X15"X14" Shipping Weight 24 Lbs
Description View 5, A Core-Alignment Splicer With The World’S Highest Fiber Image Magnification Rate, Is The Most Dependable Fusion Splicer In The Market. View 5’S 5 Inch High-Resolution Color Lcd Touch Screen With User-Friendly Intuitive Gui (Graphic User Interface) Offers Large And Clear Fiber Images To Users. By Double-Tapping The Screen, Users Can Zoom In & Out The Image To The World’S Highest Magnification Of 520X. Also View 5’S Compatibility With Soc (Splice-On-Connectors) Will Bring Satisfactory Experiences To Users In Fttx Field. Moreover, The 3 Led Lights Provide Bright Splice Condition To The Users Working Under Dark Environments. View 5 Is The New Industry Standard Of Core-Alignment Splicer In The Telecommunications Industry.
Specifications Model View 5 Dimension 147H X 130W X 155D Mm Weight 2.21Kg (With Battery) / 1.85Kg (Without Battery) Number Of Fiber Single Applicable Fibers Sm(Itu-T G.652&G.657) / Mm(Itu-T G.651) / Ds(Itu-T G.653) / Nzds(Itu-T G.655) Compatible Fiber / Cable 0.25~.0 Mm / Indoor Cable Cleaved Length Diameter: 0.125~ Mm / Cleave Length: 8~6 Mm Cladding Diameter 80~50 Ìm Splicing Mode Preset 17 Modes / Max 128 Modes Heating Mode Preset 6 Modes / Max 32 Modes Typical Splice Loss Sm: 0.02Db / Mm:0.01Db / Ds:0.04Db / Nzds: 0.04Db / G.657: 0.02Db(Itu-T Standard) Return Loss >>60Db Lighting 3 White Leds Splicing Time Auto Mode : 9 Sec / Quick Mode : 7 Sec Estimated Splice Loss Available Protection Sleeve Length 20~0 Mm Heating Time Fp-03 Typical Heating Time: 30 Sec Results Storage The Last 2000 Results Tension Test 1.96~.25N Operating Condition Operating Altitude: 0~000M Above Sea Level, 0~5% Relative Humidity, -10~0°C, Max Wind 15M/S Storage Condition 0~5% Relative Humidity, -40~0°C Display 90° Bi-Directional View, 5.0” Color High Resolution Display Fiber View & Magnification X, Y, Xy, X/Y : 520X Magnification Power Supply Ac Input 100-240V, Dc Input 9-14V No. Of Splice / Heating With Battery 4200Mah Battery Capacity, Typical 170 Times (Splice+Heat) Operating Methods Button / Touch Screen Automatic Calibration Automatic Arc Calibration By Air Pressure And Temperature Electrode Life 3500 Arcs, Can Be Extended By Using An Electrode Grinder Terminal Usb2.0 / Mini Usb
Package Fusion Splicer View 5 High Precision Cleaver Vf-15H Fiber Holder Vfh-40 / Fh-Soc Ac Adapter Js-180300 Cooling Tray Cg-22 Electrode E-50 Manual Cd Cd Battery Pack Lbt-40 Power Cable Acc-25 Carrying Case Nbx-35 Stripper Cfs-2
Shipping Dimensions 23"X15"X14" Shipping Weight 24 Lbs
If items is in stock it will ship same day- Images may not be of the actual item being sold.
