TEMPO 910FS SPLICER FUSION 52064876/783310013280 ( )
Available*
Item # 53870050
Model # 783310013280
$9,693.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Fusion Spl
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Fusion Splicer
Tempo Communications, Inc.
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

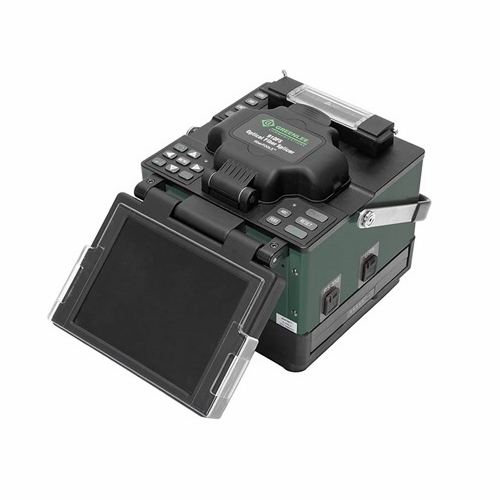

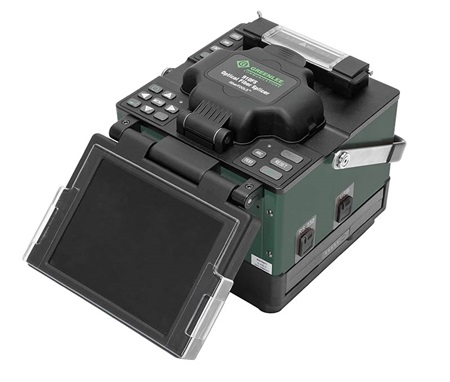

GREENLEE 910FS SPLICER FUSION 52064876/783310013280 (NEW)
DESCRIPTION:
Designed to meet virtually any FTTx application Features Core Alignment to minimize splice losses and rework time. With dual camaras, 240X magnification, and a large 5.7"color LCD, technicians can analyze cleaved fiber optic cable faster than ever. Up to 5,000 splice records can be stored, and the long-life, quick charged battery keeps on working even in remote locations. Optional Accessories and Replacement Parts 910FS-ELEC Replacement Electrodes 910FS-PS Replacement Power Supply 910FS-250 250 micron Adapter (Pair) 910FS-900 900 micron Adapter (Pair) 910FS-SOC-SC Splice On Connector Adapter (SC and LC) 910FS-BATT Battery (910FS)
SPECIFICATIONS:
Alignment : CORE Alignment Method : CORE Applicable Fibers : SM (G.652), MM (G.651), DS (G.653), NNZDS (G.655) BIF (G.657) Cladding Diameter : 80 TO 150um Cleaved Length : 10mm Connectivity : RS-232, USB Display : 5.7" Color, Turn-over LCD Display Magnification : 240X Environmental Conditions : 14øF to 122øF (-10øC to +50øC), HUMIDITY 0 TO 95%, PRESSURE 0 TO 16, 404' (0 TO 5000M) ABOVE SEA LEVEL Extra Monitor Connection : NO Fiber Count : 1 Model : 910FS Power Supply : 100 to 240VAC, Li ION Battery Protection Sleeve Length : 60mm, 40mm, MICRO SLEEVES Splice Loss : 0.02DB (SM), 0.01DB (MM), 0.04DB (DS), 0.04DB (NZDS) Splice Connector : SC AND LC Splice Time : 9 SECONDS Storage of Splice Results : 5000 Sub Brand : fiberTOOLS Tension Test : 2N Tube Heating Time : 36 SECONDS Weight : 6.92lbs (3.14kg) Includes : One (1) Rechargeable Li-ion Battery AC Adapter Spare Electrodes Fiber Adapters (250um, 900um, SC& LC SOC Adapter) Cooling Tray Transit Case Instruction Manual Warranty Card
CAT NO: 910FS UPC No: 783310013280 Products > Fiber Optic Instruments > Bench Top > Specials > SPLICER, FUSION (FG) (910FS)
DESCRIPTION:
Designed to meet virtually any FTTx application Features Core Alignment to minimize splice losses and rework time. With dual camaras, 240X magnification, and a large 5.7"color LCD, technicians can analyze cleaved fiber optic cable faster than ever. Up to 5,000 splice records can be stored, and the long-life, quick charged battery keeps on working even in remote locations. Optional Accessories and Replacement Parts 910FS-ELEC Replacement Electrodes 910FS-PS Replacement Power Supply 910FS-250 250 micron Adapter (Pair) 910FS-900 900 micron Adapter (Pair) 910FS-SOC-SC Splice On Connector Adapter (SC and LC) 910FS-BATT Battery (910FS)
SPECIFICATIONS:
Alignment : CORE Alignment Method : CORE Applicable Fibers : SM (G.652), MM (G.651), DS (G.653), NNZDS (G.655) BIF (G.657) Cladding Diameter : 80 TO 150um Cleaved Length : 10mm Connectivity : RS-232, USB Display : 5.7" Color, Turn-over LCD Display Magnification : 240X Environmental Conditions : 14øF to 122øF (-10øC to +50øC), HUMIDITY 0 TO 95%, PRESSURE 0 TO 16, 404' (0 TO 5000M) ABOVE SEA LEVEL Extra Monitor Connection : NO Fiber Count : 1 Model : 910FS Power Supply : 100 to 240VAC, Li ION Battery Protection Sleeve Length : 60mm, 40mm, MICRO SLEEVES Splice Loss : 0.02DB (SM), 0.01DB (MM), 0.04DB (DS), 0.04DB (NZDS) Splice Connector : SC AND LC Splice Time : 9 SECONDS Storage of Splice Results : 5000 Sub Brand : fiberTOOLS Tension Test : 2N Tube Heating Time : 36 SECONDS Weight : 6.92lbs (3.14kg) Includes : One (1) Rechargeable Li-ion Battery AC Adapter Spare Electrodes Fiber Adapters (250um, 900um, SC& LC SOC Adapter) Cooling Tray Transit Case Instruction Manual Warranty Card
CAT NO: 910FS UPC No: 783310013280 Products > Fiber Optic Instruments > Bench Top > Specials > SPLICER, FUSION (FG) (910FS)
