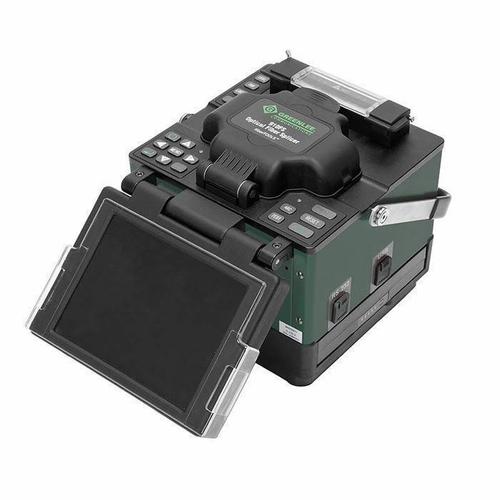

TEMPO 910FS-KIT1 KIT, FUSION SPLICER & CLEAVER 0FS) 52064875/783310014331 ( )
Available*
Item # 53870025
Model # 783310014331
$9,922.50
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Fusion Spl
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Fusion Splicer
Tempo Communications, Inc.
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

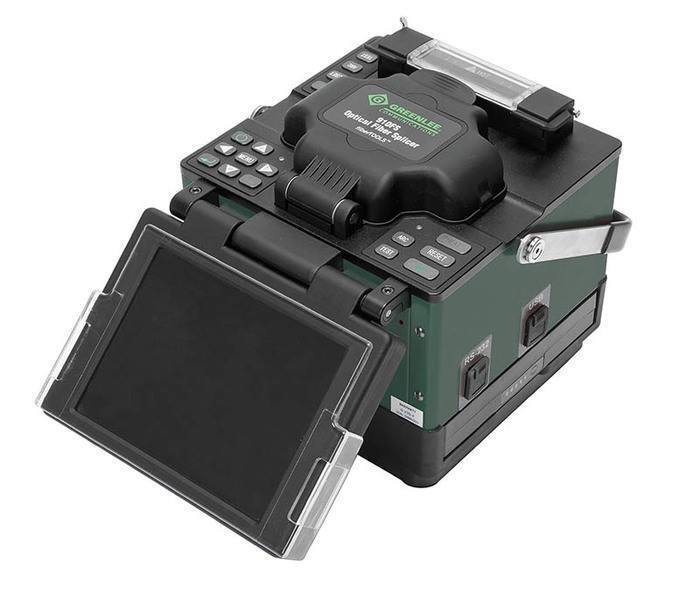

GREENLEE 910FS-KIT1 KIT, FUSION SPLICER & CLEAVER 0FS) 52064875/783310014331 NEW
DESCRIPTION:Designed to meet virtually any FTTx application
Features Core Alignment to minimize splice losses and rework time.
With dual camaras, 240X magnification, and a large 5.7"color LCD, technicians can analyze cleaved fiber optic cable faster than ever.
Up to 5,000 splice records can be stored, and the long-life, quick charged battery keeps on working even in remote locations.
Optional Accessories and Replacement Parts
910FS-ELEC Replacement Electrodes
910FS-PS Replacement Power Supply
910FS-250 250 Micron Adapter (Pair)
910FS-900 900 Micron Adapter (Pair)
910FS-SOC-SC Splice On Connector Adapter (SC and LC)
910FS-BATT Battery (910FS)
SPECIFICATIONS: Alignment : CORE
Alignment Method : CORE
Applicable Fibers : SM (G.652), MM (G.651), DS (G.653), NNZDS (G.655), BIF (G.657)
Cladding Diameter : 80 TO 150um
Cleaved Length : 10mm
Connectivity : RS-232, USB
Display : 5.7" Color, Turn-over LCD
Display Magnification : 240X
Environmental Conditions : 14øF to 122øF (-10øC to +50øC), HUMIDITY 0 TO 95%, PRESSURE 0 TO 16, 404' (0 TO 5000M) ABOVE SEA LEVEL
Extra Monitor Connection : NO
Fiber Count : 1
Model : 910FS
Power Supply : 100 to 240VAC, Li ION Battery
Protection Sleeve Length : 60mm, 40mm, MICRO SLEEVES
Splice Loss : 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)
Splice Connector : SC AND LC
Splice Time : 9 SECONDS
Storage of Splice Results : 5000
Sub Brand : fiber
TOOLS Tension Test : 2N
Tube Heating Time : 36 SECONDS
Weight : 6.92lbs (3.14kg)
Includes : 910FS Optical Fusion Splicer
910CL Optical Fiber Cleaver
CATNO: 910FS-KIT1 UPC No: 783310014331
