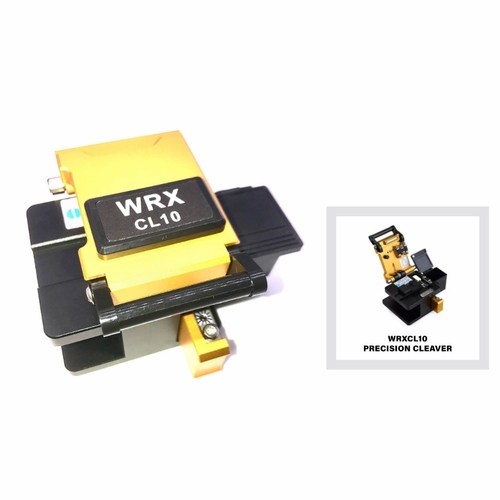

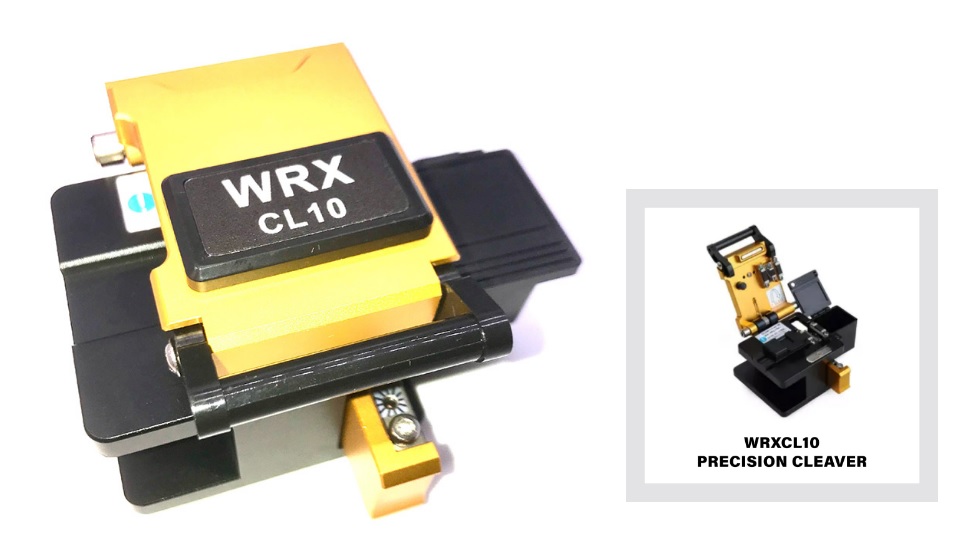

OPTIX AMERICA WRXCL10 Precision cleaver with bin for single and ribbon fiber
Available*
Item # 53760940
Model # WRXCL10
$371.25
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
OPTIX AMERICA WRXCL10 Precision cleaver with bin for single and ribbon fiber
OPTIX AMERICA WRXCL10 Precision cleaver with bin for single and ribbon fiber
Inttroducing the WRXCL10 high precision cleaver with removable bin offering high precision fiber cleaving for 250um, 900um, 2mm, 3mm, and ribbon cable up to 12 fibers. Work efficiency is maximized with simple two step operation and automatic blade reset. Universal adapter plate is included for all types of single fiber and will also accommodate industry standard removable fiber holders up to 12 fibers. Sixteen blade positions provide up to 48,000 fiber cleaves with simple blade adjustment and replacement.
Features - High precision cleaver with removable bin - Stable operation with typical cleave angle 90 degrees +/- 0.5 degrees. - Cleaves single and ribbon cable - Includes adapter plate for cleaving 250um, 900um, 2mm, and 3mm cable - High precision cleaving blade with sixteen blade positions for 48,000 cleaves - Small and Lightweight - Anvil opens high for clear visibilty - Automatic blade reset for work efficiency - Easy blade rotation and adjustment - Compatible with industry standard fiber holders
Specifications Parameter Value Applicable Fiber: 250um, 900um, 2mm, 3mm, ribbon cable up to 12 fibers. Fiber Cleave Length: 9mm - 16mm Fiber Cleave Angle: 90 degrees +/- 0.5 degrees Holder: Universal fiber adapter plate Weight: 350g (0.77 lbs) Dimensions: 63mm x 76mm x 63mm (2.48 x 3 x 2.48 inches)
Ordering Information Part Number WRXCL10 Description Precision cleaver with bin and fiber adapter plate.
OPTIX AMERICA WRXCL10 Precision cleaver with bin for single and ribbon fiber
Inttroducing the WRXCL10 high precision cleaver with removable bin offering high precision fiber cleaving for 250um, 900um, 2mm, 3mm, and ribbon cable up to 12 fibers. Work efficiency is maximized with simple two step operation and automatic blade reset. Universal adapter plate is included for all types of single fiber and will also accommodate industry standard removable fiber holders up to 12 fibers. Sixteen blade positions provide up to 48,000 fiber cleaves with simple blade adjustment and replacement.
Features - High precision cleaver with removable bin - Stable operation with typical cleave angle 90 degrees +/- 0.5 degrees. - Cleaves single and ribbon cable - Includes adapter plate for cleaving 250um, 900um, 2mm, and 3mm cable - High precision cleaving blade with sixteen blade positions for 48,000 cleaves - Small and Lightweight - Anvil opens high for clear visibilty - Automatic blade reset for work efficiency - Easy blade rotation and adjustment - Compatible with industry standard fiber holders
Specifications Parameter Value Applicable Fiber: 250um, 900um, 2mm, 3mm, ribbon cable up to 12 fibers. Fiber Cleave Length: 9mm - 16mm Fiber Cleave Angle: 90 degrees +/- 0.5 degrees Holder: Universal fiber adapter plate Weight: 350g (0.77 lbs) Dimensions: 63mm x 76mm x 63mm (2.48 x 3 x 2.48 inches)
Ordering Information Part Number WRXCL10 Description Precision cleaver with bin and fiber adapter plate.
