NOT AFL CT08 PRECISION SINGLE FIBER CLEAVER S017004 CT-08 PER AFL WILL NOT DO RIBBON
Available*
Item # 53725900
Model # S017004
$891.34
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Cleaver
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Cleavers
Generic Manufacturer
Fiber Cleavers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

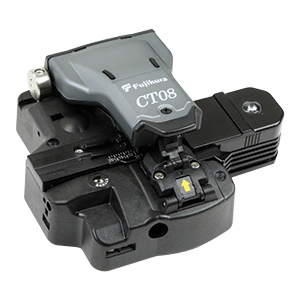

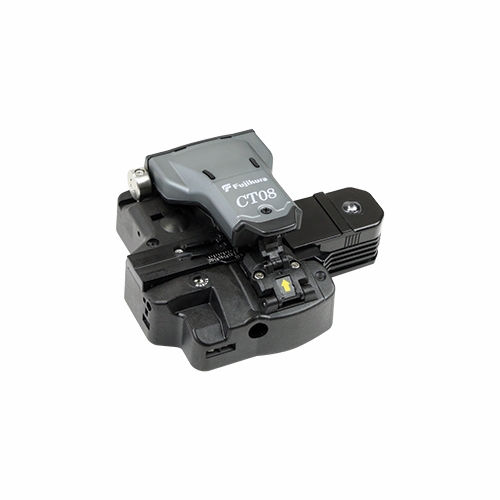

The CT08 cleaver is an extremely rugged, durable, and easy to use single fiber cleaver.
Ideal for FTTH applications, the CT08 provides unmatched levels of impact resistance and
also eliminates the requirement for tools during blade rotation. A thumbwheel on the
bottom of the cleaver is utilized for blade rotation, and the blade position indicator has
been relocated to enable quick and easy viewing. The top clamp opens to a position past
vertical allowing for easy viewing, cleaning, and adjustment of the cleave length. The blade
is retracted automatically when opening the top clamp and is activated upon closing,
making this a true one-step cleaver. The cleaver blade and fiber clamping mechanism
is extremely easy to replace in the field. A manual scrap collector is included.
Features Dedicated for single fiber cleaving Ruggedized design withstands extreme shock levels Tool free blade rotation Simple one-step operation Blade life of 48,000 cleaves Blade and clamp/anvil assembly are field serviceable
CT08 Fiber Cleaver Specifications PARAMETER VALUE Applicable Fiber Conventional silica optical fiber Fiber Count Single fiber Coating Diameter 0.25 to 0.9 mm Cladding Diameter 125 um Cleave Length 5-20 mm with AD-50 adapter plate and 10 mm when using fiber holders Cleave Angle Capability Typical 0.5вк Dimensions (W x D x H) 110(W) x 95(D)x 45(H) mm Weight 185 g (0.41 lbs) Blade Lifetime 48,000 fibers (1,000 fibers x 3 heights x 16 positions)
Ordering Information DESCRIPTION CT08 Includes: AD-50 Adapter Plate, CC-34 Carrying Case, Hex Wrench, Scrap Collector and Instruction Manual
APPLICATION Single Fibers: 250 to 900 um coating, 125 um cladding
FIBER HANDLING SYSTEM Purchased separately FH-50-250, FH-60-250, FH-50-900, FH-60-900
CLEAVE LENGTH 5-20mm with AD-50 adapter plate 10 mm with fiber holders
AFL NO. S017004
Accessories DESCRIPTION AFL NO. AD-50 Single Fiber Adapter Plate S017010 AD-10-M24 Fiber Plate S017335 SPA-CT08-10 Spacer S017011 CC-34 Transit Case S017012 CB-07 Replacement Blade for CT08 Cleaver S017013 ARM-CT08-01 Replacement Arm Set S017014 SC-CT08-01 Side Cover S017015 BRW-CT08-01 Blade Rotary Wheel S017110 FDB-04 Fiber Dust Box S017120
Features Dedicated for single fiber cleaving Ruggedized design withstands extreme shock levels Tool free blade rotation Simple one-step operation Blade life of 48,000 cleaves Blade and clamp/anvil assembly are field serviceable
CT08 Fiber Cleaver Specifications PARAMETER VALUE Applicable Fiber Conventional silica optical fiber Fiber Count Single fiber Coating Diameter 0.25 to 0.9 mm Cladding Diameter 125 um Cleave Length 5-20 mm with AD-50 adapter plate and 10 mm when using fiber holders Cleave Angle Capability Typical 0.5вк Dimensions (W x D x H) 110(W) x 95(D)x 45(H) mm Weight 185 g (0.41 lbs) Blade Lifetime 48,000 fibers (1,000 fibers x 3 heights x 16 positions)
Ordering Information DESCRIPTION CT08 Includes: AD-50 Adapter Plate, CC-34 Carrying Case, Hex Wrench, Scrap Collector and Instruction Manual
APPLICATION Single Fibers: 250 to 900 um coating, 125 um cladding
FIBER HANDLING SYSTEM Purchased separately FH-50-250, FH-60-250, FH-50-900, FH-60-900
CLEAVE LENGTH 5-20mm with AD-50 adapter plate 10 mm with fiber holders
AFL NO. S017004
Accessories DESCRIPTION AFL NO. AD-50 Single Fiber Adapter Plate S017010 AD-10-M24 Fiber Plate S017335 SPA-CT08-10 Spacer S017011 CC-34 Transit Case S017012 CB-07 Replacement Blade for CT08 Cleaver S017013 ARM-CT08-01 Replacement Arm Set S017014 SC-CT08-01 Side Cover S017015 BRW-CT08-01 Blade Rotary Wheel S017110 FDB-04 Fiber Dust Box S017120
