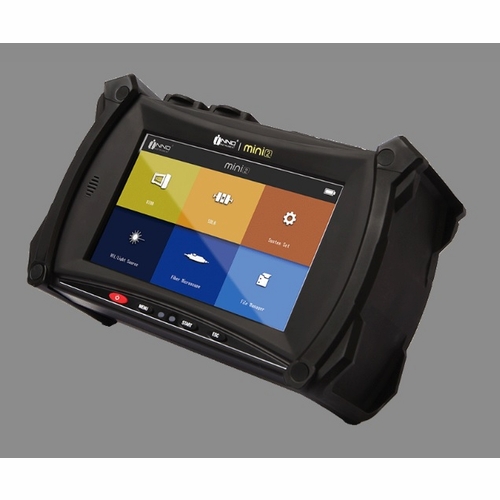

INNO MINI 2 OTDR SM 1625 live fiber only port dB, APC, VISUALIZER, TOUCH SCREEN *NO SCOPE*
Available*
Item # 53538907
Model # MINI 2 APC1625
$3,375.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Otdr
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber OTDR- OSA
INNO Instrument
Fiber OTDR Singlemode
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

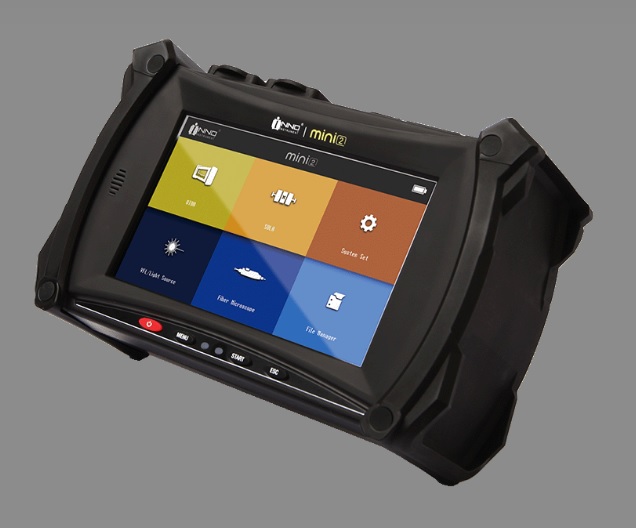

INNO MINI 2 OTDR SM 1625 live fiber only port dB, APC, VISUALIZER, TOUCH SCREEN *NO SCOPE* NEW
INNO MINI 2 OTDR SM 1625 live fiber only port dB, APC, VISUALIZER, TOUCH SCREEN *NO SCOPE* NEW
ITEM # MINI 2 OTDR INNO SM 1625 live fiber only port dB, APC, VISUALIZER, TOUCH SCREEN *NO SCOPE*
The MINI2 OTDR is used in the installation and maintenance of fiber optic cables. Features of the MINI2 OTDR include high precision test capabilities, fast response times, and easy to learn operation. The multi-point capacitive touch screen allows for user-friendly operation. The MINI2 OTDR offers accurate and fast test results and creates a report automatically. The MINI2 OTDR’s compact design, delivers a lightweight, truly hand-held device.
Specification Overview
OTDR
Display Size 5 inches, High Brightness TFT LCD, resolution of 800×480 Distance Units m / km / mile / ft Range Settings SMF1 : 32/30dB (1310/1550nm) / SMF2 : 30dB (1625nm Live) Pulse Widths 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1µs, 2µs, 10µs, 20µs Linearity 0.03dB Resolution 0.04m ~ 10.24m Sampling Points 110,000 points Output Power 20mW
Dimensions Size (HWD) 4.52H x 6.81W x 2.51D inches Weight 1.98 pounds (900 g with battery)
Package & Accessories
Product Type Power Cable ACC-25 AC Adapters JS-180300 Carrying Case ICC-71 Shoulder Strap ST-01
Optional Accessories Type Microscope V20 Power Meter V30
INNO MINI 2 OTDR SM 1625 live fiber only port dB, APC, VISUALIZER, TOUCH SCREEN *NO SCOPE* NEW
ITEM # MINI 2 OTDR INNO SM 1625 live fiber only port dB, APC, VISUALIZER, TOUCH SCREEN *NO SCOPE*
The MINI2 OTDR is used in the installation and maintenance of fiber optic cables. Features of the MINI2 OTDR include high precision test capabilities, fast response times, and easy to learn operation. The multi-point capacitive touch screen allows for user-friendly operation. The MINI2 OTDR offers accurate and fast test results and creates a report automatically. The MINI2 OTDR’s compact design, delivers a lightweight, truly hand-held device.
Specification Overview
OTDR
Display Size 5 inches, High Brightness TFT LCD, resolution of 800×480 Distance Units m / km / mile / ft Range Settings SMF1 : 32/30dB (1310/1550nm) / SMF2 : 30dB (1625nm Live) Pulse Widths 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1µs, 2µs, 10µs, 20µs Linearity 0.03dB Resolution 0.04m ~ 10.24m Sampling Points 110,000 points Output Power 20mW
Dimensions Size (HWD) 4.52H x 6.81W x 2.51D inches Weight 1.98 pounds (900 g with battery)
Package & Accessories
Product Type Power Cable ACC-25 AC Adapters JS-180300 Carrying Case ICC-71 Shoulder Strap ST-01
Optional Accessories Type Microscope V20 Power Meter V30
