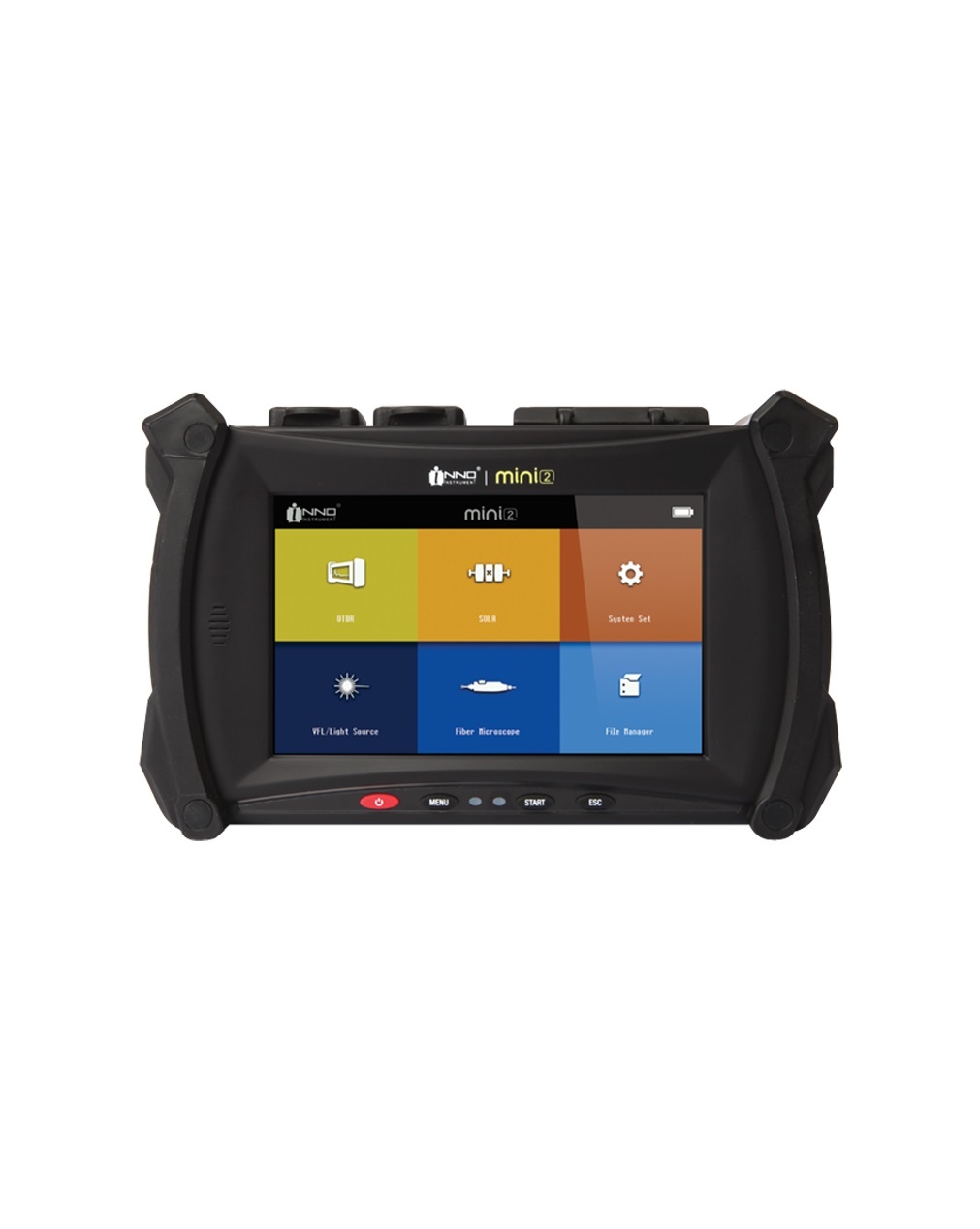

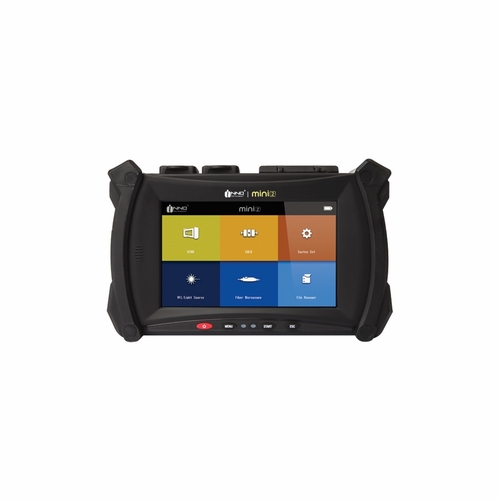

INNO MINI 2 OTDR SM 1310-1550 32/30 dB, UPC, VISUALIZER, TOUCH SCREEN
Available*
Item # 53538905
Model # MINI 2 UPC
$2,800.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Otdr
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber OTDR- OSA
INNO Instrument
Fiber OTDR Singlemode
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Saves up to 2,000 traces.
MINI 2 ***UPC CONNECTOR*** Most Accurate Compact OTDR
This compactly designed and lightweight MINI2 OTDR features high precision test capabilities, fast response time and user-friendly operation with the multi-point capacitive touch screen. The MINI2 OTDR offers accurate and fast test results and creates a report automatically. Now it’s time for you to experience this small but accurate OTDR.
OTDR OTDR mode allows for measuring distance, loss, reflectivity, attenuation and accumulation loss on a fiber optical link.
SOLA SOLA is an application for the OTDR, designed to simplify OTDR test process without the need to configure the parame-ters or analysis while parsing multiple complex OTDR curves.
VFL VFL allows for finding direct fault locations in fiber test dead zones or performing fiber core calibration in multi-fiber cables.
FIBER MICROSCOPE Fiber end tester (peripheral required) is mainly used to test the cleanliness and flatness of the fiber end face.
FILE MANAGER File Manager can provide powerful file management that users can manage their files conveniently.
LIGHT SOURCE Invisible light source (1310 or 1550ns) can provide the following types of light, including CW light, 1kHz light, 2kHz light, 1kHz blink light, 2kHz blink light.
Display 5 inches, High Brightness TFT LCD, resolution of 800×480 Dyanmic Range 32dB/ 30 dB (1310/ 1550nm) Measurement Range kM 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360km Measurement Range Mile 0.81, 1.55, 3.11, 6.22, 12.4, 24.8, 49.6, 74.6, 99.4, 223.7mile Pulse Width 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1ìs, 2ìs, 10ìs, 20ìs Event dead zone 1m Attenuation dead zone 5m PON dead zone 50m Distance accurancy ±(1m+Distance×2.5×10-5 +Sampling resolution) VFL distance Up to 15km
***DOES NOT INCLUDE V20***
21"x16"x10" 15 lbs
