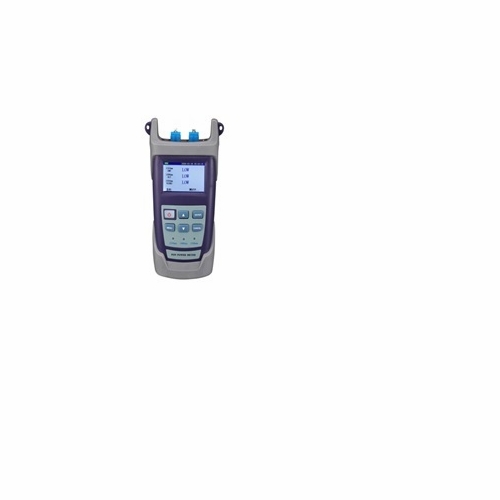

RUIYAN RY-P100-PON OPTICAL POWER METER ST-FC CONNECTOR
Available*
Item # 53489900
Model # RY-P100
$337.50
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Power Mtr
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Power Meter
Ruiyan Communications Equipment Co, Ltd
Fiber Optic Power Meter
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
RUIYAN RY-P100-PON OPTICAL POWER METER ST-FC CONNECTOR NEW PON optical power meter is a tester designed for design, operation and maintenance of FTTX network. It is able to concurrently measure the optical power values of voice, data and video signals. It is an ideal choice for the construction and maintenance of FTTX network works.
Calibrating wave length 1310 upstream measurement 1490 downstream measurement 1550 downstream measurement Spectral passband (nm) 1260`1360 1470`1505 1535`1570 Measurement range (dBm) -40`+10 -40`+10 -40`+20 Isolation 1310nm (dB) - >40 >40 Isolation 1490nm (dB) >40 - >30 Isolation 1550nm (dB) >40 >40 -
Measurement accuracy Connatural uncertainty (dB) +/- 0.5 PDL (dB) <+/- 0.25 Linearity (dB) +/- 0.1 Pass through insertion loss (dB) <1.5
Calibrating wave length 1310 upstream measurement 1490 downstream measurement 1550 downstream measurement Spectral passband (nm) 1260`1360 1470`1505 1535`1570 Measurement range (dBm) -40`+10 -40`+10 -40`+20 Isolation 1310nm (dB) - >40 >40 Isolation 1490nm (dB) >40 - >30 Isolation 1550nm (dB) >40 >40 -
Measurement accuracy Connatural uncertainty (dB) +/- 0.5 PDL (dB) <+/- 0.25 Linearity (dB) +/- 0.1 Pass through insertion loss (dB) <1.5
