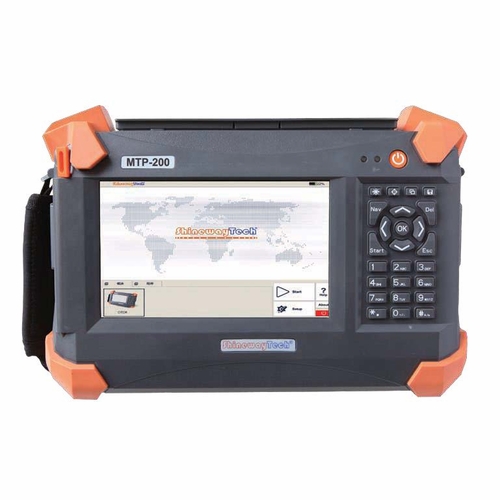

Shi Aytech Mtp-200-Cwdm-4E 1471/1491/1511/1531 Hand-Held High Performance Otdr

Shinewaytech Hand-Held High Performance Otdr

Up To 18 Cwdm Wavelengths In One Otdr

Multi-Function And High Performance Otdr Testing �� Up To 18 Cwdm Wavelengths, Customizable �� Dynamic Range Up To 36Db �� Short Zone: Edz 1M, Adz 4M �� Auto/Manual Test And Analysis �� Multi-Wavelength Testing �� Visible Laser Source Function �� Fault Locating, Fiber Length/Loss/Return Loss Measurement, Connector/ Splice/ Splitter/ Macro Bend/Fiber-End Detection �� Gr-196-Core (.Sor) File Format �� Sor And Jpg File Format �� Flexible File Naming �� Linkimage Smart Graphic Analysis

Optimized Platform Performance �� Lightweight, 2.1Kg �� 7 Inch Touch Screen �� Windows User Interface For Easy Operation �� Damp-Dust-Shock Proof �� Multi Traces Analysis �� Single/Multi Traces Printing In One Report �� Batch Editing And Printing �� Bidirectional Traces Analysis �� Csv Report Formats �� Remote Control Function �� 10 Hours Continuous Operation �� Supports Wifi/Bluethooth/Gps �� Direct Printing Function(Compatible With Pcl Printers) �� Remote/Local Control By Pc

Mtp Suite Pc Software �� Multi Traces Analysis �� Single/Multi Traces Printing In One Report �� Batch Editing And Printing �� Bidirectional Traces Analysis �� Csv Report Formats �� Remote Control Function

Network Remote Control Module (Optional) �� Convenient Networking �� Remote Control Instrument Operation

Optical Connector Inspector Module (Optional) �� Focusing Knob For Fast Focus �� Eye-Safe And Clear Video Viewing �� Interchangeable Connector Tips

Stabilized Laser Source Module (Optional) �� Wavelength Same As The Otdr �� High Precision And Easy Operation

Optical Power Meter Module (Optional) �� Multi-Wavelength Calibration �� High Precision �� Convenient Operation

Applications �� Installation Stage �� Service Deployment �� Maintenance Stage

Mtp-200 Series Display 7 Inch Tft Touch Screen (800�480) Connectivity Usb�2; 10/100Mbit/S Rj-45�1 Memory 2Gb Power Supply Rechargeable Li-Ion Battery/Ac Adapter Battery Life 10 Hours Continuous Operation Working Temp. -20�C - 50�C Storage Temp. -40�C - 60�C Humidity 0 - 95% (Non-Condensing) Weight 2.1Kg Dimensions (L�W�H ) 290�175�75Mm

Otdr Module Wavelength(1) Mtp-200-Cwdm-4A 1271/1291/1311/1331 Mtp-200-Cwdm-4B 1351/1371/1391/1411 Mtp-200-Cwdm-4C 1351/1411/1431/1451 Mtp-200-Cwdm-4D 1431/1451/1471/1491 Mtp-200-Cwdm-4E 1471/1491/1511/1531 Mtp-200-Cwdm-4F 1511/1531/1551/1571 Mtp-200-Cwdm-4G 1551/1571/1591/1611 Mtp-200-Cwdm-8A 1471/1491/1511/1531/1551/1571/1591/1611 Mtp-200-Cwdm-16 1271/1291/1311/1331/1351/1411/1431/1451/1471/1491/1511/1531/1551/1571/1591/1611 Mtp-200-Cwdm-18 1271/1291/1311/1331/1351/1371/1391/1411/1431/1451/1471/1491/1511/1531/1551/1571/1591/1611 Dynamic Range(2) 36Db Dead Zone(3) Edz: 1M, Adz: 4M Selectable Range Sm: 0.3, 1.3, 2.5, 5, 10, 20, 40, 80, 160, 240Km Pulse Width Sm: 5Ns,10Ns, 30Ns, 100Ns, 300Ns,1?�s, 2.5?�s,10?�s, 20?�s Sampling Points 256000 Averaging Time Quick, 15S, 30S, 45S, 60S, 90S, 120S, 180S Connector Fc/Pc (Interchangeable Sc, St And Lc ) Distance Accuracy �}(0.75M + 5X10-5 X Distance +Sampling Resolution) Attenuation Accuracy �}0.05 Db/Db Reflection Accuracy �}4 Db Visible Laser Source Output Power: . -3Dbm Mod Frequency: 1Hz Detecting Range: 5Km

Mci100 Optical Connector Inspector Module (Optional) Field Of View 400?�m�~300?�m Resolution .1.5?�m Focusing Manual Focus

Microscope Dimensions O32�~175Mm

Ls100 Stabilized Laser Source (Optional) Wavelength (+/- 20Nm) Same As Otdr�'S Output Power >/-7Dbm

Pm100 Normal Power Meter Module (Optional) Calibrated Wavelength 850Nm, 1300Nm, 1310Nm, 1490Nm, 1550Nm, 1625Nm, 1650Nm Measurement Range -70Dbm - +6Dbm (-60Dbm - +6Dbm @ 850Nm) Detector Type Ingaas Display Resolution 0.01Db Accuracy � 5% � 0.01Nw (�0.5Db@850Nm)

Notes (1) Wavelength Is Open For Customization (2) Dynamic Range Measurement At 20�s Pulse Width And 180S Averaging Time; (3) Dead Zone Measurement At 0.6Km And Reflection <-45Db; Edz Measurement At 5Ns, Adz Measurement At 10Ns.

Standard Package Mtp-200 Host, Lithium Battery, Cd, Software, Data Cable, Carrying Case, Warranty Card, Calibration Certificate

Optional Module: Ls100: Stabilized Laser Source Module (As Otdr) Pm100: Optical Power Meter Module Mci100: Optical Connector Inspector Module Rc100: Remote Control Module Lm100: Link Image ModuleRead More
