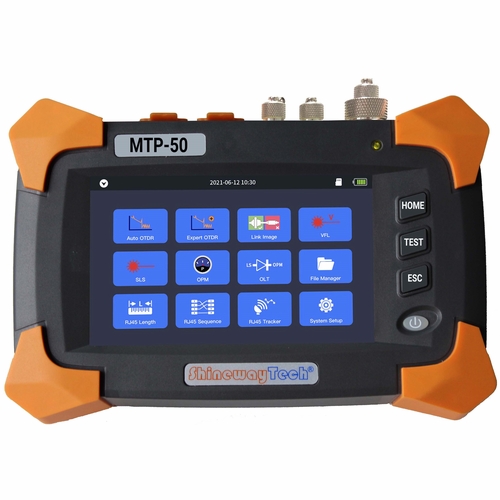

SHI AYTECH MTP-50A FTTH OTDR VFL, LS, OPM, 1310/1550 24/22

MTP-50A basic version, built in Visual Fault Locator, Stabilized Laser source, Optical Power Meter, Optical Loss Teste

MTP-50 Series Handheld OTDR Most compact, versatile, easy-to-use, cost-effective OTDR

MTP-50 series OTDR offers more testing capacities, flexibility and value with combination of optical fiber testing and RJ45 cable testing functions together which includes Auto OTDR, Expert OTDR, Link Image, Optical Power Meter, Stabilized Laser Source, Optical Loss Test, Visual Fault Locator, RJ45 Cable Length, RJ45 Cable Sequence and RJ45 Cable Tracker. With considerate function of LED flashlight and high capacity of 6600mAh lithium battery, it helps the technicians operate OTDR in dark environment and at remote work site without worrying about running out of battery power. MTP-50 series OTDR is your ideal test instrument for optical fiber installation and maintenance which meets various testing requirements of entire fiber network.

Key Features:

Compact, handheld, lightweight & easy to use 5 inch capacitive touch screen for easily operation and quick response Fast boot-up for fiber troubleshooting and restoration Multi-tasking operation which can perform OTDR, OPM and VFL function simltanueously Dual wavelength testing with dynamic range up to 28dB Short-distance performance with 1.5m event dead zone and 8m attenuation dead zone Auto OTDR/Expert OTDR/Averaging/Real time test Link Image - smart Icon-based map view by multi pulse widths acquisition Built-in Stabilized Laser Source, Optical Power Meter, Optical Loss Testing and VFL Optional RJ45 cable testing function supported: RJ45 cable length, RJ45 cable sequence and RJ45 cable tracker(Available for ADVANCED models) Pass/Fail assessment and ORL test function 8G memory card, supporting more than 200,000 test records storage OTDR trace file generation (.sor) PC software for batch data processing USB power charging and data transfer Screenshot easily in any interface 8 hrs continuous operation/20 hrs standby

Multi-touch touchscreen 5.0 inch multi-touch capacitive touchscreen can make OTDR operations simple and intuitive. The technicans can easily tap, pinch and drag by fingers with quick OTDR response

OTDR View Modes MTP-50 series OTDR can generate and display events by tradational TRACE view and MAP view. Tradational TRACE view is showed by OTDR waveforms and event markers while MAP view is with simple, icon-based map for easy interpretatation of fiber network events.





Auto OTDR Simply pressing one single button, powering by fully automated and optimized test parameter setup, MTP-50 series OTDR can process OTDR measurement, detects and comprehensively analyze network events with PASS/FAIL judgement based on user-defined thrsholds. It greatly helps OTDR beginners operate OTDR more efficiently.

Expert OTDR OTDR test parameters can be set manully depending on test requirements or the technicians skill level. The fiber trace is displayed and results are listed in event table including total fiber length, total link loss, fiber attenuation, etc.

Link Image Link Image software helps technicians use an OTDR more efficiently, without the need to understand or interpret OTDR results. Measurement acquistions with multi pulse widths and smart algorithm enable the technicians to detect and comprehensively characterize netowrk events by pressing one single button. Simple icon-based map view for easy interpretation of network events with PASS/FAIL judgement as per user-defined thresholds.

" Icon-based fiber link view of all events " Automatic pass/fail results " Eliminates the need for OTDR expertise



Visual Fault Locator Outputs red light for checking continuity of launch fibers or short patch cord. Breaks and bending in fiber can be identified visually.









Optical Power Meter

" No warm-up " High accuracy, zero shift " Reference setting " Absolute power value and power loss measurement







Stabilized Laser Source Stabilized Laser Source shares OTDR optical port and work on the same working wavelength of OTDR. The output power can be adjustable for different testing applications. With modulated light at 270Hz/330Hz/1kHz/2kHz, it can be used for fiber identification or continounity check purpose on a live fiber network.













Optical Loss Test Optical loss test is a key basic function for confirming the optic fiber installation condition and fault status. Light source shares with OTDR ports outputs laser light. The optical power meter function is embeded into a separate port which supports optical loss measurement by one single tester.





RJ45 Cable Test (Available for ADVANCED models)



Optimized Interface design



USB Power Charging and Data Transfer USB port can be used for power charging and data transfer which is very convenient for technicians operation in the filed. No need to carry a bulky AC adaptor anymore and even can be charged by portable power bank.

Multi-tasking Leveraged by excellent hardware design, the technicans can perform multiple functions simultaneously. For exmple, the technicans can conduct OTDR testing on a particular fiber while checking the power level by OPM function or identifying the fiber with VFL function simltanueously on other fiber cores.

Multi-language User Interface Supported with Mutli-language user interface, the technicians can operate MTP-50 series OTDR with their native language easily and smoothly.

Simple Firmware Upgrades Firmware upgrades can be performed easily via USB Type C port which connecting with PC.

OTDR Trace Manager Software TraceManager software can display, analyze and edit trace files, generate and print comprehensive test and analysis reports in various forms.

" Trace viewing, events analysis " Batch editing and flexible printing " Trace viewing, events analysis " Multi traces comparison " Batch editing and flexible printing " CSV/ASCII report formats









OTDR Specifications Model (1) Wavelength (±20nm) Dynamic Range(2) EDZ (m)(3) ADZ (m)(3) Basic Advanced MTP-50-S20A MTP-50-S20A-R 1310/1550 24/22dB 1.5 8 MTP-50-S20B MTP-50-S20B-R 1310/1550 28/26dB 1.5 8 Selectable Range 0.5,1,2,4,8,16,32,64,100KM Pulse Width 3ns~20us Averaging Time 5s, 15s, 30s, 1min, 2min, 3min Distance Measure Accuracy ±(1m + 5×10-5×distance + sampling space) Attenuation Detect Accuracy ±0.05 dB/ dB Reflection Detect Accuracy ±3 dB Sampling Points 16,000~256,000 Sampling Resolution 0.05~8m Refractive Index 1.00000~2.00000 Loss Resolution 0.001dB Loss Threshold 0.01dB Connector SC/UPC(Interchangeable FC, ST) Multi-tasking Support

Functional Module Specifications Visual Fault Locator Wavelength (±20nm) 650nm Output Power (dBm) ?10mW MOD CW/1Hz/2Hz Connector Universal 2.5mm Stabilized Laser Source Wavelength (±20nm) Same as OTDR working wavelength(4) Output Power (dBm) ?+3dBm?-10dBm?±2dB(adjustable) MOD CW/270/330/1K/2KHz Stability CW, ±0.5dB/15min(After 15 min warming up) Connector FC/UPC(Interchangeable SC, ST) Optical Power Meter Calibrated Wavelength (nm) 850,980,1300,1310,1490,1550,1625,1650 Power Range (dBm) -70 ~ +6 Detector Type InGaAs Display Resolution 0.01dB Accuracy ± 5% Frequency Identification CW/270/330/1K/2KHz Connector Universal 2.5mm Optical Loss Test Stabilized Laser Source Same as SLS Module Optical Power Meter Same as OPM Module IL Test Support RJ 45 Cable Length Test (5) Test Distance ?300m RJ 45 Cable Sequence Test (5) Sequence Test Support RJ 45 Cable Tracker (5) Mode Digital tracking Distance ?300m Online/Line Pair Tracking Support

General Specifications Display 5 inch color LCD, Multi-touch capacitive touchscreen Power Supply Lithium Battery: 3.7V, 6600mAh AC Adapter: 5VDC, 2A Battery Life 8 hours continuous operation, 20 hours standby Data Storage 8G, ?200,000 records Data Interface USB Type C Operating Temperature -10? ~ 50? Storage Temperature -40? ~ 70? Relative Humidity 0~95% (non-condensing) Weight 0.7kg(Including battery) Dimensions (H×W×T) 190×130×65mm

* Specifications subject to change without notice

Notes: (1) Specifications describe the instrument's warranted performance, measured with typical UPC type connectors. Uncertainties due to the refractive index of fiber are not considered. (2) The dynamic range is measured at maximum pulse width and averaging time of 3 minutes. (3) Conditions for dead zone measurement: minimum range, minimum pulse width, reflection intensity is less than -45dB, typical value. (4) Stabilized laser source shares OTDR optical port and work on the same OTDR wavelength. (5) Visual Fault Locator, Stabilized Laser source, Optical Power Meter, Optical Loss Test is standard on BASIC and ADVANCED models. RJ45 cable length, RJ45 cable sequence and RJ45 cable tracker is standard on ADVANCED models only.

Ordering Information Standard Package Includes: Instrument, SC/UPC connector, Lithium battery, Trace Manager software CD, USB Data cable, AC adaptor, Soft carrying case, Warranty card, Certificate of calibration.
