OWL WT-1 WaveTester optical power meter with data storage
Available*
Item # 53419610
Model # WT-1
$455.63
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

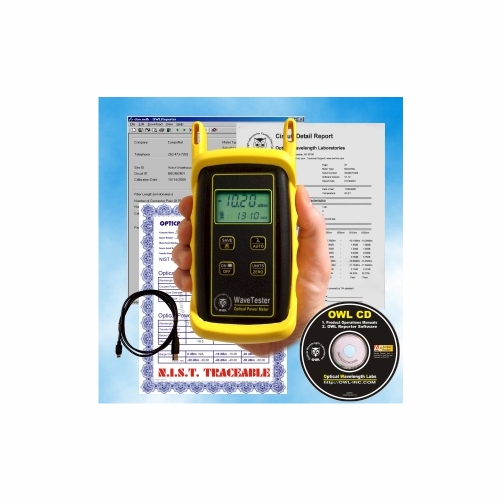

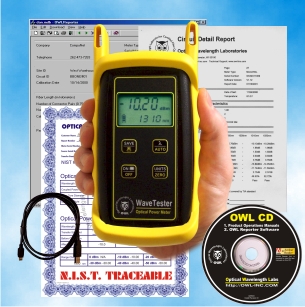

OWL OPTICAL WAVELENGTH LABORATORIES WT-1 WaveTester optical power meter with data storage NEW
FEATURES: 1mm photodetector with 2.5mm universal adapter (ST, SC, and FC) Multimode and singlemode ready Backlit graphic LCD display with intuitive user interface Simple 4-key operation Power measurements shown in dBm, dB, or microwatts Stores optical references for each wavelength to be used for optical loss testing Long battery life - over 250 hrs on one 9v battery Data storage for 200 points USB interface for continuous data logging, report printing, or data downloading OWL OPTICAL WAVELENGTH LABORATORIES S Reporter software for downloading data and printing formatted fiber certification reports Optional integrated visual fault locator (VFL)
APPLICATIONS: The WaveTester is a high accuracy, high resolution, microprocessor controlled, optical power meter. It has a 65dB dynamic range, and is NIST traceable at 850, 1300, 1310, and 1550nm, making it ideal for both singlemode and multimode fiber testing. Additionally, it comes calibrated at 1490nm, allowing the meter to measure optical loss at the wavelengths used in Fiber To The Home (FTTH) PON networks. It has an attractive handheld case with a backlit, graphic, liquid crystal display, and 4-key keypad for easy operation. It is offered with a 2.5mm universal fiber connector, will operate for over 250 hours on a standard high-capacity 9v battery, and has built-in auto shutdown. The WaveTester will store reference values for each wavelength to be used for optical loss measurements, and can store up to 200 measured data points. Stored data can be downloaded to our free OWL OPTICAL WAVELENGTH LABORATORIES S Reporter software to produce formatted certification reports. Optionally, the battery charging port in the WaveTester can be replaced with a precision-coupled visual fault locator that is optimized for fiber optics. Its high-intensity red laser allows for fiber identification up to 1.5 kilometers away. This optional VFL port can also be used to check for faults within a few feet of its launch point. When the bright red light encounters a fault, the light is deflected into the jacket, producing a red glow at the point of the fault.
FEATURES: 1mm photodetector with 2.5mm universal adapter (ST, SC, and FC) Multimode and singlemode ready Backlit graphic LCD display with intuitive user interface Simple 4-key operation Power measurements shown in dBm, dB, or microwatts Stores optical references for each wavelength to be used for optical loss testing Long battery life - over 250 hrs on one 9v battery Data storage for 200 points USB interface for continuous data logging, report printing, or data downloading OWL OPTICAL WAVELENGTH LABORATORIES S Reporter software for downloading data and printing formatted fiber certification reports Optional integrated visual fault locator (VFL)
APPLICATIONS: The WaveTester is a high accuracy, high resolution, microprocessor controlled, optical power meter. It has a 65dB dynamic range, and is NIST traceable at 850, 1300, 1310, and 1550nm, making it ideal for both singlemode and multimode fiber testing. Additionally, it comes calibrated at 1490nm, allowing the meter to measure optical loss at the wavelengths used in Fiber To The Home (FTTH) PON networks. It has an attractive handheld case with a backlit, graphic, liquid crystal display, and 4-key keypad for easy operation. It is offered with a 2.5mm universal fiber connector, will operate for over 250 hours on a standard high-capacity 9v battery, and has built-in auto shutdown. The WaveTester will store reference values for each wavelength to be used for optical loss measurements, and can store up to 200 measured data points. Stored data can be downloaded to our free OWL OPTICAL WAVELENGTH LABORATORIES S Reporter software to produce formatted certification reports. Optionally, the battery charging port in the WaveTester can be replaced with a precision-coupled visual fault locator that is optimized for fiber optics. Its high-intensity red laser allows for fiber identification up to 1.5 kilometers away. This optional VFL port can also be used to check for faults within a few feet of its launch point. When the bright red light encounters a fault, the light is deflected into the jacket, producing a red glow at the point of the fault.
