OWL MO-2 Micro OWL 2 optical power meter with data storage
Available*
Item # 53419590
Model # MO-2
$653.06
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

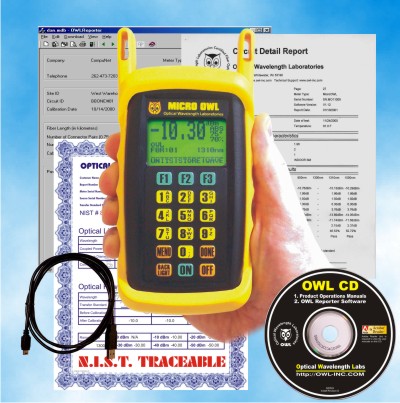

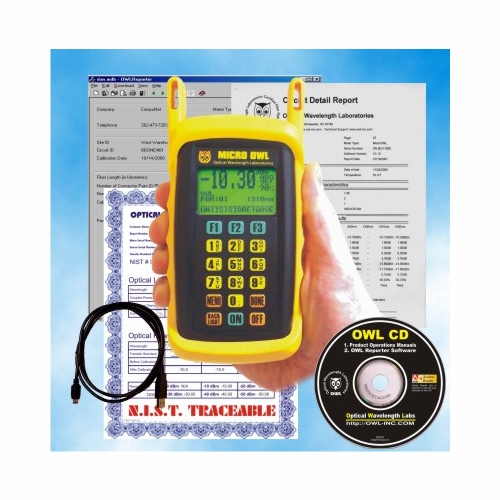

OWL OPTICAL WAVELENGTH LABORATORIES MO-2 Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 optical power meter with data storage NEW
FEATURES: InGaAs photodetector with 2.5mm universal adapter port (for ST, SC, FC, and others) and 1.25mm universal adapter port (for LC, MU, and other SFF) Multimode and singlemode ready Backlit graphic LCD display Long battery life - over 100 hrs on one 9v battery Data storage for 1000 points including run labels, fiber type, and site information including site name, date, reference power values, fiber length, and number of splices and interconnects Auto-wavelength switching when used with OWL OPTICAL WAVELENGTH LABORATORIES WaveSource light sources Built-in loss wizard for calculation of maximum allowable loss values USB interface for continuous data logging, report printing, or data downloading OWL OPTICAL WAVELENGTH LABORATORIES Reporter software for printing formatted fiber certification reports Absolute or relative mode for giving you instant pass/fail results Selectively view, delete or resample data points Charger port (for re-chargeable batteries only) Optional Visual Fault Locator (VFL) port – replaces the charger port
APPLICATIONS: The Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 is a high accuracy, high resolution, microprocessor controlled, optical power meter. The meter has a 75dB dynamic range making it ideal for both single-mode and multimode fiber testing. It has an attractive handheld case with a backlit, graphic, liquid crystal display, and 18-key keypad for easy data entry. It is offered with a 2.5mm universal fiber connector, with a 1.25mm universal cap for LC, MU, and other 1.25mm SFF connectors. It will operate for over 100 hours on a standard 9v battery and has built in auto shutdown. The Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 includes OWL’s user-friendly Link Wizard that helps you easily calculate the allowable loss for the fiber runs that you will be measuring. The meter stores physical fiber information for up to four link configurations which includes link name, date, fiber type, fiber length, connectors, splices, temperature, and calculated or entered reference power values for three wavelengths. In addition the meter will store up to 1000 measured data points with labels. The auto-wavelength switching feature of the Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 allows for convenient dual-wavelength data storage, which helps eliminate human error and cuts down testing time nearly in half. This convenient feature is available when used with OWL OPTICAL WAVELENGTH LABORATORIES WaveSource series fiber optic light sources. The stored information can be selectively viewed, edited (measured again), printed, or deleted. The meter will print formatted reports of selected stored data directly using the built in USB port, or all of the stored data can be downloaded to a computer spreadsheet or our free OWL OPTICAL WAVELENGTH LABORATORIES Reporter software to produce formatted certification reports. A charger port is also included for re-chargeable 9-volt batteries. Optionally, a Visual Fault Locator can be installed in the place of the battery charging port for visual fiber identification or troubleshooting faults in the near-end of a fiber link.
FEATURES: InGaAs photodetector with 2.5mm universal adapter port (for ST, SC, FC, and others) and 1.25mm universal adapter port (for LC, MU, and other SFF) Multimode and singlemode ready Backlit graphic LCD display Long battery life - over 100 hrs on one 9v battery Data storage for 1000 points including run labels, fiber type, and site information including site name, date, reference power values, fiber length, and number of splices and interconnects Auto-wavelength switching when used with OWL OPTICAL WAVELENGTH LABORATORIES WaveSource light sources Built-in loss wizard for calculation of maximum allowable loss values USB interface for continuous data logging, report printing, or data downloading OWL OPTICAL WAVELENGTH LABORATORIES Reporter software for printing formatted fiber certification reports Absolute or relative mode for giving you instant pass/fail results Selectively view, delete or resample data points Charger port (for re-chargeable batteries only) Optional Visual Fault Locator (VFL) port – replaces the charger port
APPLICATIONS: The Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 is a high accuracy, high resolution, microprocessor controlled, optical power meter. The meter has a 75dB dynamic range making it ideal for both single-mode and multimode fiber testing. It has an attractive handheld case with a backlit, graphic, liquid crystal display, and 18-key keypad for easy data entry. It is offered with a 2.5mm universal fiber connector, with a 1.25mm universal cap for LC, MU, and other 1.25mm SFF connectors. It will operate for over 100 hours on a standard 9v battery and has built in auto shutdown. The Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 includes OWL’s user-friendly Link Wizard that helps you easily calculate the allowable loss for the fiber runs that you will be measuring. The meter stores physical fiber information for up to four link configurations which includes link name, date, fiber type, fiber length, connectors, splices, temperature, and calculated or entered reference power values for three wavelengths. In addition the meter will store up to 1000 measured data points with labels. The auto-wavelength switching feature of the Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 allows for convenient dual-wavelength data storage, which helps eliminate human error and cuts down testing time nearly in half. This convenient feature is available when used with OWL OPTICAL WAVELENGTH LABORATORIES WaveSource series fiber optic light sources. The stored information can be selectively viewed, edited (measured again), printed, or deleted. The meter will print formatted reports of selected stored data directly using the built in USB port, or all of the stored data can be downloaded to a computer spreadsheet or our free OWL OPTICAL WAVELENGTH LABORATORIES Reporter software to produce formatted certification reports. A charger port is also included for re-chargeable 9-volt batteries. Optionally, a Visual Fault Locator can be installed in the place of the battery charging port for visual fiber identification or troubleshooting faults in the near-end of a fiber link.
