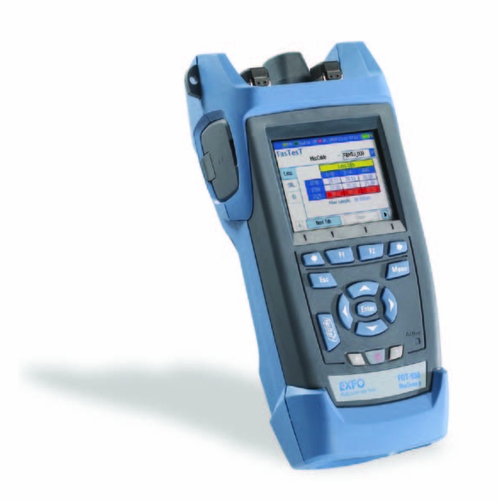

EXFO FOT-930 MAXTESTER SM LASER SOURCE / POWER METER REPAIRED FOT930

EXFO FOT-930 MAXTESTER SM LASER SOURCE / POWER METER REPAIRED FOT930 FasTesTTM: three-wavelength measurement of optical loss, ORL and fiber length in 10 seconds All-in-one portable test solution: up to eight instruments combined in a single, eye-catching handheld package FTTx-ready: allows for the testing of passive optical networks (PONs) at 1310 nm, 1490 nm and 1550 nm, the three wavelengths recommended by the ITU-T (G.983.3) for PONs Cost of ownership: lowest in the industry, thanks to three-year warranty and recommended calibration interval, error-free testing and minimized training time

The new FOT-930 MaxTester Multifunction Loss Tester is designed to help network service providers address CAPEX and OPEX issues, enable installers to easily adapt to all network types, and provide CATV operators with a single-unit solution to their backreflection, fiber-length, high-power and bidirectional loss measurement needs. Combined with its video fiber inspection probe, this unit also enables the easy detection of dirty or damaged connectors, providing a clear view of connectors and fiber ends on the FOT-930’s high-resolution display. With countless configurations available, the FOT-930 MaxTester is the handheld unit of choice for today’s network service providers, fiber-optic network installers/contractors and CATV operators. *Protected by US patent 5,455,672. All-in-one unit: combines up to eight instruments Loss meter Power meter Optical return loss (ORL) meter Visual fault locator Multimode and singlemode light sources Digital talk set Fiber-length meter Video fiber inspection probe FasTesT function*: one-touch, automated measurements in 10 seconds Bidirectional loss and ORL testing at up to three singlemode wavelengths Bidirectional loss testing at two multimode wavelengths Fiber-length measurement Flexible solution: five-wavelength multimode and singlemode configurations meeting the requirements of installers/contractors for all test situations Up to three singlemode wavelengths—1310 nm, 1550 nm and a choice between 1490 nm and 1625 nm—on one port Two multimode wavelengths—850 nm and 1300 nm—on a second port Future-proof: next-generation features meeting the latest industry requirements User-configurable pass/fail thresholds that can be adjusted to different industry standards FTTx-ready, allowing for the testing of passive optical networks (PONs) at 1310, 1490 and 1550 nm, the three ITU-T G.983.3 recommended wavelengths for PONs Cost of ownership: lowest on the market Three-year warranty and recommended calibration interval Error-free testing achieved through visual loss and ORL pass/fail analysis Minimized training time, thanks to a single user interface for the eight instruments included in this all-in-one unit Easy to use and ergonomic: built for today’s fiber-optic test requirements Handy, eye-catching and rugged handheld package High-resolution color display Complete data management and report generation Nine hours power autonomy provided by field-swappable rechargeable batteries
