FHO5000-MD21-LS MM/SM QUAD OTDR, 850/1300 & 1310/1550nm, 19/21 & 35/33dB, VFL, PM, LS, TS
Available*
Item # 53288300
Model # FHO5000-MD21-LS
$4,185.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Otdr
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber OTDR- OSA
Schultz Communications Inc
Fiber OTDR Multi-Single Mode
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
FHO5000-MD21-LS MM/SM QUAD OTDR, 850/1300 & 1310/1550nm, 19/21 & 35/33dB, VFL, PM, LS, TS NEW Dynamic Range: 850/1300nm, 1310/1550nm 19/21dB 35/33dB"
"Event/ Attenuation Dead zone: 0.8M/4M 1M/4M"
"Distance: 4m-240km"
"Sampling point: max 128,000"
"Distance accuracy: ±(1m+measuring distance×3×10-5 +sampling
resolution)"
"Visual Fault Locator and touch screen included"
Power Meter & Light source

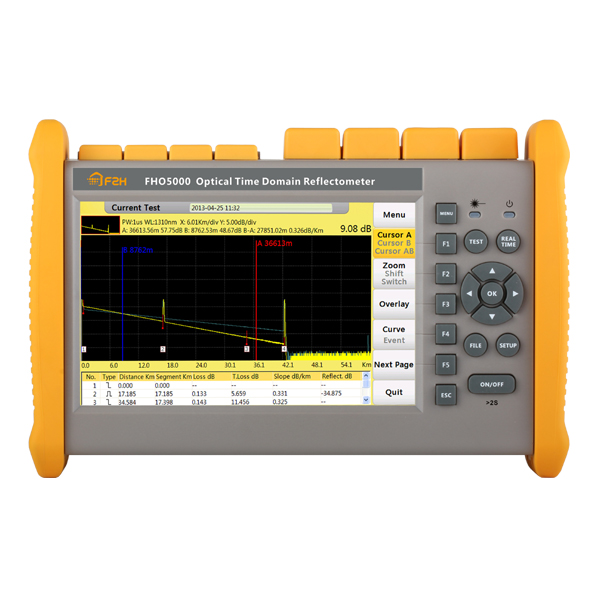

Description FHO5000 series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; FHO5000 is specially designed for that kind of application. It’s economic, having outstanding performance. FHO5000 is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes FHO5000 more smart and compact and multi-purpose. Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, FHO5000 can be your best assistant. FEATURES Integrated design, smart and rugged IP65 protection level, outdoor enhanced 7-inch anti-reflection LCD screen PON online test module (1625nm) is optional MMF test module (850/1300nm) is optional Support multi-language display and input APPLICATIONS FTTX test with PON networks CATV network testing Access network testing LAN network testing Metro network testing Lab and Factory testing Live fiber troubleshooting Ready for all kinds of environment.
FHO5000 series OTDR is specially designed for tough outdoor jobs. IP65 protection level, lightweight, easy operation, low-reflection LCD and more than 12 hours working period make it perfect in field testing. Meanwhile, optional PCB board with water-proof coating helps FHO5000 series OTDR get better protection performance.
What you need is all-in-one! FHO5000 series OTDR is a highly integrated platform that features with four module slots, with a large 7-inch color screen (with a touchscreen option), a high-capacity Lithium-Ion battery, an optional microscope (through universal serial bus [USB] port), and built-in optical test functions, such as PON test module, visual fault locator (VFL), optional power meter and laser source, making it qualified in the installation, turn-up, and maintenance of FTTx/Access optical networks.
Description FHO5000 series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; FHO5000 is specially designed for that kind of application. It’s economic, having outstanding performance. FHO5000 is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes FHO5000 more smart and compact and multi-purpose. Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, FHO5000 can be your best assistant. FEATURES Integrated design, smart and rugged IP65 protection level, outdoor enhanced 7-inch anti-reflection LCD screen PON online test module (1625nm) is optional MMF test module (850/1300nm) is optional Support multi-language display and input APPLICATIONS FTTX test with PON networks CATV network testing Access network testing LAN network testing Metro network testing Lab and Factory testing Live fiber troubleshooting Ready for all kinds of environment.
FHO5000 series OTDR is specially designed for tough outdoor jobs. IP65 protection level, lightweight, easy operation, low-reflection LCD and more than 12 hours working period make it perfect in field testing. Meanwhile, optional PCB board with water-proof coating helps FHO5000 series OTDR get better protection performance.
What you need is all-in-one! FHO5000 series OTDR is a highly integrated platform that features with four module slots, with a large 7-inch color screen (with a touchscreen option), a high-capacity Lithium-Ion battery, an optional microscope (through universal serial bus [USB] port), and built-in optical test functions, such as PON test module, visual fault locator (VFL), optional power meter and laser source, making it qualified in the installation, turn-up, and maintenance of FTTx/Access optical networks.
