PLP SFD-0635-Y SWAN DIVERTER .250-.349 YELLOW *ORDER MINIMUM* 35
Available*
Item # 52932170
Model # SFD-0635-Y
$21.52
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Diverter
Material and Supplies
Hardware- Screws- Bolts
Wildlife Protection
Preformed Line Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Preformed Line Products SFD-0635-Y SWAN DIVERTER .250-.349 YELLOW NEW
The Preformed Line Products SWAN-FLIGHT Diverter is designed for use on conductor/strand to create greater visibility for avian flight paths on overhead lines and tower down guys. Offering little wind resistance, it reduces hazards to both lines and birds. For construction up to 230kV, the SWAN-FLIGHT Diverter can be applied to phase conductors (bare or jacketed). For EHV voltages, it is typically installed on the shield wire. The SWAN-FLIGHT Diverter is lightweight, offers little wind resistance and is easily and quickly applied by hand or hot stick. The positive grip on the conductor ensures that the SWAN-FLIGHT Diverter remains in the applied location and cannot move along the span under Aeolian vibration or other conditions.

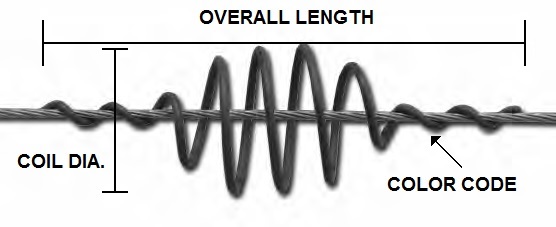

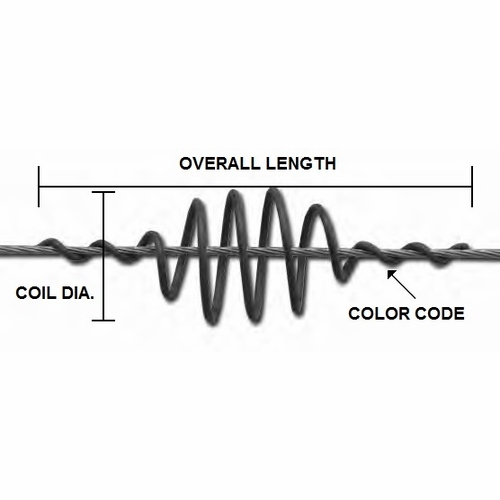

Visibility: -The diverter section increases the visible profile of the cable or conductor to a degree necessary to ensure safety, but avoids an undesirably bulky outline. Materials: -The SWAN-FLIGHT Diverter (SFD) is manufactured from rigid .375" and .500" high impact polyvinyl chloride (PVC) possessing excellent chemical resistance and tensile strength properties. -The SFD will retain good physical characteristics within range of extremetemperatures. -Aging tests confirm the material does not deteriorate in function or appearance from the effects of severe weather conditions. -Industrial fumes and salt water cannot seriously degrade the properties of rigid PVC. Length: -Distance product covers the conductor. Color Code: -Identifies conductor range, corresponding to tabular information on the following page. Color: -YELLOW Material: -Outdoor grade High Impact PVC Coil Diameter: -Outside diameter of diverter coil
The Preformed Line Products SWAN-FLIGHT Diverter is designed for use on conductor/strand to create greater visibility for avian flight paths on overhead lines and tower down guys. Offering little wind resistance, it reduces hazards to both lines and birds. For construction up to 230kV, the SWAN-FLIGHT Diverter can be applied to phase conductors (bare or jacketed). For EHV voltages, it is typically installed on the shield wire. The SWAN-FLIGHT Diverter is lightweight, offers little wind resistance and is easily and quickly applied by hand or hot stick. The positive grip on the conductor ensures that the SWAN-FLIGHT Diverter remains in the applied location and cannot move along the span under Aeolian vibration or other conditions.
Visibility: -The diverter section increases the visible profile of the cable or conductor to a degree necessary to ensure safety, but avoids an undesirably bulky outline. Materials: -The SWAN-FLIGHT Diverter (SFD) is manufactured from rigid .375" and .500" high impact polyvinyl chloride (PVC) possessing excellent chemical resistance and tensile strength properties. -The SFD will retain good physical characteristics within range of extremetemperatures. -Aging tests confirm the material does not deteriorate in function or appearance from the effects of severe weather conditions. -Industrial fumes and salt water cannot seriously degrade the properties of rigid PVC. Length: -Distance product covers the conductor. Color Code: -Identifies conductor range, corresponding to tabular information on the following page. Color: -YELLOW Material: -Outdoor grade High Impact PVC Coil Diameter: -Outside diameter of diverter coil
