LYNN HyperDropGEL™ HDPAS-GEL-SA1-P4 4-Port Indoor/Outdoor Patch & Splice Enclosure w/1M Pigtail
Item # 51570101
Model # HDPAS-GEL-SA1-P
Call for FREE Estimate
CLICK OR DIAL 800-422-4823
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Closure
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Closure
Tyco Telecommunications
Fiber Closure Free Breathing
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

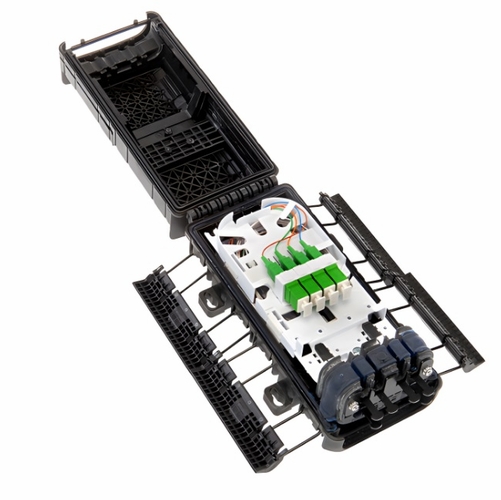

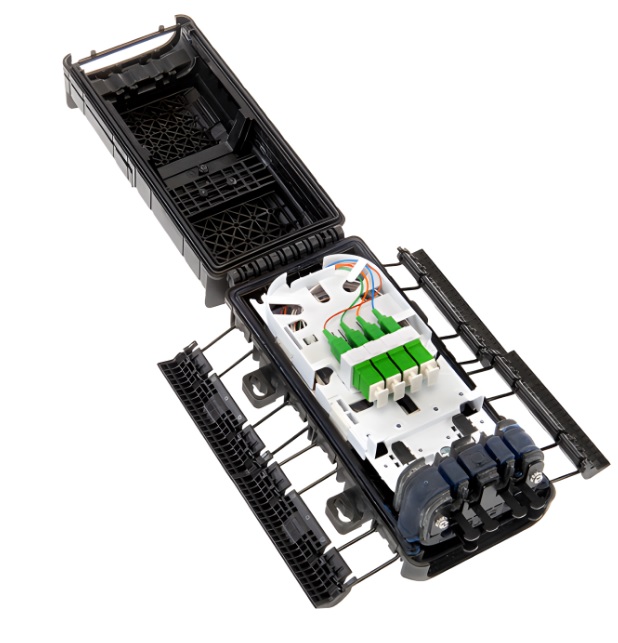

LYNN HyperDropGEL™ HDPAS-GEL-SA1-P4 4-Port Indoor/Outdoor Patch & Splice Enclosure w/1M Pigtail
LYNN HyperDropGEL™ HDPAS-GEL-SA1-P4 4-Port Indoor/Outdoor Patch & Splice Enclosure - IP68 w/1M Pigtail
Item # HDPAS-GEL-SA1-P4 LYNN HyperDropGEL™ 4--Port Indoor/Outdoor Patch & Splice Enclosure - IP68 w/1M Pigtail
Description: HyperDropGEL™ (Patch and Splice), IP68, 2 input/1midspan, 4 output, includes 1 built in splice tray that can hold 24 individual splice sleeves (40mm splice sleeves included), 4 simplex SC/APC adapters and 1M pigtails preinstalled
HDPAS-GEL-SA1-P4 Weight: 1.2 lbs. Dimensions: 8.46 x 4.72 x 2.76 in Material: Glass fiber reinforced polypropylene Color: Black Input Ports: 2 ea, 12 mm maximum diameter Output Ports: 4 ea, 8 mm maximum diameter Splice Capacity: 24 fiber
The LYNN HyperDropGEL™ IP68-rated patch and splicing enclosure secures and manages fiber optic connections in a variety of environments. The all-plastic housing is made from a glass-filled polypropylene blend with UV inhibitors to ensure a long service life in a variety of conditions, and a unique gel-based sealing system ensures waterproof performance in underground and aboveground installations for round and flat drop construction cables. The HyperDropGEL™ securely installs in pole mount, wall mount, aerial suspension and direct burial applications.
Ideal for splitting a trunk or distribution cable in almost all environments IP68-rated for outdoor installation Easy-to-open design with water-tight latching Includes easy-to-see fiber splicing tray Compatible with fiber splice connections and fiber couplers Includes Internal splice tray Splice sleeves PTFE tubes Wall mounting screws Port plugs Insulating foam Cable ties SC/APC adapters (HDPAS-GEL-SA1-P4 and -S4 only) 1-meter pigtail (HDPAS-GEL-SA1-P4 only) 1×4 PLC splitter (HDPAS-GEL-SA1-S4 only)
LYNN HyperDropGEL™ HDPAS-GEL-SA1-P4 4-Port Indoor/Outdoor Patch & Splice Enclosure - IP68 w/1M Pigtail
Item # HDPAS-GEL-SA1-P4 LYNN HyperDropGEL™ 4--Port Indoor/Outdoor Patch & Splice Enclosure - IP68 w/1M Pigtail
Description: HyperDropGEL™ (Patch and Splice), IP68, 2 input/1midspan, 4 output, includes 1 built in splice tray that can hold 24 individual splice sleeves (40mm splice sleeves included), 4 simplex SC/APC adapters and 1M pigtails preinstalled
HDPAS-GEL-SA1-P4 Weight: 1.2 lbs. Dimensions: 8.46 x 4.72 x 2.76 in Material: Glass fiber reinforced polypropylene Color: Black Input Ports: 2 ea, 12 mm maximum diameter Output Ports: 4 ea, 8 mm maximum diameter Splice Capacity: 24 fiber
The LYNN HyperDropGEL™ IP68-rated patch and splicing enclosure secures and manages fiber optic connections in a variety of environments. The all-plastic housing is made from a glass-filled polypropylene blend with UV inhibitors to ensure a long service life in a variety of conditions, and a unique gel-based sealing system ensures waterproof performance in underground and aboveground installations for round and flat drop construction cables. The HyperDropGEL™ securely installs in pole mount, wall mount, aerial suspension and direct burial applications.
Ideal for splitting a trunk or distribution cable in almost all environments IP68-rated for outdoor installation Easy-to-open design with water-tight latching Includes easy-to-see fiber splicing tray Compatible with fiber splice connections and fiber couplers Includes Internal splice tray Splice sleeves PTFE tubes Wall mounting screws Port plugs Insulating foam Cable ties SC/APC adapters (HDPAS-GEL-SA1-P4 and -S4 only) 1-meter pigtail (HDPAS-GEL-SA1-P4 only) 1×4 PLC splitter (HDPAS-GEL-SA1-S4 only)
