Product Description

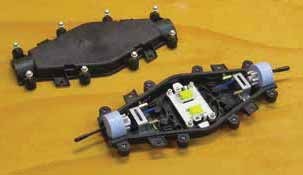

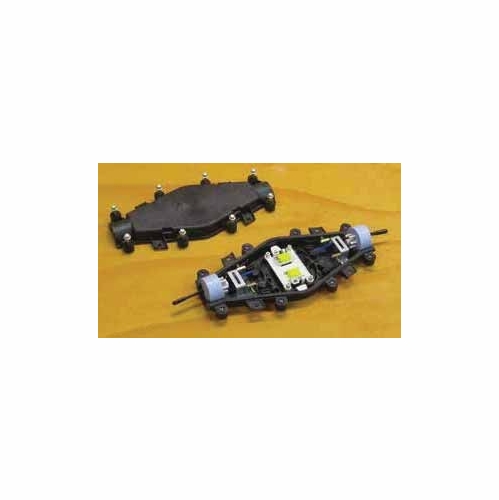

Preformed Line Products Coylccfr-F010 Coyote Lcc W/ Bobbin New
For Single Fusion. Includes: (1) Bobbin Kit, (1) 1-Hole Grommet: Cat. #8003691 And (1) 12-Hole Grommet: Cat. #8003796
Key Features
-Size: 14" L X 6.5" W X 2.4" D (356 Mm X 166 Mm X 62 Mm)
-Max. Splice Capacity: (24) Single Fusion, (72) Ribbon/ Mass Fusion
-Configuration: In-Line Or Butt Splice
-Port Quantity: 2 (1 Each End)
-Application: Direct Buried, Below Grade, Pole/Wall Mount Or Aerial
-A Cost Effective Solution For Quick Restoration Of Damaged/ Cut Fiber Service Drops
-Tested In Accordance To Tr-Nwt-000251 By An Independent Outside Lab
-Available In Flame Retardant Material
-Factory Installed Gasket Allows Re-Entry And Re-Use
-Flexible Grommet Sealing Technology Supports A Wide Range Of Flat Or Round Cable Profiles
-Quick To Assemble, No Special Tools Required
-Flat Shape Allows For Mounting In Small Areas
-Utilizes The Lite-Grip� Splice Block System Which Permits Single Fusion, Mass Fusion, Mechanical, Plc Splitters Or A Combination Of All Within One Closure
***For The Coyote Lcc Flame Retardant Catalog Numbers, Insert "Fr" Into The Catalog Number Code.Read More
