Product Description

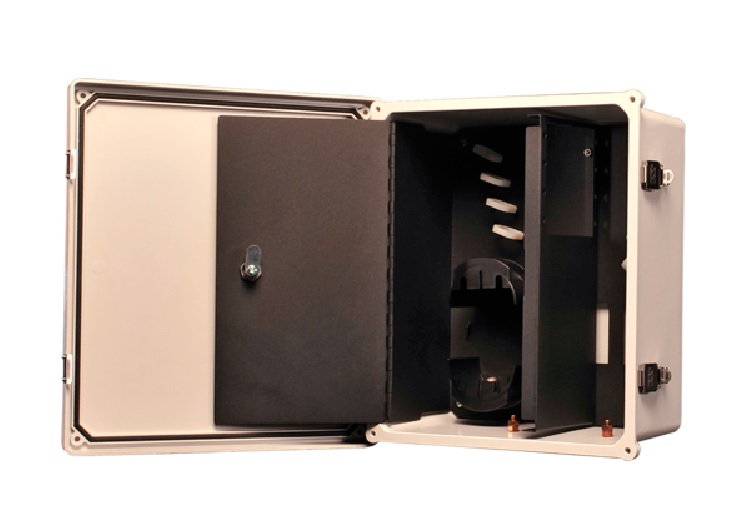

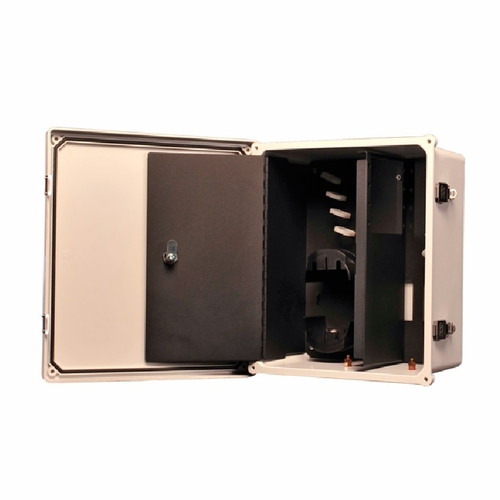

Multilink 045-741-10 Ff-Ocs-4X Wall Mount Nema 1,2,3,4,4X,12, And 13 Rated Wall Mount Fiber Encl
Multilink 045-741-10
Ff-Ocs-4X Wall Mount Nema 1,2,3,4,4X,12, And 13 Rated Wall Mount Fiber Encl
Ff-Ocs-4X
045-741-10
Wall Mounted Nema 1, 2, 3, 4, 4X, 12, And 13 Rated Enclosure With A Single Outer Door And Inner Network Security Door. 4 Panel Termination Capacity And Field Drilled Cable Entries Using Standard Weather Tight Conduit Fittings. The Multilink Series Of Wall Mounted Optical Termination Enclosures Are Designed To Provide Solutions For Both The Interconnection Of Patch Cabling And A Combination Of Patching And Splicing. The Series Accommodates Up To 17 Termination Panels. Depending On The Type Of Optical Termination Panel Used, Enclosures Can Support Up To 288 Terminations. Our Wall Mount Fiber Enclosures Are Separated Into Several Application Specific Groups To Support The Level Of Termination Capacity And Feature Sets Required For The Enclosure'S Mount Location.
General Specifications
Additional Kit Npt Cable Entrance Kit (065-016-10)
Capacity (4) Panels
Physical Specifications
Width 13.85"
Height 15.84"
Depth 6.79"
Material Impact And Weather Resistant Plastic
Splice Tray Specifications
Splice Tray (4) 1120-SstpRead More
