Item# 51297280

GenericClassGroupTypeManufacturerLOT
PATCHCORDFiber Optic ProductsFiber Optic InfrastructureFiber Patch CablesMULTILINKFiber Single Mode
CA Prop 65 Warning Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Product Description

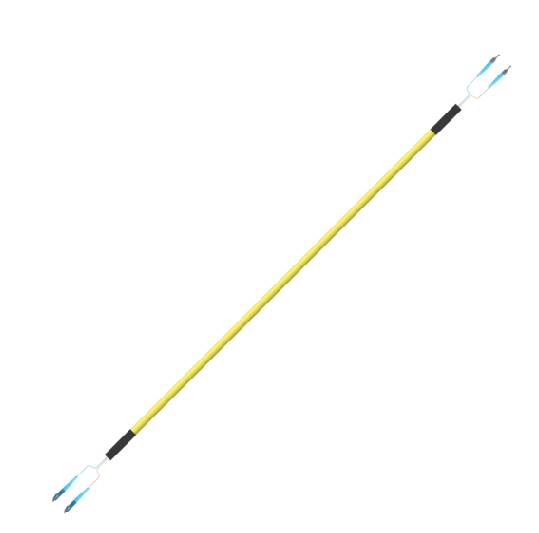

Multilink 10-6392-Ml Jumper, Duplex, St/Upc - Sc/Upc, 3.0Mm, 3Meter Fiber Jumpers

Multilink 10-6392-Ml Jumper, Duplex, St/Upc - Sc/Upc, 3.0Mm, 3Meter Fiber Jumpers

Fiber Optic Jumper 10-6392-Ml Fiber Optic Jumper, 2 Fiber Duplex Zipcord Sc/Upc To St/Upc, Tight Buffered Cable, Riser Rated, 3.0Mm, Singlemode 9/125Um, Bend Insensitive

General Specifications Outer Jacket Color Yellow Fiber Count 2 Cable Assesmbly Type Duplex Fiber Nominal Outer Diameter 3.6Mm Cable Length 3 Meter Polish #1 Upc Application Riser Rated General Building Applications Indoor Horizontal Flame Rating Riser Rated Ofnr Polish #2 Upc

Fiber Specifications Cable Type Singlemode 3.0Mm Duplex Zipcord 9/125m Tight Buffered Bend Insensitive G657 A1 Fiber Category Singlemode (Os1) Reflectance, Typical #2 < -58 Db Reflectance, Typical #1 < -58 Db Insertion Loss Typical 0.12 Db

Connector Specifications Connector Type Sc/Upc St/Upc Housing Material Metal Composite Boot Color Blue Housing Color Blue N/A Ferrule Material Zirconia
