Multilink 10-6189-ML Jumper, Duplex, SC - LC, 3.0mm, 62.5, 1meter FIBER JUMPERS
Item # 51296460
Model # 10-6189-ML
Call for FREE Estimate
CLICK OR DIAL 800-422-4823
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Patchcord
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Patch Cables
Multilink
Fiber Multimode
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 10-6189-ML Jumper, Duplex, SC - LC, 3.0mm, 62.5, 1meter FIBER JUMPERS
Multilink 10-6189-ML Jumper, Duplex, SC - LC, 3.0mm, 62.5, 1meter FIBER JUMPERS

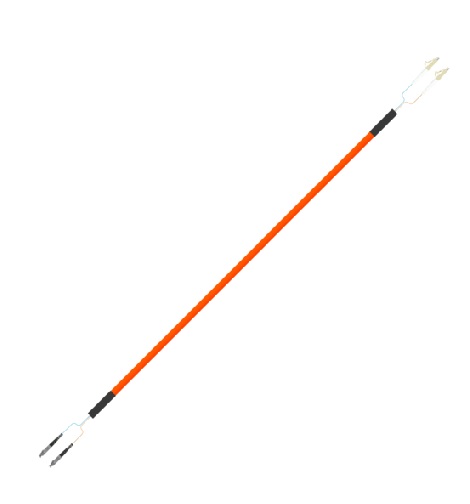

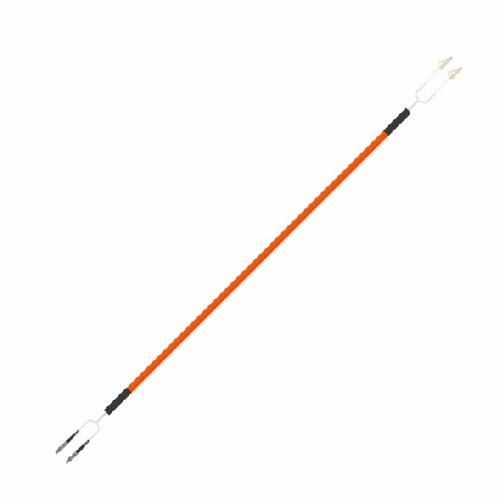

Fiber Optic Jumper 10-6189-ML Fiber Optic Jumper, 2 Fiber Duplex Zipcord SC/UPC to LC/UPC, Tight Buffered Cable, Riser Rated, 3.0mm, Multimode 62.5/125um, OM1
General Specifications Polish #1 UPC Nominal Outer Diameter 3.6mm Outer Jacket Color Orange Polish #2 UPC Application Riser Rated Indoor Vertical General Building Applications Cable Length 1 Meter Reflectance, Typical #2 < -45 dB Cable Assesmbly Type Duplex Fiber Fiber Count 2 Flame Rating Riser Rated OFNR
General Specifications Reflectance, Typical #1 < -45 dB
Fiber Specifications Cable Type Multimode 3.0mm Duplex Zipcord 62.5/125µm Tight Buffered Fiber OM1 Fiber Category Multimode (OM1) Insertion Loss Typical 0.20 dB
Connector Specifications Connector Type SC/UPC LC/UPC Ferrule Material Zirconia Boot Color White Black Housing Material Composite Housing Color Beige
Multilink 10-6189-ML Jumper, Duplex, SC - LC, 3.0mm, 62.5, 1meter FIBER JUMPERS
Fiber Optic Jumper 10-6189-ML Fiber Optic Jumper, 2 Fiber Duplex Zipcord SC/UPC to LC/UPC, Tight Buffered Cable, Riser Rated, 3.0mm, Multimode 62.5/125um, OM1
General Specifications Polish #1 UPC Nominal Outer Diameter 3.6mm Outer Jacket Color Orange Polish #2 UPC Application Riser Rated Indoor Vertical General Building Applications Cable Length 1 Meter Reflectance, Typical #2 < -45 dB Cable Assesmbly Type Duplex Fiber Fiber Count 2 Flame Rating Riser Rated OFNR
General Specifications Reflectance, Typical #1 < -45 dB
Fiber Specifications Cable Type Multimode 3.0mm Duplex Zipcord 62.5/125µm Tight Buffered Fiber OM1 Fiber Category Multimode (OM1) Insertion Loss Typical 0.20 dB
Connector Specifications Connector Type SC/UPC LC/UPC Ferrule Material Zirconia Boot Color White Black Housing Material Composite Housing Color Beige
