Product Description

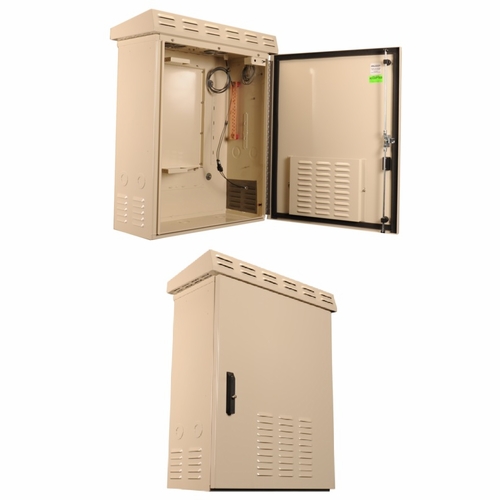

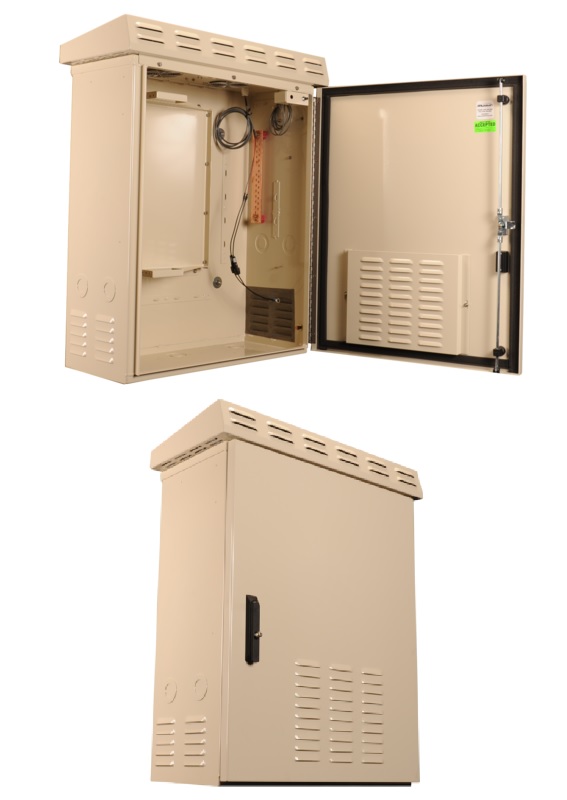

Multilink 030-264-20 5Ru Enclosure W/Verticle Swing Out Rack And Service Entrance Wall Mount 5Ru
Multilink 030-264-20
5Ru Enclosure W/Verticle Swing Out Rack And Service Entrance Wall Mount 5Ru
5Ru Enclosure W/ Vertical Swing Out Rack And Service Ent.
030-264-20
General Specifications
Hardware Stainless Steel
Door
3 Point Latch
Piano Hinge
Heating & Cooling Dual 100Cfm Fans
Powering 70Amp-120Vac Service Entrance, 20 Amp Circuit Breaker, Surge Protector, (2) Duplex Receptacle, 125V, 20A Ground Bar
Uom Each
Cable Entrance
(2) Dual Stage Knockouts 1.38-2.47" Ea. Side
(7) Dual Stage Knockouts 1.38-2.47" Bottom
Physical Specifications
Width 31.7
Height 36.12"
Depth 14"
Weight 85 Lbs
Color Beige
Main Body 1/8" Aluminum
Finish Polyester Powder Coat
Grounding
All Components Are Grounded To The Main
Bus Bar
Mechanical Specifications
Mounting Wall
Rack Specifications
Rack Width 19"
Rack Units 5Ru
Rack Threads 10 - 32 Eia/Tia Spacing
