Multilink 030-129-20 Opto-Electronic Enclosure, Environmentally Controlled (w/ A/C) Opto-Electronic
Item # 51295005
Model # 030-129-20
Call for FREE Estimate
CLICK OR DIAL 800-422-4823
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Cabinet
Material and Supplies
Cabinets- Splice Centers
Cross Connect Cabinets
Multilink
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 030-129-20 Opto-Electronic Enclosure, Environmentally Controlled (w/ A/C) Opto-Electronic
Multilink 030-129-20 Opto-Electronic Enclosure, Environmentally Controlled (w/ A/C) Opto-Electronic

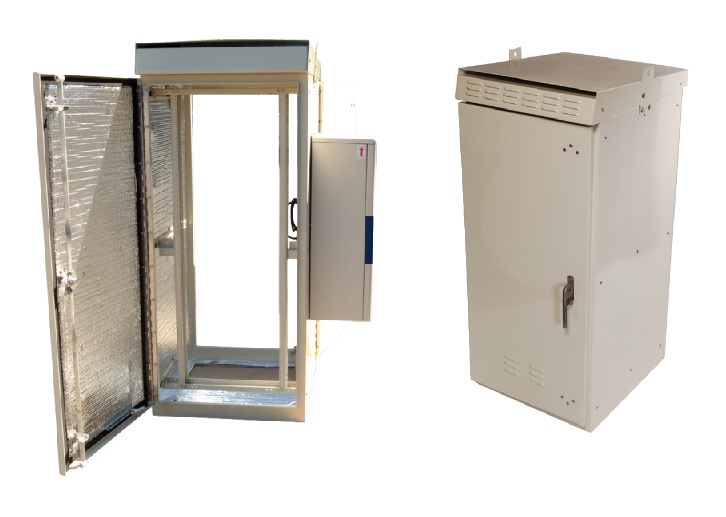

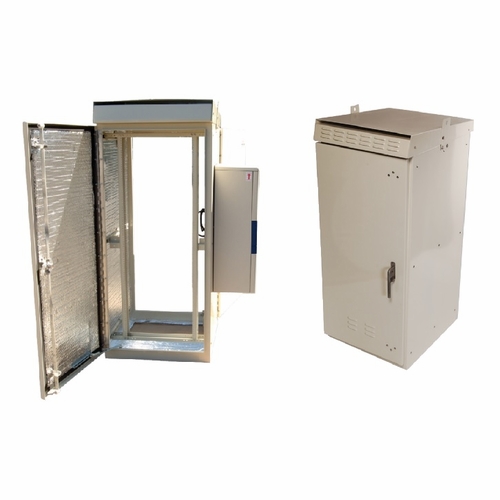

Opto-Electronic Enclosure w/ A/C Unit & Service Entrance 030-129-20
General Specifications Cable Entrance 14" x 24" Rectangle Opening On Bottom Rear Hardware Stainless Steel Door 3 Point Latch Piano Hinge Light Control Switch Wind Stop Front and Back Heating & Cooling Ventilation Louvers On Bottom Of Both Doors Backed By Bug Screen Sloped Roof w/ Ventilation Louvers Backed By Bug Screen Solar Shield Protecting Roof Fan Shelf, 1RU, (6) 100 CFM Fans Mounted On Rack at Top (744-386-20) 120Vac, 15A Breaker, 10ft Cord Powering Customer To Supply 120/240VAC (3) Duplex Receptacle GFCI, 15A, 125VAC, 60Hz (1) Light, 18", 15W, 120VAC (F15-T8-CW/TSC) Controlled By Door Switch UOM Each
Physical Specifications Width 28" Height 65.5" Depth 33" Weight 270 lbs Color Beige Main Body Aluminum Finish Polyester Powder Coat
Mechanical Specifications Mounting Ground
Rack Specifications Rack Width 19" - 23" Rack Units 29RU Rack Threads 10 - 32 EIA/TIA Spacing
Multilink 030-129-20 Opto-Electronic Enclosure, Environmentally Controlled (w/ A/C) Opto-Electronic
Opto-Electronic Enclosure w/ A/C Unit & Service Entrance 030-129-20
General Specifications Cable Entrance 14" x 24" Rectangle Opening On Bottom Rear Hardware Stainless Steel Door 3 Point Latch Piano Hinge Light Control Switch Wind Stop Front and Back Heating & Cooling Ventilation Louvers On Bottom Of Both Doors Backed By Bug Screen Sloped Roof w/ Ventilation Louvers Backed By Bug Screen Solar Shield Protecting Roof Fan Shelf, 1RU, (6) 100 CFM Fans Mounted On Rack at Top (744-386-20) 120Vac, 15A Breaker, 10ft Cord Powering Customer To Supply 120/240VAC (3) Duplex Receptacle GFCI, 15A, 125VAC, 60Hz (1) Light, 18", 15W, 120VAC (F15-T8-CW/TSC) Controlled By Door Switch UOM Each
Physical Specifications Width 28" Height 65.5" Depth 33" Weight 270 lbs Color Beige Main Body Aluminum Finish Polyester Powder Coat
Mechanical Specifications Mounting Ground
Rack Specifications Rack Width 19" - 23" Rack Units 29RU Rack Threads 10 - 32 EIA/TIA Spacing
