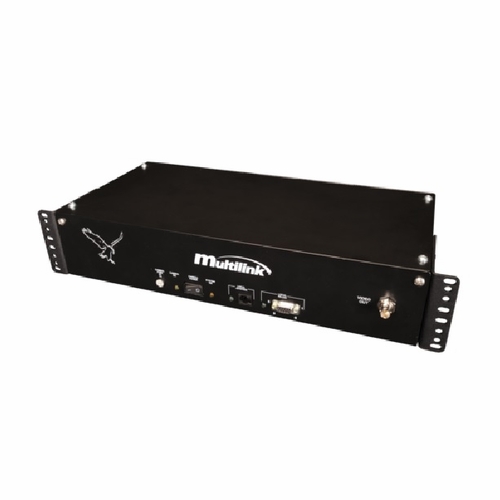

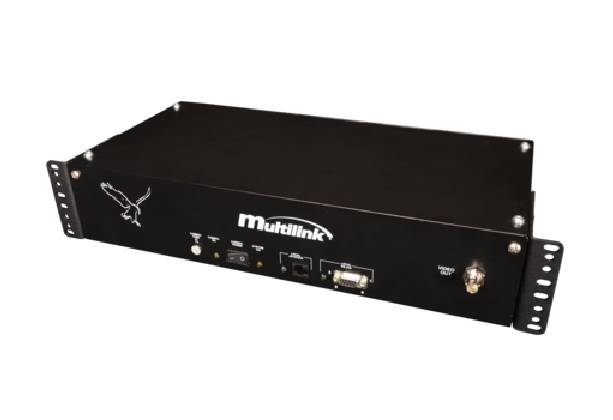

Multilink 018-039-20 Camera Control Interface
Multilink 018-039-20 Camera Control Interface
UL Camera Control Interface 018-039-20 Provides integrated functionality in powering and controlling a video camera at remote locations. Controlled using joystick or remotely using R2- 232/485.
General Specifications Frequency 60Hz ±3Hz LED Display Four LEDs on front panel indicate operational status Amber: SYSTEM ON Red: CAMERA ON (2) Green: LOCAL ON (Joystick or RS232) Input Power 100 VA; 115 Watts, max Mounting Dimensions 18.25-inch mounting centers 19-inch rack mountable EIA/TIA Spacing Input Protection 1.5 Amp, 250 volt, slow blow, glass type fuse Output Protection 4 A, 250 V type AGC-2 fuse (1/4" x 1-1/4" glass tube fuse)
General Specifications Efficiency Better than 90% over line voltage range, at full load Output Specifications Output Current 4 A
Physical Specifications Width 17.0" Height 3.5" Depth 8.5" Weight 13 lbs. AC Input Specifications AC Input Voltage 120 Vac, nominal; single-phase only AC Input Current 1 A @ 120 Vac Line Voltage Tolerance 105 to 125 Vac AC Output Specifications Output Voltage 24 Vac camera power Output Power 96 VA Environmental Specifications Operating Temperature -40°C to +60°C (-40°F to +140°F) @ 5% to 95% relative humidity, non-condensing
