Multilink 020-026-10 MRS-6TB-lw Slack Storage Box knockouts for MRM75, MRC75, MRM12, & MRC12 LINEN
Available*
Item # 51292095
Model # 020-026-10
$13.96
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Raceway
Fiber Optic Products
Duct- Conduit
Raceway- Trays- Cable
Multilink
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 020-026-10 MRS-6TB-lw Slack Storage Box knockouts for MRM75, MRC75,MRM12, & MRC12 LINEN
Multilink 020-026-10 MRS-6TB-lw Slack Storage Box knockouts for MRM75, MRC75, MRM12, & MRC12 LINEN

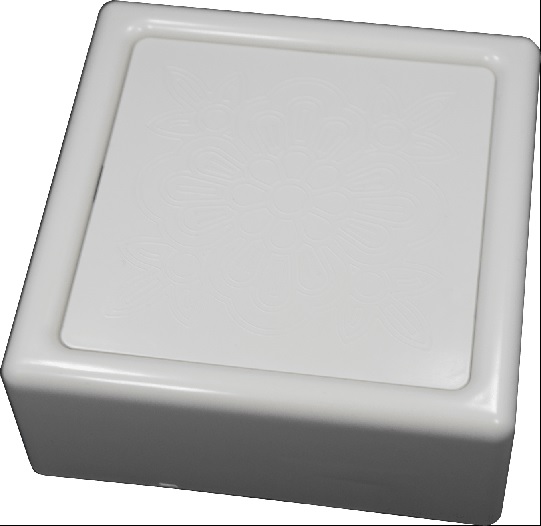

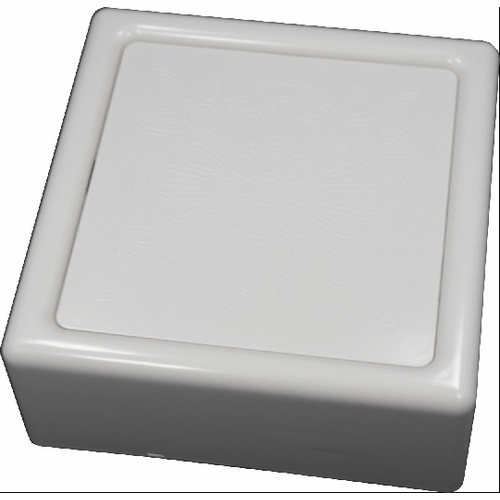

Slack Storage Box w/Knockouts 020-026-10 5.00"L x 5.00"W x 2.00"D. Multilink’s OSP slack storage box is ideal for exterior slack storage applications using small diameter fiber cable. There are two stackable storage spools that allow storage of multiple single fiber cable drops. Both of these spools are removable, which allows additional storage under the spool. This includes three entry points sealed with removable cap plugs, or it can be ordered without holes. The diameter of each entry hole is 1". The box is equipped with a hex bolt, including a retainer that can be secured using a standard 216C type wrench. In addition to the above, the box is also equipped with a provision for a hasp lock. A built-in hinge allows captive and non-captive flexibility.
General Specifications Chemical Resistance Retains a minimum of 50% of tensile strength after 30 day exposure to 3% H2SO4, .2N NaOH, NH3, 90% Alcohol, Kerosene, 10% lgepal Fungus Resistance ASTM G21 Zero Rating Per GR 3126 Requirement Crush Resistance 300 lbs. per GR3126 Requirement UOM Each Warranty 1 Year Defects In Workmanship
General Specifications Installation Temperature Range -18°C to 45°C (0°F to 113°F)
Physical Specifications Dimensions 5.00" x 5.00" x 2.00" Color Linen White Material Rigid Flexible PVC
Environmental Specifications Operating Temperature -18°C to 58°C (0°F to 136°F)
Multilink 020-026-10 MRS-6TB-lw Slack Storage Box knockouts for MRM75, MRC75, MRM12, & MRC12 LINEN
Slack Storage Box w/Knockouts 020-026-10 5.00"L x 5.00"W x 2.00"D. Multilink’s OSP slack storage box is ideal for exterior slack storage applications using small diameter fiber cable. There are two stackable storage spools that allow storage of multiple single fiber cable drops. Both of these spools are removable, which allows additional storage under the spool. This includes three entry points sealed with removable cap plugs, or it can be ordered without holes. The diameter of each entry hole is 1". The box is equipped with a hex bolt, including a retainer that can be secured using a standard 216C type wrench. In addition to the above, the box is also equipped with a provision for a hasp lock. A built-in hinge allows captive and non-captive flexibility.
General Specifications Chemical Resistance Retains a minimum of 50% of tensile strength after 30 day exposure to 3% H2SO4, .2N NaOH, NH3, 90% Alcohol, Kerosene, 10% lgepal Fungus Resistance ASTM G21 Zero Rating Per GR 3126 Requirement Crush Resistance 300 lbs. per GR3126 Requirement UOM Each Warranty 1 Year Defects In Workmanship
General Specifications Installation Temperature Range -18°C to 45°C (0°F to 113°F)
Physical Specifications Dimensions 5.00" x 5.00" x 2.00" Color Linen White Material Rigid Flexible PVC
Environmental Specifications Operating Temperature -18°C to 58°C (0°F to 136°F)
