Multilink 020-305-30 Starfighter LC Splice Enclosure w/(2) Splice Trays Starfighter LC (Low Count)
Available*
Item # 51291695
Model # 020-305-30
$75.84
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Closures
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Closure
Multilink
Fiber Closure Free Breathing
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

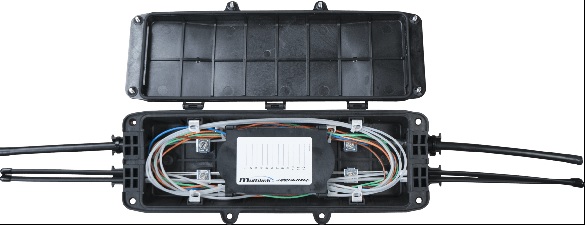

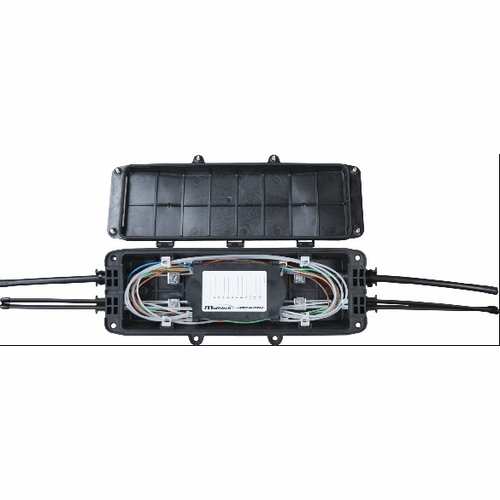

Multilink 020-305-30 Starfighter LC Splice Enclosure w/(2) Splice Trays Starfighter LC (Low Count)
Multilink 020-305-30 Starfighter LC Splice Enclosure w/(2) Splice Trays Starfighter LC (Low Count)
Non-captive low count splice closure w/ 2 splice trays
The Starfighter™ LC is ideal for low count installations. It is designed to accommodate both patching and splicing applications. It has the capability to house up to (3) 24 fiber splice trays which give it a 72 fiber count maximum, and interchangeable grommets allow it to accommodate up to 12 drop installations as well. Mounting capabilities include wall, pole, aerial and pedestal.
General Specifications Burial Below grade rating/Vault compatible Input Ports (4) Non-Captive Grommets Features Compression Sealed Re-Enterable
Physical Specifications Dimensions 16.61"W x 5.88"H x 2.86"D Weight 3.1 lbs. (Without incoming fiber) Color Black Material UV Stabilized Plastic
Mechanical Specifications Mounting Wall Pole Aerial Pedestal
Splice Tray Specifications Splice Tray 12-SSTP Splice Tray Capacity 3 Splice Trays Included 2
Safety Standard Specifications Safety Standard Designed to GR-771 Tested to IP68
Multilink 020-305-30 Starfighter LC Splice Enclosure w/(2) Splice Trays Starfighter LC (Low Count)
Non-captive low count splice closure w/ 2 splice trays
The Starfighter™ LC is ideal for low count installations. It is designed to accommodate both patching and splicing applications. It has the capability to house up to (3) 24 fiber splice trays which give it a 72 fiber count maximum, and interchangeable grommets allow it to accommodate up to 12 drop installations as well. Mounting capabilities include wall, pole, aerial and pedestal.
General Specifications Burial Below grade rating/Vault compatible Input Ports (4) Non-Captive Grommets Features Compression Sealed Re-Enterable
Physical Specifications Dimensions 16.61"W x 5.88"H x 2.86"D Weight 3.1 lbs. (Without incoming fiber) Color Black Material UV Stabilized Plastic
Mechanical Specifications Mounting Wall Pole Aerial Pedestal
Splice Tray Specifications Splice Tray 12-SSTP Splice Tray Capacity 3 Splice Trays Included 2
Safety Standard Specifications Safety Standard Designed to GR-771 Tested to IP68
