Product Description

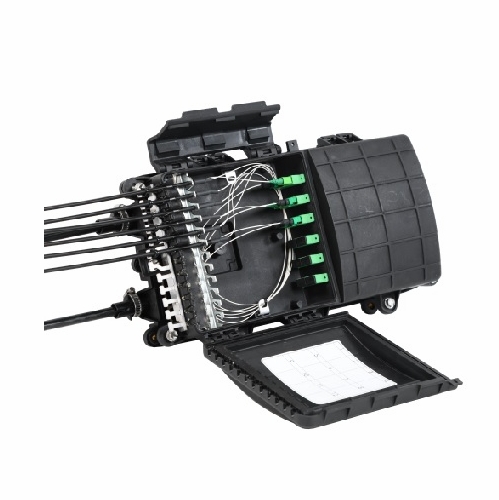

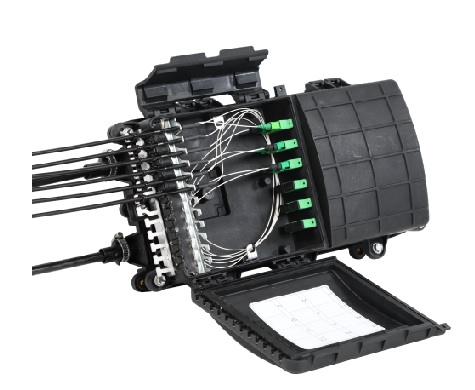

Multilink 020-349-10 Optima-S Sc/Apc Term Splice 4-Pos Encl W/(1) Splice Tray, (2) Plug Grommets & (
Multilink 020-349-10
Optima-S Sc/Apc Term Splice 4-Pos Encl W/(1) Splice Tray, (2) Plug Grommets &
4 Port Termination W/ Splicing Capabilities
Ops
The Optima-S Optical Cross Connect Terminal Offers The Fastest Hook Up And Disconnect Of Any Drop Cable Field Connection. The Optima-S Utilized Computer
Aided Engineering For Optimal Use In The Outside Plant And Fttx Networks.
It Utilizes A Specially Designed Precision Cost Effective Drop System With Standard Bulkhead Adapters. The Optima-S Brings Subscriber Terminal Deployment To A New Level For Field Installations. Has Provisions For An Expandable Feed Through Capability
To Other Optima-S Terminal Devices.
General Specifications
Feeder Cable Compatibility
Round Cable
Flat Cable
Physical Specifications
Dimensions 14.83"W X 8.25"H X 4.38"D
Color Black
Material Uv Stabilized Plastic
Feeder Ports 2
Output Ports 4
Mechanical Specifications
Mounting
Wall
Pole
Pedestal
Strand
Splice Tray Specifications
Splice Tray Capacity 2
Splice Capacity 24 - Per Tray
Safety Standard Specifications
Safety Standard Designed To Gr-771Read More
