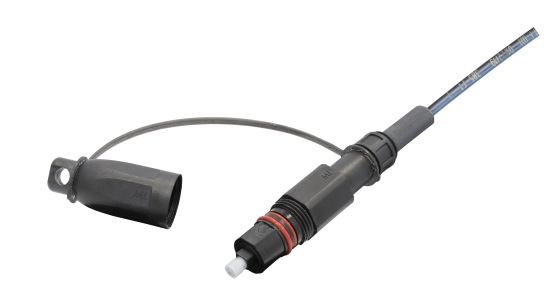

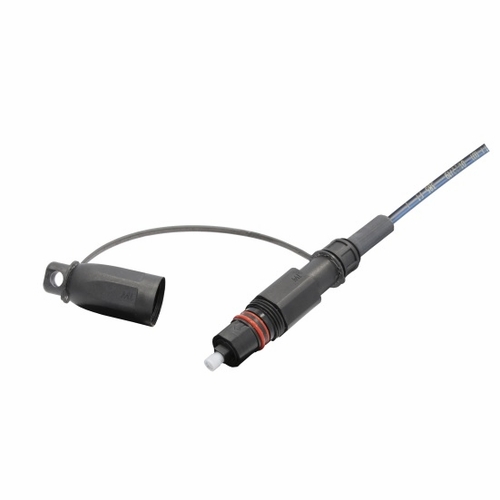

Multilink 066-458-85 KIT CONN SC/APC H IP SPEEDFLEX FIELD INSTALLABLE COMPRESSION SEAL W/O FIXTURE
Available*
Item # 51291620
Model # 066-458-85
$17.48
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Connectors
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Mechanical- Glue On Connector
Multilink
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 066-458-85 KIT CONN SC/APC H IP SPEEDFLEX FIELD INSTALLABLE COMPRESSION SEAL W/O FIXTURE
Multilink 066-458-85 KIT CONN SC/APC H IP SPEEDFLEX FIELD INSTALLABLE COMPRESSION SEAL W/O FIXTURE
SC/APC Compression Seal, SpeedFlex®
General Specifications Cable Flexing 90° Flexing for 8 Cycles. 10 Lbf (Results: Max IL<0.5 dB, IL<0.3 dB, RL<5 dB) Water Resistance IP68 Minimum Bend Radius 80mm (3.15 in) Tensile Strength Elements and/or Armoring - Layer 1 Dielectric Strength Members Environment Outdoor Installation Temperature Range - 30°C to 70°C (-22°F to 158°F) Cable Torsion 10 Cycle of Torsion Loading Max. Tensile Strength Short Term: 1350 N (300 Lbf) Product Type Field Installable Connector
Fiber Specifications Fiber Category Singlemode (OS2) Cable Compatibility SpeedFlex® Reflectance, Typical #1 < -65 dB Insertion Loss Typical 0.3 dB - 0.65 dB
Connector Specifications Connector Type SC/APC Polish APC
Testing Specifications Impact Test 5-15 ft. Drop
Environmental Specifications Storage Temperature Range - 40°C to 70°C (-40°F to 158°F) Operating Temperature - 40° C to 70° C (-40° F to 158° F)
Multilink 066-458-85 KIT CONN SC/APC H IP SPEEDFLEX FIELD INSTALLABLE COMPRESSION SEAL W/O FIXTURE
SC/APC Compression Seal, SpeedFlex®
General Specifications Cable Flexing 90° Flexing for 8 Cycles. 10 Lbf (Results: Max IL<0.5 dB, IL<0.3 dB, RL<5 dB) Water Resistance IP68 Minimum Bend Radius 80mm (3.15 in) Tensile Strength Elements and/or Armoring - Layer 1 Dielectric Strength Members Environment Outdoor Installation Temperature Range - 30°C to 70°C (-22°F to 158°F) Cable Torsion 10 Cycle of Torsion Loading Max. Tensile Strength Short Term: 1350 N (300 Lbf) Product Type Field Installable Connector
Fiber Specifications Fiber Category Singlemode (OS2) Cable Compatibility SpeedFlex® Reflectance, Typical #1 < -65 dB Insertion Loss Typical 0.3 dB - 0.65 dB
Connector Specifications Connector Type SC/APC Polish APC
Testing Specifications Impact Test 5-15 ft. Drop
Environmental Specifications Storage Temperature Range - 40°C to 70°C (-40°F to 158°F) Operating Temperature - 40° C to 70° C (-40° F to 158° F)
