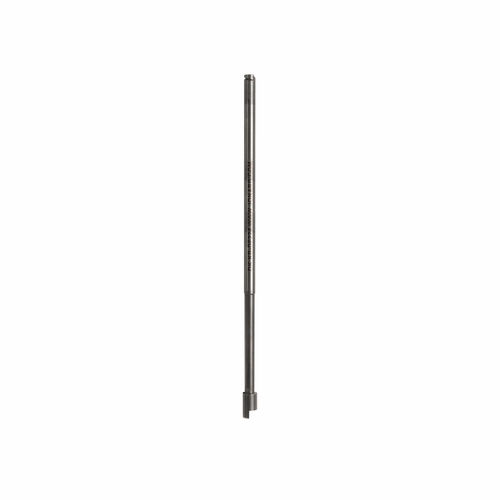

JONARD KB-DF224 Wrap/Unwrap Bit, 22-24 Awg 811490013179
Available*
Item # 38280610
Model # KB-DF224
$74.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Bits 22-24
Tools
Hand Tools
Wire Wrapping- Frame- Block
Jonard Industries Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
JONARD KB-DF224 Wrap/Unwrap Bit, 22-24 Awg 811490013179
Designed to work with our P-DF2426 Replacement Sleeve Assembly and PTX series tools, this wrap/unwrap bit is perfect for wrapping or unwrapping 22-24 AWG wire. This bit features the following:
Precision machined for high-quality wire wrapping in the clockwise direction and unwrapping in the counterclockwise direction Maximizes the efficiency of wire wrapping and unwrapping 22-24 AWG wires, while eliminating the need to purchase or carry other extra tools for unwrapping Wire Gauge Wire Gauge: 22-24 AWG (0.64 mm-0.51 mm)
22-24 AWG (0.64 mm-0.51 mm) 24-26 AWG (0.51 mm-0.40 mm)
Specifications Wrap Function Wrap, Unwrap
Wire Gauge 22-24 AWG (0.65-0.50 mm)
Minimum Terminal Diagonal 0.054" (1.37 mm)
Maximum Terminal Diagonal 0.073" (1.85 mm)
Terminal Hole Depth 0.50" (12.70 mm)
Terminal Hole Diameter 0.075" (1.9 mm)
Effective Radius 0.111" (2.82 mm)
Weight 0.119 lbs (53.98g)
UPC No. 811490013179
Designed to work with our P-DF2426 Replacement Sleeve Assembly and PTX series tools, this wrap/unwrap bit is perfect for wrapping or unwrapping 22-24 AWG wire. This bit features the following:
Precision machined for high-quality wire wrapping in the clockwise direction and unwrapping in the counterclockwise direction Maximizes the efficiency of wire wrapping and unwrapping 22-24 AWG wires, while eliminating the need to purchase or carry other extra tools for unwrapping Wire Gauge Wire Gauge: 22-24 AWG (0.64 mm-0.51 mm)
22-24 AWG (0.64 mm-0.51 mm) 24-26 AWG (0.51 mm-0.40 mm)
Specifications Wrap Function Wrap, Unwrap
Wire Gauge 22-24 AWG (0.65-0.50 mm)
Minimum Terminal Diagonal 0.054" (1.37 mm)
Maximum Terminal Diagonal 0.073" (1.85 mm)
Terminal Hole Depth 0.50" (12.70 mm)
Terminal Hole Diameter 0.075" (1.9 mm)
Effective Radius 0.111" (2.82 mm)
Weight 0.119 lbs (53.98g)
UPC No. 811490013179
